Bumpers - Round - Large - Steel Core - Tapped - Inch (RB)

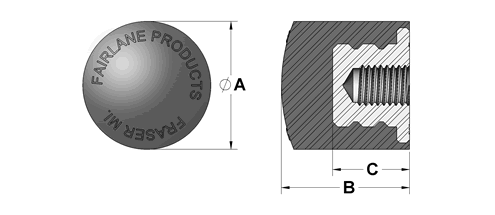

Drawing
Description
Media

Description

Used for stops, guides, bumpers and protection. Molded bumper bonded to steel core for durability. Neoprene offers good resistance against weather, gasoline, oil, ozone and high temperature. Urethane offers highest resistance, strength and load bearing. High elongation hardness and is resistant to ozone and oxygen. Nitrile is chemical resistant and non-marring.

Bumper Material Information

RB-3

Large Round Bumper - 40 Dur Neoprene - 3/8-16 X 1/2 in

Part Details
CAD

Part Number	Model Name	SKU	Description	Brand	Product ID	CAD Model Link	0	1	2	3	4	5	6
RB-3	RB-3	RB-3	Large Round Bumper - 40 Dur Neoprene - 3/8-16 X 1/2 in	1	110845	CAD	1-1/4	1-1/4	3/4	40	3/8-16	1/2	Neoprene
RB-4	RB-3	RB-4	Large Round Bumper - 40 Dur Neoprene - 3/8-24 X 1/2 in	1	110891	CAD	1-1/4	1-1/4	3/4	40	3/8-24	1/2	Neoprene
RB-5	RB-3	RB-5	Large Round Bumper - 40 Dur Neoprene - 1/2-13 X 1/2 in	1	110967	CAD	1-1/4	1-1/4	3/4	40	1/2-13	1/2	Neoprene
RB-6	RB-3	RB-6	Large Round Bumper - 40 Dur Neoprene - 1/2-20 X 1/2 in	1	111149	CAD	1-1/4	1-1/4	3/4	40	1/2-20	1/2	Neoprene
RB-7	RB-3	RB-7	Large Round Bumper - 40 Dur Neoprene - 7/16-20 X 1/2 in	1	111188	CAD	1-1/4	1-1/4	3/4	40	7/16-20	1/2	Neoprene
RB-8	RB-3	RB-8	Large Round Bumper - 40 Dur Neoprene - 5/8-18 X 1/2 in	1	111214	CAD	1-1/4	1-1/4	3/4	40	5/8-18	1/2	Neoprene
RB-9	RB-3	RB-9	Large Round Bumper - 40 Dur Neoprene - 5/8-11 X 5/8 in	1	111247	CAD	1-3/4	1-5/8	7/8	40	5/8-11	5/8	Neoprene
RB-10	RB-3	RB-10	Large Round Bumper - 40 Dur Neoprene - 5/8-18 X 5/8 in	1	110663	CAD	1-3/4	1-5/8	7/8	40	5/8-18	5/8	Neoprene
RB-12	RB-3	RB-12	Large Round Bumper - 40 Dur Neoprene - 3/4-10 X 1 in	1	110696	CAD	2-1/4	2-1/4	1-3/8	40	3/4-10	1	Neoprene
RB-13	RB-3	RB-13	Large Round Bumper - 40 Dur Neoprene - 3/4-16 X 1 in	1	110730	CAD	2-1/4	2-1/4	1-3/8	40	3/4-16	1	Neoprene
RB-14	RB-3	RB-14	Large Round Bumper - 40 Dur Neoprene - 1-8 X 1 in	1	110762	CAD	2-1/4	2-1/4	1-3/8	40	1-8	1	Neoprene
RB-3W	RB-3	RB-3W	Large Round Bumper - 40 Dur Nitrile - 3/8-16 X 1/2 in	1	110887	CAD	1-1/4	1-1/4	3/4	40	3/8-16	1/2	Nitrile
RB-4W	RB-3	RB-4W	Large Round Bumper - 40 Dur Nitrile - 3/8-24 X 1/2 in	1	110939	CAD	1-1/4	1-1/4	3/4	40	3/8-24	1/2	Nitrile
RB-5W	RB-3	RB-5W	Large Round Bumper - 40 Dur Nitrile - 1/2-13 X 1/2 in	1	111147	CAD	1-1/4	1-1/4	3/4	40	1/2-13	1/2	Nitrile
RB-6W	RB-3	RB-6W	Large Round Bumper - 40 Dur Nitrile - 1/2-20 X 1/2 in	1	111186	CAD	1-1/4	1-1/4	3/4	40	1/2-20	1/2	Nitrile
RB-7W	RB-3	RB-7W	Large Round Bumper - 40 Dur Nitrile - 7/16-20 X 1/2 in	1	111212	CAD	1-1/4	1-1/4	3/4	40	7/16-20	1/2	Nitrile
RB-8W	RB-3	RB-8W	Large Round Bumper - 40 Dur Nitrile - 5/8-18- X 1/2 in	1	111236	CAD	1-1/4	1-1/4	3/4	40	5/8-18	1/2	Nitrile
RB-9W	RB-3	RB-9W	Large Round Bumper - 40 Dur Nitrile - 5/8-11 X 5/8 in	1	111272	CAD	1-3/4	1-5/8	7/8	40	5/8-11	5/8	Nitrile
RB-10W	RB-3	RB-10W	Large Round Bumper - 40 Dur Nitrile - 5/8-18 X 5/8 in	1	110684	CAD	1-3/4	1-5/8	7/8	40	5/8-18	5/8	Nitrile
RB-12W	RB-3	RB-12W	Large Round Bumper - 40 Dur Nitrile - 3/4-10 X 1 in	1	110719	CAD	2-1/4	2-1/4	1-3/8	40	3/4-10	1	Nitrile
RB-13W	RB-3	RB-13W	Large Round Bumper - 40 Dur Nitrile - 3/4-16 X 1 in	1	110751	CAD	2-1/4	2-1/4	1-3/8	40	3/4-16	1	Nitrile
RB-14W	RB-3	RB-14W	Large Round Bumper - 40 Dur Nitrile - 1-8 X 1 in	1	110810	CAD	2-1/4	2-1/4	1-3/8	40	1-8	1	Nitrile
RB-3-60UR	RB-3	RB-3-60UR	Large Round Bumper - 60 Dur Urethane - 3/8-16 X 1/2 in	1	110846	CAD	1-1/4	1-1/4	3/4	60	3/8-16	1/2	Urethane
RB-3UR	RB-3	RB-3UR	Large Round Bumper - 80 Dur Urethane - 3/8-16 X 1/2 in	1	110882	CAD	1-1/4	1-1/4	3/4	80	3/8-16	1/2	Urethane
RB-4-60UR	RB-3	RB-4-60UR	Large Round Bumper - 60 Dur Urethane - 3/8-24 X 1/2 in	1	110902	CAD	1-1/4	1-1/4	3/4	60	3/8-24	1/2	Urethane
RB-4UR	RB-3	RB-4UR	Large Round Bumper - 80 Dur Urethane - 3/8-24 X 1/2 in	1	110927	CAD	1-1/4	1-1/4	3/4	80	3/8-24	1/2	Urethane
RB-5-60UR	RB-3	RB-5-60UR	Large Round Bumper - 60 Dur Urethane - 1/2-13 X 1/2 in	1	110973	CAD	1-1/4	1-1/4	3/4	60	1/2-13	1/2	Urethane
RB-5UR	RB-3	RB-5UR	Large Round Bumper - 80 Dur Urethane - 1/2-13 X 1/2 in	1	111138	CAD	1-1/4	1-1/4	3/4	80	1/2-13	1/2	Urethane
RB-6-60UR	RB-3	RB-6-60UR	Large Round Bumper - 60 Dur Urethane - 1/2-20 X 1/2 in	1	111154	CAD	1-1/4	1-1/4	3/4	60	1/2-20	1/2	Urethane
RB-6UR	RB-3	RB-6UR	Large Round Bumper - 80 Dur Urethane - 1/2-20 X 1/2 in	1	111183	CAD	1-1/4	1-1/4	3/4	80	1/2-20	1/2	Urethane
RB-7-60UR	RB-3	RB-7-60UR	Large Round Bumper - 60 Dur Urethane - 7/16-20 X 1/2 in	1	111193	CAD	1-1/4	1-1/4	3/4	60	7/16-20	1/2	Urethane
RB-7UR	RB-3	RB-7UR	Large Round Bumper - 80 Dur Urethane - 7/16-20 X 1/2 in	1	111207	CAD	1-1/4	1-1/4	3/4	80	7/16-20	1/2	Urethane
RB-8-60UR	RB-3	RB-8-60UR	Large Round Bumper - 60 Dur Urethane - 5/8-18 X 1/2 in	1	111221	CAD	1-1/4	1-1/4	3/4	60	5/8-18	1/2	Urethane
RB-8UR	RB-3	RB-8UR	Large Round Bumper - 80 Dur Urethane - 5/8-18 X 1/2 in	1	111232	CAD	1-1/4	1-1/4	3/4	80	5/8-18	1/2	Urethane
RB-9-60UR	RB-3	RB-9-60UR	Large Round Bumper - 60 Dur Urethane - 5/8-11 X 5/8 in	1	111249	CAD	1-3/4	1-5/8	7/8	60	5/8-11	5/8	Urethane
RB-9UR	RB-3	RB-9UR	Large Round Bumper - 80 Dur Urethane - 5/8-11 X 5/8 in	1	111269	CAD	1-3/4	1-5/8	7/8	80	5/8-11	5/8	Urethane
RB-10-60UR	RB-3	RB-10-60UR	Large Round Bumper - 60 Dur Urethane - 5/8-18 X 5/8 in	1	110671	CAD	1-3/4	1-5/8	7/8	60	5/8-18	5/8	Urethane
RB-10UR	RB-3	RB-10UR	Large Round Bumper - 80 Dur Urethane - 5/8-18 X 5/8 in	1	110683	CAD	1-3/4	1-5/8	7/8	80	5/8-18	5/8	Urethane
RB-12-60UR	RB-3	RB-12-60UR	Large Round Bumper - 60 Dur Urethane - 3/4-10 X 1 in	1	110704	CAD	2-1/4	2-1/4	1-3/8	60	3/4-10	1	Urethane
RB-12UR	RB-3	RB-12UR	Large Round Bumper - 80 Dur Urethane - 3/4-10 X 1 in	1	110713	CAD	2-1/4	2-1/4	1-3/8	80	3/4-10	1	Urethane
RB-13-60UR	RB-3	RB-13-60UR	Large Round Bumper - 60 Dur Urethane - 3/4-16 X 1 in	1	110732	CAD	2-1/4	2-1/4	1-3/8	60	3/4-16	1	Urethane
RB-13UR	RB-3	RB-13UR	Large Round Bumper - 80 Dur Urethane - 3/4-16 X 1 in	1	110746	CAD	2-1/4	2-1/4	1-3/8	80	3/4-16	1	Urethane
RB-14-60UR	RB-3	RB-14-60UR	Large Round Bumper - 60 Dur Urethane - 1-8 X 1 in	1	110764	CAD	2-1/4	2-1/4	1-3/8	60	1-8	1	Urethane
RB-14UR	RB-3	RB-14UR	Large Round Bumper - 80 Dur Urethane - 1-8 X 1 in	1	110806	CAD	2-1/4	2-1/4	1-3/8	80	1-8	1	Urethane
