Bumpers - Round - Large - Steel Core - Tapped - Inch (RB)
RB-3

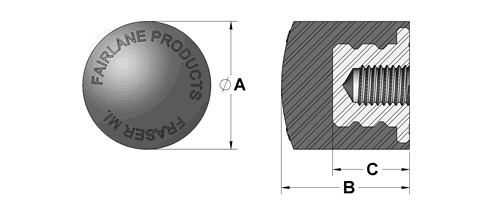

Large Round Bumper - 40 Dur Neoprene - 3/8-16 X 1/2 in
| Part # | A Dia in | B Length in | C in | Durometer Shore A | Thread in | Thread Length in | Material |
|
|---|---|---|---|---|---|---|---|---|
| RB-10 | 1-3/4 | 1-5/8 | 7/8 | 40 | 5/8-18 | 5/8 | Neoprene | |
| RB-10-60UR | 1-3/4 | 1-5/8 | 7/8 | 60 | 5/8-18 | 5/8 | Urethane | |
| RB-10UR | 1-3/4 | 1-5/8 | 7/8 | 80 | 5/8-18 | 5/8 | Urethane | |
| RB-10W | 1-3/4 | 1-5/8 | 7/8 | 40 | 5/8-18 | 5/8 | Nitrile | |
| RB-12 | 2-1/4 | 2-1/4 | 1-3/8 | 40 | 3/4-10 | 1 | Neoprene | |
| RB-12-60UR | 2-1/4 | 2-1/4 | 1-3/8 | 60 | 3/4-10 | 1 | Urethane | |
| RB-12UR | 2-1/4 | 2-1/4 | 1-3/8 | 80 | 3/4-10 | 1 | Urethane | |
| RB-12W | 2-1/4 | 2-1/4 | 1-3/8 | 40 | 3/4-10 | 1 | Nitrile | |
| RB-13 | 2-1/4 | 2-1/4 | 1-3/8 | 40 | 3/4-16 | 1 | Neoprene | |
| RB-13-60UR | 2-1/4 | 2-1/4 | 1-3/8 | 60 | 3/4-16 | 1 | Urethane | |
| RB-13UR | 2-1/4 | 2-1/4 | 1-3/8 | 80 | 3/4-16 | 1 | Urethane | |
| RB-13W | 2-1/4 | 2-1/4 | 1-3/8 | 40 | 3/4-16 | 1 | Nitrile | |
| RB-14 | 2-1/4 | 2-1/4 | 1-3/8 | 40 | 1-8 | 1 | Neoprene | |
| RB-14-60UR | 2-1/4 | 2-1/4 | 1-3/8 | 60 | 1-8 | 1 | Urethane | |
| RB-14-60URM-13 | 1-1/4 | 1-1/4 | 3/4 | 60 | 1/2-13 | 3/4 | Urethane | |
| RB-14UR | 2-1/4 | 2-1/4 | 1-3/8 | 80 | 1-8 | 1 | Urethane | |
| RB-14W | 2-1/4 | 2-1/4 | 1-3/8 | 40 | 1-8 | 1 | Nitrile | |
| RB-3 | 1-1/4 | 1-1/4 | 3/4 | 40 | 3/8-16 | 1/2 | Neoprene | |
| RB-3-60UR | 1-1/4 | 1-1/4 | 3/4 | 60 | 3/8-16 | 1/2 | Urethane | |
| RB-3-95UR | 1-1/4 | 1-1/4 | 3/4 | 95 | 3/8-16 | 1/2 | Urethane | |
| RB-3UR | 1-1/4 | 1-1/4 | 3/4 | 80 | 3/8-16 | 1/2 | Urethane | |
| RB-3W | 1-1/4 | 1-1/4 | 3/4 | 40 | 3/8-16 | 1/2 | Nitrile | |
| RB-4 | 1-1/4 | 1-1/4 | 3/4 | 40 | 3/8-24 | 1/2 | Neoprene | |
| RB-4-60UR | 1-1/4 | 1-1/4 | 3/4 | 60 | 3/8-24 | 1/2 | Urethane | |
| RB-4UR | 1-1/4 | 1-1/4 | 3/4 | 80 | 3/8-24 | 1/2 | Urethane | |
| RB-4W | 1-1/4 | 1-1/4 | 3/4 | 40 | 3/8-24 | 1/2 | Nitrile | |
| RB-5 | 1-1/4 | 1-1/4 | 3/4 | 40 | 1/2-13 | 1/2 | Neoprene | |
| RB-5-60UR | 1-1/4 | 1-1/4 | 3/4 | 60 | 1/2-13 | 1/2 | Urethane | |
| RB-5UR | 1-1/4 | 1-1/4 | 3/4 | 80 | 1/2-13 | 1/2 | Urethane | |
| RB-5W | 1-1/4 | 1-1/4 | 3/4 | 40 | 1/2-13 | 1/2 | Nitrile | |
| RB-6 | 1-1/4 | 1-1/4 | 3/4 | 40 | 1/2-20 | 1/2 | Neoprene | |
| RB-6-60UR | 1-1/4 | 1-1/4 | 3/4 | 60 | 1/2-20 | 1/2 | Urethane | |
| RB-6UR | 1-1/4 | 1-1/4 | 3/4 | 80 | 1/2-20 | 1/2 | Urethane | |
| RB-6W | 1-1/4 | 1-1/4 | 3/4 | 40 | 1/2-20 | 1/2 | Nitrile | |
| RB-7 | 1-1/4 | 1-1/4 | 3/4 | 40 | 7/16-20 | 1/2 | Neoprene | |
| RB-7-60UR | 1-1/4 | 1-1/4 | 3/4 | 60 | 7/16-20 | 1/2 | Urethane | |
| RB-7UR | 1-1/4 | 1-1/4 | 3/4 | 80 | 7/16-20 | 1/2 | Urethane | |
| RB-7W | 1-1/4 | 1-1/4 | 3/4 | 40 | 7/16-20 | 1/2 | Nitrile | |
| RB-8 | 1-1/4 | 1-1/4 | 3/4 | 40 | 5/8-18 | 1/2 | Neoprene | |
| RB-8-60UR | 1-1/4 | 1-1/4 | 3/4 | 60 | 5/8-18 | 1/2 | Urethane | |
| RB-8UR | 1-1/4 | 1-1/4 | 3/4 | 80 | 5/8-18 | 1/2 | Urethane | |
| RB-8W | 1-1/4 | 1-1/4 | 3/4 | 40 | 5/8-18 | 1/2 | Nitrile | |
| RB-9 | 1-3/4 | 1-5/8 | 7/8 | 40 | 5/8-11 | 5/8 | Neoprene | |
| RB-9-60UR | 1-3/4 | 1-5/8 | 7/8 | 60 | 5/8-11 | 5/8 | Urethane | |
| RB-9UR | 1-3/4 | 1-5/8 | 7/8 | 80 | 5/8-11 | 5/8 | Urethane | |
| RB-9W | 1-3/4 | 1-5/8 | 7/8 | 40 | 5/8-11 | 5/8 | Nitrile |
