Grippers - Square - Tool Steel - Diamond Serration - Tapped - Inch (HS)

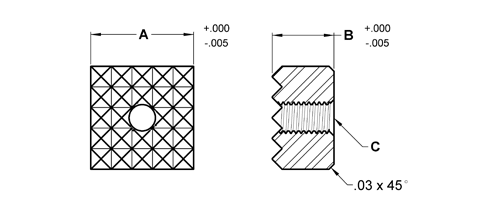

Drawing
Description
Media

Description

Made from M-2 high speed steel. Hardened to Rc 60/62 with black oxide finish. Serrated for positive holding in tough applications. Thru-hole tap.

Gripper Technical Information

HS-90

Tool Steel Gripper - Square - 3/8 in X 3/8 in - Extra Fine

Part Details
CAD

Part Number	Model Name	SKU	Description	Brand	Product ID	CAD Model Link	0	1	2	3
HS-90	HS-90	HS-90	Tool Steel Gripper - Square - 3/8 in X 3/8 in - Extra Fine	1	100508	CAD	3/8	3/8	#10-32	EF
HS-90-SF	HS-90	HS-90-SF	Tool Steel Gripper - Square - 3/8 in X 3/8 in - Super Fine	1	100510	CAD	3/8	3/8	#10-32	SF
HS-905	HS-90	HS-905	Tool Steel Gripper - Square - 3/8 in X 1/2 in - Extra Fine	1	100529	CAD	3/8	1/2	#10-32	EF
HS-905-SF	HS-90	HS-905-SF	Tool Steel Gripper - Square - 3/8 in X 1/2 in - Super Fine	1	100534	CAD	3/8	1/2	#10-32	SF
HS-95	HS-90	HS-95	Tool Steel Gripper - Square - 1/2 in X 3/8 in - Fine	1	100602	CAD	1/2	3/8	#10-32	Fine
HS-95-EF	HS-90	HS-95-EF	Tool Steel Gripper - Square - 1/2 in X 3/8 in - Extra Fine	1	100671	CAD	1/2	3/8	#10-32	EF
HS-95-SF	HS-90	HS-95-SF	Tool Steel Gripper - Square - 1/2 in X 3/8 in - Super Fine	1	100677	CAD	1/2	3/8	#10-32	SF
HS-955	HS-90	HS-955	Tool Steel Gripper - Square - 1/2 in X 1/2 in - Fine	1	100711	CAD	1/2	1/2	#10-32	Fine
HS-955-EF	HS-90	HS-955-EF	Tool Steel Gripper - Square - 1/2 in X 1/2 in - Extra Fine	1	100725	CAD	1/2	1/2	#10-32	EF
HS-955-SF	HS-90	HS-955-SF	Tool Steel Gripper - Square - 1/2 in X 1/2 in - Super Fine	1	100727	CAD	1/2	1/2	#10-32	SF
HS-96	HS-90	HS-96	Tool Steel Gripper - Square - 1/2 in X 3/8 in - Coarse	1	100764	CAD	1/2	3/8	#10-32	Coarse
HS-965	HS-90	HS-965	Tool Steel Gripper - Square - 1/2 in X 1/2 in - Coarse	1	100955	CAD	1/2	1/2	#10-32	Coarse
HS-962	HS-90	HS-962	Tool Steel Gripper - Square - 5/8 in X 3/8 in - Fine	1	100793	CAD	5/8	3/8	#10-32	Fine
HS-962-EF	HS-90	HS-962-EF	Tool Steel Gripper - Square - 5/8 in X 3/8 in - Extra Fine	1	100828	CAD	5/8	3/8	#10-32	EF
HS-963	HS-90	HS-963	Tool Steel Gripper - Square - 5/8 in X 3/8 in - Fine	1	100903	CAD	5/8	3/8	#10-32	Coarse
HS-9625	HS-90	HS-9625	Tool Steel Gripper - Square - 5/8 in X 1/2 in - Fine	1	100851	CAD	5/8	1/2	#10-32	Fine
HS-9625-EF	HS-90	HS-9625-EF	Tool Steel Gripper - Square - 5/8 in X 1/2 in - Extra Fine	1	100871	CAD	5/8	1/2	#10-32	EF
HS-9635	HS-90	HS-9635	Tool Steel Gripper - Square - 5/8 in X 1/2 in - Coarse	1	100923	CAD	5/8	1/2	#10-32	Coarse
HS-97	HS-90	HS-97	Tool Steel Gripper - Square - 3/4 in X 3/8 in - Fine	1	100964	CAD	3/4	3/8	#10-32	Fine
HS-97-EF	HS-90	HS-97-EF	Tool Steel Gripper - Square - 3/4 in X 3/8 in - Extra Fine	1	101018	CAD	3/4	3/8	#10-32	EF
HS-98	HS-90	HS-98	Tool Steel Gripper - Square - 3/4 in X 3/8 in - Coarse	1	101062	CAD	3/4	3/8	#10-32	Coarse
HS-975	HS-90	HS-975	Tool Steel Gripper - Square - 3/4 in X 1/2 in - Fine	1	101041	CAD	3/4	1/2	#10-32	Fine
HS-975-EF	HS-90	HS-975-EF	Tool Steel Gripper - Square - 3/4 in X 3/8 in - Extra Fine	1	101049	CAD	3/4	1/2	#10-32	EF
HS-985	HS-90	HS-985	Tool Steel Gripper - Square - 3/4 in X 1/2 in - Coarse	1	101092	CAD	3/4	1/2	#10-32	Coarse
HS-101	HS-90	HS-101	Tool Steel Gripper - Square - 1 in X 3/8 in - Fine	1	100330	CAD	1	3/8	1/4-28	Fine
HS-101-EF	HS-90	HS-101-EF	Tool Steel Gripper - Square - 1 in X 3/8 in - Extra Fine	1	100380	CAD	1	3/8	1/4-28	EF
HS-102	HS-90	HS-102	Tool Steel Gripper - Square - 1 in X 3/8 in - Coarse	1	100399	CAD	1	3/8	1/4-28	Coarse
HS-105	HS-90	HS-105	Tool Steel Gripper - Square - 1 in X 1/2 in - Fine	1	100453	CAD	1	1/2	1/4-28	Fine
HS-105-EF	HS-90	HS-105-EF	Tool Steel Gripper - Square - 1 in X 1/2 in - Extra Fine	1	100457	CAD	1	1/2	1/4-28	EF
HS-106	HS-90	HS-106	Tool Steel Gripper - Square - 1 in X 1/2 in - Coarse	1	100486	CAD	1	1/2	1/4-28	Coarse
