Grippers - Square - Tool Steel - Diamond Serration - Tapped - Inch (HS)
HS-90

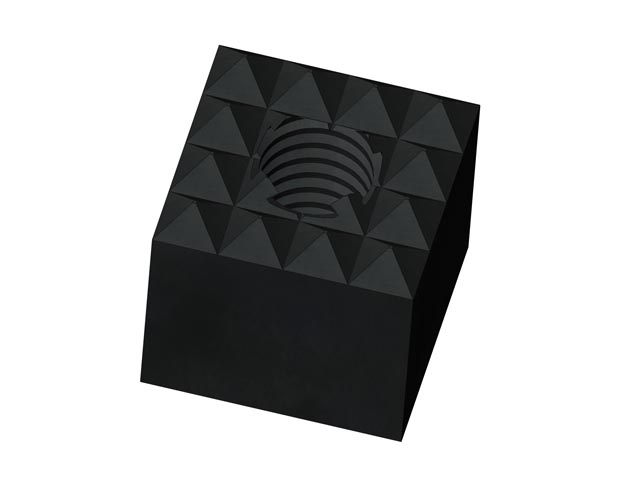

Tool Steel Gripper - Square - 3/8 in X 3/8 in - Extra Fine

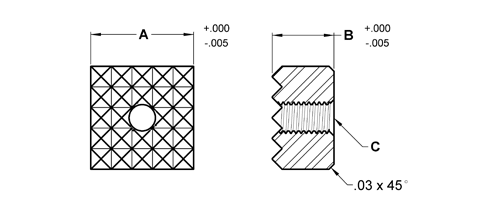

| Part # | A Width in | B Height in | C Tap | Tooth Pattern |
|
|---|---|---|---|---|---|
| HS-101 | 1 | 3/8 | 1/4-28 | Fine | |
| HS-101-EF | 1 | 3/8 | 1/4-28 | EF | |
| HS-102 | 1 | 3/8 | 1/4-28 | Coarse | |
| HS-105 | 1 | 1/2 | 1/4-28 | Fine | |
| HS-105-EF | 1 | 1/2 | 1/4-28 | EF | |
| HS-106 | 1 | 1/2 | 1/4-28 | Coarse | |
| HS-90 | 3/8 | 3/8 | #10-32 | EF | |
| HS-905 | 3/8 | 1/2 | #10-32 | EF | |
| HS-905-SF | 3/8 | 1/2 | #10-32 | SF | |
| HS-90-SF | 3/8 | 3/8 | #10-32 | SF | |
| HS-95 | 1/2 | 3/8 | #10-32 | Fine | |
| HS-955 | 1/2 | 1/2 | #10-32 | Fine | |
| HS-955-EF | 1/2 | 1/2 | #10-32 | EF | |
| HS-955-SF | 1/2 | 1/2 | #10-32 | SF | |
| HS-95-EF | 1/2 | 3/8 | #10-32 | EF | |
| HS-95-SF | 1/2 | 3/8 | #10-32 | SF | |
| HS-96 | 1/2 | 3/8 | #10-32 | Coarse | |
| HS-962 | 5/8 | 3/8 | #10-32 | Fine | |
| HS-9625 | 5/8 | 1/2 | #10-32 | Fine | |
| HS-9625-EF | 5/8 | 1/2 | #10-32 | EF | |
| HS-962-EF | 5/8 | 3/8 | #10-32 | EF | |
| HS-963 | 5/8 | 3/8 | #10-32 | Coarse | |
| HS-9635 | 5/8 | 1/2 | #10-32 | Coarse | |
| HS-965 | 1/2 | 1/2 | #10-32 | Coarse | |
| HS-97 | 3/4 | 3/8 | #10-32 | Fine | |
| HS-975 | 3/4 | 1/2 | #10-32 | Fine | |
| HS-975-EF | 3/4 | 1/2 | #10-32 | EF | |
| HS-97-EF | 3/4 | 3/8 | #10-32 | EF | |
| HS-98 | 3/4 | 3/8 | #10-32 | Coarse | |
| HS-985 | 3/4 | 1/2 | #10-32 | Coarse |
