Base Design Swivots® Gripper Assembly - Serrated Tool Steel Ball - Inch (BBU-S)

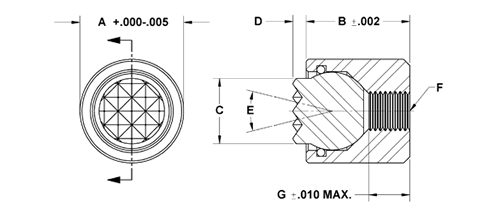

Drawing
Description
Media

Description

Cylinderical body allows for installation in tight areas. The housing is tapped for backside fastening. The replaceable serrated ball swivels to allow for self-alignment on uneven surfaces. A Viton O-ring holds the ball in place while keeping contaminants out and providing smooth ball movement. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. The replaceable ball is made from M-2 high speed steel heat treated to Rc 60/62. Replacement balls and O-rings can be ordered separately.

Gripper Technical Information

BBU-100-S

Base Design Swivot - 3/8 in Dia X 5/16 in - Super Fine

Part Details
CAD

Part Number	Model Name	SKU	Description	Brand	Product ID	CAD Model Link	0	1	2	3	4	5	6	7	8	9	10
BBU-100-S	BBU-100-S	BBU-100-S	Base Design Swivot - 3/8 in Dia X 5/16 in - Super Fine	1	109252	CAD	3/8	5/16	5/32	1/16	28	#4-40	1/4	3/16	BUB-187-S	SF	1,835
BBU-105-S	BBU-100-S	BBU-105-S	Base Design Swivot - 3/8 in Dia X 7/16 in - Super Fine	1	101248	CAD	3/8	7/16	5/32	1/16	28	#4-40	5/16	3/16	BUB-187-S	SF	1,835
BBU-107-S	BBU-100-S	BBU-107-S	Base Design Swivot - 3/8 in Dia X 11/16 in - Super Fine	1	101332	CAD	3/8	11/16	5/32	1/16	28	#4-40	5/16	3/16	BUB-187-S	SF	1,835
BBU-200-S	BBU-100-S	BBU-200-S	Base Design Swivot - 7/16 in Dia X 3/8 in - Super Fine	1	101408	CAD	7/16	3/8	1/4	1/16	28	#8-32	5/32	9/32	BUB-200-S	SF	3,339
BBU-200-S-T	BBU-100-S	BBU-200-S-T	Base Design Swivot - 7/16 in Dia X 3/8 in - Super Fine - Tall	1	101411	CAD	7/16	3/8	1/4	1/8	28	#8-32	5/32	9/32	BUB-200-S-T	SF	3,339
BBU-201-S	BBU-100-S	BBU-201-S	Base Design Swivot - 7/16 in Dia X 15/16 in - Super Fine	1	101451	CAD	7/16	15/16	1/4	1/16	28	#8-32	1/2	9/32	BUB-200-S	SF	3,339
BBU-201-S-T	BBU-100-S	BBU-201-S-T	Base Design Swivot - 7/16 in Dia X 15/16 in - Super Fine - Tall	1	101455	CAD	7/16	15/16	1/4	1/8	28	#8-32	1/2	9/32	BUB-200-S-T	SF	3,339
BBU-300-S	BBU-100-S	BBU-300-S	Base Design Swivot - 1/2 in Dia X 1/2 in - Extra Fine	1	101501	CAD	1/2	1/2	5/16	1/16	28	#10-32	5/32	3/8	BUB-300-S	EF	4,697
BBU-300-S-T	BBU-100-S	BBU-300-S-T	Base Design Swivot - 1/2 in Dia X 1/2 in - Extra Fine - Tall	1	101502	CAD	1/2	1/2	5/16	1/8	28	#10-32	5/32	3/8	BUB-300-S-T	EF	4,697
BBU-300-SF	BBU-100-S	BBU-300-SF	Base Design Swivot - 1/2 in Dia X 1/2 in - Super Fine	1	101504	CAD	1/2	1/2	5/16	1/16	28	#10-32	5/32	3/8	BUB-300-SF	SF	4,697
BBU-300-SF-T	BBU-100-S	BBU-300-SF-T	Base Design Swivot - 1/2 in Dia X 1/2 in - Super Fine - Tall	1	101508	CAD	1/2	1/2	5/16	1/8	28	#10-32	5/32	3/8	BUB-300-SF-T	SF	4,697
BBU-301-S	BBU-100-S	BBU-301-S	Base Design Swivot - 1/2 in Dia X 1 in - Extra Fine	1	101575	CAD	1/2	1	5/16	1/16	28	#10-32	5/8	3/8	BUB-300-S	EF	4,697
BBU-301-S-T	BBU-100-S	BBU-301-S-T	Base Design Swivot - 1/2 in Dia X 1 in - Extra Fine - Tall	1	101579	CAD	1/2	1	5/16	1/8	28	#10-32	5/8	3/8	BUB-300-S-T	EF	4,697
BBU-301-SF	BBU-100-S	BBU-301-SF	Base Design Swivot - 1/2 in Dia X 1 in - Super Fine	1	101581	CAD	1/2	1	5/16	1/16	28	#10-32	5/8	3/8	BUB-300-SF	SF	4,697
BBU-301-SF-T	BBU-100-S	BBU-301-SF-T	Base Design Swivot - 1/2 in Dia X 1 in - Super Fine - Tall	1	101585	CAD	1/2	1	5/16	1/8	28	#10-32	5/8	3/8	BUB-300-SF-T	SF	4,697
BBU-500-S	BBU-100-S	BBU-500-S	Base Design Swivot - 5/8 in Dia X 3/4 in - Extra Fine	1	101635	CAD	5/8	3/4	3/8	1/8	40	1/4-28	1/4	1/2	BUB-500-S	EF	5,849
BBU-500-S-T	BBU-100-S	BBU-500-S-T	Base Design Swivot - 5/8 in Dia X 3/4 in - Extra Fine - Tall	1	101636	CAD	5/8	3/4	3/8	1/4	40	1/4-28	1/4	1/2	BUB-500-S-T	EF	5,849
BBU-500-SF	BBU-100-S	BBU-500-SF	Base Design Swivot - 5/8 in Dia X 3/4 in - Super Fine	1	101640	CAD	5/8	3/4	3/8	1/8	40	1/4-28	1/4	1/2	BUB-500-SF	SF	5,849
BBU-500-SF-T	BBU-100-S	BBU-500-SF-T	Base Design Swivot - 5/8 in Dia X 3/4 in - Super Fine - Tall	1	101643	CAD	5/8	3/4	3/8	1/4	40	1/4-28	1/4	1/2	BUB-500-SF-T	SF	5,849
BBU-600-S	BBU-100-S	BBU-600-S	Base Design Swivot - 13/16 in Dia X 7/8 in - Fine	1	101707	CAD	13/16	7/8	1/2	1/8	40	5/16-24	11/32	5/8	BUB-600-S	Fine	10,925
BBU-600-S-T	BBU-100-S	BBU-600-S-T	Base Design Swivot - 13/16 in Dia X 7/8 in - Fine - Tall	1	101709	CAD	13/16	7/8	1/2	1/4	40	5/16-24	11/32	5/8	BUB-600-S-T	Fine	10,925
BBU-600-EF	BBU-100-S	BBU-600-EF	Base Design Swivot - 13/16 in Dia X 7/8 in - Extra Fine	1	101669	CAD	13/16	7/8	1/2	1/8	40	5/16-24	11/32	5/8	BUB-600-EF	EF	10,925
BBU-600-EF-T	BBU-100-S	BBU-600-EF-T	Base Design Swivot - 13/16 in Dia X 7/8 in - Extra Fine - Tall	1	101671	CAD	13/16	7/8	1/2	1/4	40	5/16-24	11/32	5/8	BUB-600-EF-T	EF	10,925
BBU-600-SF	BBU-100-S	BBU-600-SF	Base Design Swivot - 13/16 in Dia X 7/8 in - Super Fine	1	101711	CAD	13/16	7/8	1/2	1/8	40	5/16-24	11/32	5/8	BUB-600-SF	SF	10,925
BBU-600-SF-T	BBU-100-S	BBU-600-SF-T	Base Design Swivot - 13/16 in Dia X 7/8 in - Super Fine - Tall	1	101713	CAD	13/16	7/8	1/2	1/4	40	5/16-24	11/32	5/8	BUB-600-S-T	SF	10,925
BBU-700-S	BBU-100-S	BBU-700-S	Base Design Swivot - 15/16 in Dia X 7/8 in - Fine	1	101778	CAD	15/16	7/8	5/8	1/8	34	3/8-24	9/32	3/4	BUB-700-S	Fine	13,325
BBU-700-S-T	BBU-100-S	BBU-700-S-T	Base Design Swivot - 15/16 in Dia X 7/8 in - Fine - Tall	1	101782	CAD	15/16	7/8	5/8	1/4	34	3/8-24	9/32	3/4	BUB-700-S-T	Fine	13,325
BBU-700-EF	BBU-100-S	BBU-700-EF	Base Design Swivot - 15/16 in Dia X 7/8 in - Extra Fine	1	101738	CAD	15/16	7/8	5/8	1/8	34	3/8-24	9/32	3/4	BUB-700-EF	EF	13,325
BBU-700-EF-T	BBU-100-S	BBU-700-EF-T	Base Design Swivot - 15/16 in Dia X 7/8 in - Extra Fine - Tall	1	101742	CAD	15/16	7/8	5/8	1/4	34	3/8-24	9/32	3/4	BUB-700-EF-T	EF	13,325
