Base Design Swivots® Gripper Assembly - Serrated Tool Steel Ball - Inch (BBU-S)
BBU-100-S

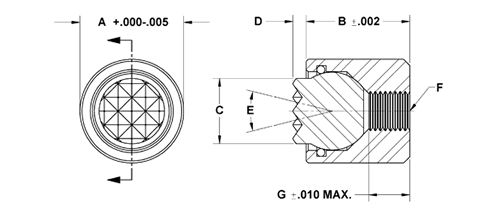

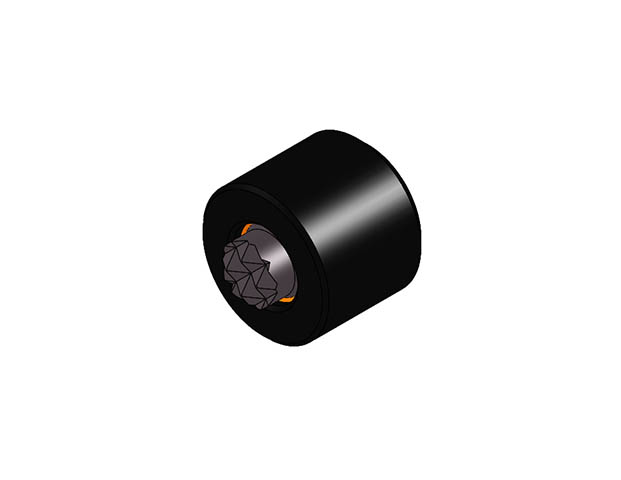

Base Design Swivot - 3/8 in Dia X 5/16 in - Super Fine
| Part # | A Dia in | B Length in | C Contact Dia in | D Standoff in | E Swivel Degrees | F Tap | G Thread Length in | Ball Dia in | Ball Only Part No. | Tooth Pattern | Load Rating lbs |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BBU-100-S | 3/8 | 5/16 | 5/32 | 1/16 | 28 | #4-40 | 1/4 | 3/16 | BUB-187-S | SF | 1,835 | |
| BBU-105-S | 3/8 | 7/16 | 5/32 | 1/16 | 28 | #4-40 | 5/16 | 3/16 | BUB-187-S | SF | 1,835 | |
| BBU-107-S | 3/8 | 11/16 | 5/32 | 1/16 | 28 | #4-40 | 5/16 | 3/16 | BUB-187-S | SF | 1,835 | |
| BBU-200-S | 7/16 | 3/8 | 1/4 | 1/16 | 28 | #8-32 | 5/32 | 9/32 | BUB-200-S | SF | 3,339 | |
| BBU-200-S-T | 7/16 | 3/8 | 1/4 | 1/8 | 28 | #8-32 | 5/32 | 9/32 | BUB-200-S-T | SF | 3,339 | |
| BBU-201-S | 7/16 | 15/16 | 1/4 | 1/16 | 28 | #8-32 | 1/2 | 9/32 | BUB-200-S | SF | 3,339 | |
| BBU-201-S-T | 7/16 | 15/16 | 1/4 | 1/8 | 28 | #8-32 | 1/2 | 9/32 | BUB-200-S-T | SF | 3,339 | |
| BBU-300-S | 1/2 | 1/2 | 5/16 | 1/16 | 28 | #10-32 | 5/32 | 3/8 | BUB-300-S | EF | 4,697 | |
| BBU-300-SF | 1/2 | 1/2 | 5/16 | 1/16 | 28 | #10-32 | 5/32 | 3/8 | BUB-300-SF | SF | 4,697 | |
| BBU-300-SF-T | 1/2 | 1/2 | 5/16 | 1/8 | 28 | #10-32 | 5/32 | 3/8 | BUB-300-SF-T | SF | 4,697 | |
| BBU-300-S-T | 1/2 | 1/2 | 5/16 | 1/8 | 28 | #10-32 | 5/32 | 3/8 | BUB-300-S-T | EF | 4,697 | |
| BBU-301-S | 1/2 | 1 | 5/16 | 1/16 | 28 | #10-32 | 5/8 | 3/8 | BUB-300-S | EF | 4,697 | |
| BBU-301-SF | 1/2 | 1 | 5/16 | 1/16 | 28 | #10-32 | 5/8 | 3/8 | BUB-300-SF | SF | 4,697 | |
| BBU-301-SF-T | 1/2 | 1 | 5/16 | 1/8 | 28 | #10-32 | 5/8 | 3/8 | BUB-300-SF-T | SF | 4,697 | |
| BBU-301-S-T | 1/2 | 1 | 5/16 | 1/8 | 28 | #10-32 | 5/8 | 3/8 | BUB-300-S-T | EF | 4,697 | |
| BBU-500-S | 5/8 | 3/4 | 3/8 | 1/8 | 40 | 1/4-28 | 1/4 | 1/2 | BUB-500-S | EF | 5,849 | |
| BBU-500-SF | 5/8 | 3/4 | 3/8 | 1/8 | 40 | 1/4-28 | 1/4 | 1/2 | BUB-500-SF | SF | 5,849 | |
| BBU-500-SF-T | 5/8 | 3/4 | 3/8 | 1/4 | 40 | 1/4-28 | 1/4 | 1/2 | BUB-500-SF-T | SF | 5,849 | |
| BBU-500-S-T | 5/8 | 3/4 | 3/8 | 1/4 | 40 | 1/4-28 | 1/4 | 1/2 | BUB-500-S-T | EF | 5,849 | |
| BBU-600-EF | 13/16 | 7/8 | 1/2 | 1/8 | 40 | 5/16-24 | 11/32 | 5/8 | BUB-600-EF | EF | 10,925 | |
| BBU-600-EF-T | 13/16 | 7/8 | 1/2 | 1/4 | 40 | 5/16-24 | 11/32 | 5/8 | BUB-600-EF-T | EF | 10,925 | |
| BBU-600-S | 13/16 | 7/8 | 1/2 | 1/8 | 40 | 5/16-24 | 11/32 | 5/8 | BUB-600-S | Fine | 10,925 | |
| BBU-600-SF | 13/16 | 7/8 | 1/2 | 1/8 | 40 | 5/16-24 | 11/32 | 5/8 | BUB-600-SF | SF | 10,925 | |
| BBU-600-SF-T | 13/16 | 7/8 | 1/2 | 1/4 | 40 | 5/16-24 | 11/32 | 5/8 | BUB-600-S-T | SF | 10,925 | |
| BBU-600-S-T | 13/16 | 7/8 | 1/2 | 1/4 | 40 | 5/16-24 | 11/32 | 5/8 | BUB-600-S-T | Fine | 10,925 | |
| BBU-700-EF | 15/16 | 7/8 | 5/8 | 1/8 | 34 | 3/8-24 | 9/32 | 3/4 | BUB-700-EF | EF | 13,325 | |
| BBU-700-EF-T | 15/16 | 7/8 | 5/8 | 1/4 | 34 | 3/8-24 | 9/32 | 3/4 | BUB-700-EF-T | EF | 13,325 | |
| BBU-700-S | 15/16 | 7/8 | 5/8 | 1/8 | 34 | 3/8-24 | 9/32 | 3/4 | BUB-700-S | Fine | 13,325 | |
| BBU-700-S-T | 15/16 | 7/8 | 5/8 | 1/4 | 34 | 3/8-24 | 9/32 | 3/4 | BUB-700-S-T | Fine | 13,325 |
