Full Threaded Swivots® Gripper Assembly - Serrated Tool Steel Ball - Inch (TBU-S)

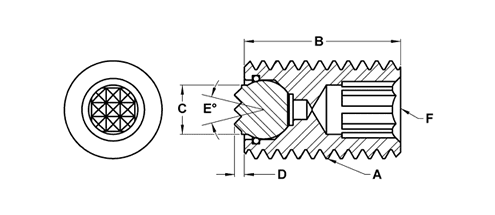

Drawing
Description
Description
The replaceable serrated ball swivels to allow for self-alignment on uneven surfaces. A Viton O-ring holds the ball in place while keeping contaminants out and providing smooth ball movement. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. The replaceable ball is made from M-2 high speed steel heat treated to Rc 60/62. Replacement balls and O-rings can be ordered separately.
Gripper Technical InformationGenerating CAD viewer. Please wait...
TBU-0370-S
Threaded Design Swivot - 3/8-16 X 1/2 - Super Fine
No file is available for download.
| Part Number | Model Name | SKU | Description | Brand | Product ID | CAD Model Link | Price Link | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TBU-0370-S | TBU-0230-S | TBU-0370-S | Threaded Design Swivot - 3/8-16 X 1/2 - Super Fine | 1 | 101882 | CAD | 3/8-16 | 1/2 | 5/32 | 1/16 | 28 | 3/16 | 3/16 | BUB-187-S | SF | 1,763 | |
| TBU-0375-S | TBU-0230-S | TBU-0375-S | Threaded Design Swivot - 3/8-16 X 1 - Super Fine | 1 | 101970 | CAD | 3/8-16 | 1 | 5/32 | 1/16 | 28 | 3/16 | 3/16 | BUB-187-S | SF | 1,763 | |
| TBU-0375X2-S | TBU-0230-S | TBU-0375X2-S | Threaded Design Swivot - 3/8-16 X 2 - Super Fine | 1 | 102063 | CAD | 3/8-16 | 2 | 5/32 | 1/16 | 28 | 3/16 | 3/16 | BUB-187-S | SF | 1,763 | |
| TBU-0375X3-S | TBU-0230-S | TBU-0375X3-S | Threaded Design Swivot - 3/8-16 X 3 - Super Fine | 1 | 102139 | CAD | 3/8-16 | 3 | 5/32 | 1/16 | 28 | 3/16 | 3/16 | BUB-187-S | SF | 1,763 | |
| TBU-0230-S | TBU-0230-S | TBU-0230-S | Threaded Design Swivot - 3/8-24 X 1/2 - Super Fine | 1 | 103215 | CAD | 3/8-24 | 1/2 | 5/32 | 1/16 | 28 | 3/16 | 3/16 | BUB-187-S | SF | 1,763 | |
| TBU-0231-S | TBU-0230-S | TBU-0231-S | Threaded Design Swivot - 3/8-24 X 1 - Super Fine | 1 | 103274 | CAD | 3/8-24 | 1 | 5/32 | 1/16 | 28 | 3/16 | 3/16 | BUB-187-S | SF | 1,763 | |
| TBU-0231X2-S | TBU-0230-S | TBU-0231X2-S | Threaded Design Swivot - 3/8-24 X 2 - Super Fine | 1 | 103329 | CAD | 3/8-24 | 2 | 5/32 | 1/16 | 28 | 3/16 | 3/16 | BUB-187-S | SF | 1,763 | |
| TBU-0231X3-S | TBU-0230-S | TBU-0231X3-S | Threaded Design Swivot - 3/8-24 X 3 - Super Fine | 1 | 103379 | CAD | 3/8-24 | 3 | 5/32 | 1/16 | 28 | 3/16 | 3/16 | BUB-187-S | SF | 1,763 | |
| TBU-0513-S | TBU-0230-S | TBU-0513-S | Threaded Design Swivot - 1/2-13 X 3/4 - Super Fine | 1 | 102901 | CAD | 1/2-13 | 3/4 | 1/4 | 1/16 | 28 | 1/4 | 9/32 | BUB-200-S | SF | 4,527 | |
| TBU-0513-S-T | TBU-0230-S | TBU-0513-S-T | Threaded Design Swivot - 1/2-13 X 3/4 - Super Fine - Tall | 1 | 102910 | CAD | 1/2-13 | 3/4 | 1/4 | 1/8 | 28 | 1/4 | 9/32 | BUB-200-S-T | SF | 4,527 | |
| TBU-0510-S | TBU-0230-S | TBU-0510-S | Threaded Design Swivot - 1/2-13 X 1 - Super Fine | 1 | 102615 | CAD | 1/2-13 | 1 | 1/4 | 1/16 | 28 | 1/4 | 9/32 | BUB-200-S | SF | 4,527 | |
| TBU-0510-S-T | TBU-0230-S | TBU-0510-S-T | Threaded Design Swivot - 1/2-13 X 1 - Super Fine - Tall | 1 | 102636 | CAD | 1/2-13 | 1 | 1/4 | 1/8 | 28 | 1/4 | 9/32 | BUB-200-S-T | SF | 4,527 | |
| TBU-0510X2-S | TBU-0230-S | TBU-0510X2-S | Threaded Design Swivot - 1/2-13 X 2 - Super Fine | 1 | 102700 | CAD | 1/2-13 | 2 | 1/4 | 1/16 | 28 | 1/4 | 9/32 | BUB-200-S | SF | 4,527 | |
| TBU-0510X2-S-T | TBU-0230-S | TBU-0510X2-S-T | Threaded Design Swivot - 1/2-13 X 2 - Super Fine - Tall | 1 | 102705 | CAD | 1/2-13 | 2 | 1/4 | 1/8 | 28 | 1/4 | 9/32 | BUB-200-S-T | SF | 4,527 | |
| TBU-0510X3-S | TBU-0230-S | TBU-0510X3-S | Threaded Design Swivot - 1/2-13 X 3 - Super Fine | 1 | 102796 | CAD | 1/2-13 | 3 | 1/4 | 1/16 | 28 | 1/4 | 9/32 | BUB-200-S | SF | 4,527 | |
| TBU-0510X3-S-T | TBU-0230-S | TBU-0510X3-S-T | Threaded Design Swivot - 1/2-13 X 3 - Super Fine - Tall | 1 | 102813 | CAD | 1/2-13 | 3 | 1/4 | 1/8 | 28 | 1/4 | 9/32 | BUB-200-S-T | SF | 4,527 | |
| TBU-0503-S | TBU-0230-S | TBU-0503-S | Threaded Design Swivot - 1/2-20 X 3/4 - Super Fine | 1 | 102521 | CAD | 1/2-20 | 3/4 | 1/4 | 1/16 | 28 | 1/4 | 9/32 | BUB-200-S | SF | 4,527 | |
| TBU-0503-S-T | TBU-0230-S | TBU-0503-S-T | Threaded Design Swivot - 1/2-20 X 3/4 - Super Fine - Tall | 1 | 102535 | CAD | 1/2-20 | 3/4 | 1/4 | 1/8 | 28 | 1/4 | 9/32 | BUB-200-S-T | SF | 4,527 | |
| TBU-0500-S | TBU-0230-S | TBU-0500-S | Threaded Design Swivot - 1/2-20 X 1 - Super Fine | 1 | 102227 | CAD | 1/2-20 | 1 | 1/4 | 1/16 | 28 | 1/4 | 9/32 | BUB-200-S | SF | 4,527 | |
| TBU-0500-S-T | TBU-0230-S | TBU-0500-S-T | Threaded Design Swivot - 1/2-20 X 1 - Super Fine - Tall | 1 | 102238 | CAD | 1/2-20 | 1 | 1/4 | 1/8 | 28 | 1/4 | 9/32 | BUB-200-S-T | SF | 4,527 | |
| TBU-0500X2-S | TBU-0230-S | TBU-0500X2-S | Threaded Design Swivot - 1/2-20 X 2 - Super Fine | 1 | 102334 | CAD | 1/2-20 | 2 | 1/4 | 1/16 | 28 | 1/4 | 9/32 | BUB-200-S | SF | 4,527 | |
| TBU-0500X2-S-T | TBU-0230-S | TBU-0500X2-S-T | Threaded Design Swivot - 1/2-20 X 2 - Super Fine - Tall | 1 | 102336 | CAD | 1/2-20 | 2 | 1/4 | 1/8 | 28 | 1/4 | 9/32 | BUB-200-S-T | SF | 4,527 | |
| TBU-0500X3-S | TBU-0230-S | TBU-0500X3-S | Threaded Design Swivot - 1/2-20 X 3 - Super Fine | 1 | 102423 | CAD | 1/2-20 | 3 | 1/4 | 1/16 | 28 | 1/4 | 9/32 | BUB-200-S | SF | 4,527 | |
| TBU-0500X3-S-T | TBU-0230-S | TBU-0500X3-S-T | Threaded Design Swivot - 1/2-20 X 3 - Super Fine - Tall | 1 | 102443 | CAD | 1/2-20 | 3 | 1/4 | 1/8 | 28 | 1/4 | 9/32 | BUB-200-S-T | SF | 4,527 | |
| TBU-0625-S | TBU-0230-S | TBU-0625-S | Threaded Design Swivot - 5/8-11 X 1 - Extra Fine | 1 | 103285 | CAD | 5/8-11 | 1 | 5/16 | 1/16 | 28 | 5/16 | 3/8 | BUB-300-S | EF | 6,131 | |
| TBU-0625-S-T | TBU-0230-S | TBU-0625-S-T | Threaded Design Swivot - 5/8-11 X 1 - Extra Fine - Tall | 1 | 103303 | CAD | 5/8-11 | 1 | 5/16 | 1/8 | 28 | 5/16 | 3/8 | BUB-300-S-T | EF | 6,131 | |
| TBU-0625-SF | TBU-0230-S | TBU-0625-SF | Threaded Design Swivot - 5/8-11 X 1 - Super Fine | 1 | 103312 | CAD | 5/8-11 | 1 | 5/16 | 1/16 | 28 | 5/16 | 3/8 | BUB-300-SF | SF | 6,131 | |
| TBU-0625-SF-T | TBU-0230-S | TBU-0625-SF-T | Threaded Design Swivot - 5/8-11 X 1 - Super Fine - Tall | 1 | 103322 | CAD | 5/8-11 | 1 | 5/16 | 1/8 | 28 | 5/16 | 3/8 | BUB-300-SF-T | SF | 6,131 | |
| TBU-0625X2-S | TBU-0230-S | TBU-0625X2-S | Threaded Design Swivot - 5/8-11 X 2 - Extra Fine | 1 | 103401 | CAD | 5/8-11 | 2 | 5/16 | 1/16 | 28 | 5/16 | 3/8 | BUB-300-S | EF | 6,131 | |
| TBU-0625X2-S-T | TBU-0230-S | TBU-0625X2-S-T | Threaded Design Swivot - 5/8-11 X 2 - Extra Fine - Tall | 1 | 103409 | CAD | 5/8-11 | 2 | 5/16 | 1/8 | 28 | 5/16 | 3/8 | BUB-300-S-T | EF | 6,131 | |
| TBU-0625X2-SF | TBU-0230-S | TBU-0625X2-SF | Threaded Design Swivot - 5/8-11 X 2 - Super Fine | 1 | 103411 | CAD | 5/8-11 | 2 | 5/16 | 1/16 | 28 | 5/16 | 3/8 | BUB-300-SF | SF | 6,131 | |
| TBU-0625X2-SF-T | TBU-0230-S | TBU-0625X2-SF-T | Threaded Design Swivot - 5/8-11 X 2 - Super Fine - Tall | 1 | 103414 | CAD | 5/8-11 | 2 | 5/16 | 1/8 | 28 | 5/16 | 3/8 | BUB-300-SF-T | SF | 6,131 | |
| TBU-0625X3-S | TBU-0230-S | TBU-0625X3-S | Threaded Design Swivot - 5/8-11 X 3 - Extra Fine | 1 | 101975 | CAD | 5/8-11 | 3 | 5/16 | 1/16 | 28 | 5/16 | 3/8 | BUB-300-S | EF | 6,131 | |
| TBU-0625X3-S-T | TBU-0230-S | TBU-0625X3-S-T | Threaded Design Swivot - 5/8-11 X 3 - Extra Fine - Tall | 1 | 101980 | CAD | 5/8-11 | 3 | 5/16 | 1/8 | 28 | 5/16 | 3/8 | BUB-300-S-T | EF | 6,131 | |
| TBU-0625X3-SF | TBU-0230-S | TBU-0625X3-SF | Threaded Design Swivot - 5/8-11 X 3 - Super Fine | 1 | 101986 | CAD | 5/8-11 | 3 | 5/16 | 1/16 | 28 | 5/16 | 3/8 | BUB-300-SF | SF | 6,131 | |
| TBU-0625X3-SF-T | TBU-0230-S | TBU-0625X3-SF-T | Threaded Design Swivot - 5/8-11 X 3 - Super Fine - Tall | 1 | 101990 | CAD | 5/8-11 | 3 | 5/16 | 1/8 | 28 | 5/16 | 3/8 | BUB-300-SF-T | SF | 6,131 | |
| TBU-0620-S | TBU-0230-S | TBU-0620-S | Threaded Design Swivot - 5/8-18 X 1 - Extra Fine | 1 | 102953 | CAD | 5/8-18 | 1 | 5/16 | 1/16 | 28 | 5/16 | 3/8 | BUB-300-S | EF | 6,131 | |
| TBU-0620-S-T | TBU-0230-S | TBU-0620-S-T | Threaded Design Swivot - 5/8-18 X 1 - Extra Fine - Tall | 1 | 102963 | CAD | 5/8-18 | 1 | 5/16 | 1/8 | 28 | 5/16 | 3/8 | BUB-300-S-T | EF | 6,131 | |
| TBU-0620-SF | TBU-0230-S | TBU-0620-SF | Threaded Design Swivot - 5/8-18 X 1 - Super Fine | 1 | 102976 | CAD | 5/8-18 | 1 | 5/16 | 1/16 | 28 | 5/16 | 3/8 | BUB-300-SF | SF | 6,131 | |
| TBU-0620-SF-T | TBU-0230-S | TBU-0620-SF-T | Threaded Design Swivot - 5/8-18 X 1 - Super Fine - Tall | 1 | 102977 | CAD | 5/8-18 | 1 | 5/16 | 1/8 | 28 | 5/16 | 3/8 | BUB-300-SF-T | SF | 6,131 | |
| TBU-0620X2-S | TBU-0230-S | TBU-0620X2-S | Threaded Design Swivot - 5/8-18 X 2 - Extra Fine | 1 | 103054 | CAD | 5/8-18 | 2 | 5/16 | 1/16 | 28 | 5/16 | 3/8 | BUB-300-S | EF | 6,131 | |
| TBU-0620X2-S-T | TBU-0230-S | TBU-0620X2-S-T | Threaded Design Swivot - 5/8-18 X 2 - Extra Fine - Tall | 1 | 103056 | CAD | 5/8-18 | 2 | 5/16 | 1/8 | 28 | 5/16 | 3/8 | BUB-300-S-T | EF | 6,131 | |
| TBU-0620X2-SF | TBU-0230-S | TBU-0620X2-SF | Threaded Design Swivot - 5/8-18 X 2 - Super Fine | 1 | 103077 | CAD | 5/8-18 | 2 | 5/16 | 1/16 | 28 | 5/16 | 3/8 | BUB-300-SF | SF | 6,131 | |
| TBU-0620X2-SF-T | TBU-0230-S | TBU-0620X2-SF-T | Threaded Design Swivot - 5/8-18 X 2 - Super Fine - Tall | 1 | 103086 | CAD | 5/8-18 | 2 | 5/16 | 1/8 | 28 | 5/16 | 3/8 | BUB-300-SF-T | SF | 6,131 | |
| TBU-0620X3-S | TBU-0230-S | TBU-0620X3-S | Threaded Design Swivot - 5/8-18 X 3 - Extra Fine | 1 | 103172 | CAD | 5/8-18 | 3 | 5/16 | 1/16 | 28 | 5/16 | 3/8 | BUB-300-S | EF | 6,131 | |
| TBU-0620X3-S-T | TBU-0230-S | TBU-0620X3-S-T | Threaded Design Swivot - 5/8-18 X 3 - Extra Fine - Tall | 1 | 103188 | CAD | 5/8-18 | 3 | 5/16 | 1/8 | 28 | 5/16 | 3/8 | BUB-300-S-T | EF | 6,131 | |
| TBU-0620X3-SF | TBU-0230-S | TBU-0620X3-SF | Threaded Design Swivot - 5/8-18 X 3 - Super Fine | 1 | 103192 | CAD | 5/8-18 | 3 | 5/16 | 1/16 | 28 | 5/16 | 3/8 | BUB-300-SF | SF | 6,131 | |
| TBU-0620X3-SF-T | TBU-0230-S | TBU-0620X3-SF-T | Threaded Design Swivot - 5/8-18 X 3 - Super Fine - Tall | 1 | 103194 | CAD | 5/8-18 | 3 | 5/16 | 1/8 | 28 | 5/16 | 3/8 | BUB-300-SF-T | SF | 6,131 | |
| TBU-0755-S | TBU-0230-S | TBU-0755-S | Threaded Design Swivot - 3/4-10 X 1 - Extra Fine | 1 | 102438 | CAD | 3/4-10 | 1 | 3/8 | 1/8 | 40 | 3/8 | 1/2 | BUB-500-S | EF | 8,150 | |
| TBU-0755-S-T | TBU-0230-S | TBU-0755-S-T | Threaded Design Swivot - 3/4-10 X 1 - Extra Fine - Tall | 1 | 102440 | CAD | 3/4-10 | 1 | 3/8 | 1/4 | 40 | 3/8 | 1/2 | BUB-500-S-T | EF | 8,150 | |
| TBU-0755-SF | TBU-0230-S | TBU-0755-SF | Threaded Design Swivot - 3/4-10 X 1 - Super Fine | 1 | 102455 | CAD | 3/4-10 | 1 | 3/8 | 1/8 | 40 | 3/8 | 1/2 | BUB-500-SF | SF | 8,150 | |
| TBU-0755-SF-T | TBU-0230-S | TBU-0755-SF-T | Threaded Design Swivot - 3/4-10 X 1 - Super Fine - Tall | 1 | 102458 | CAD | 3/4-10 | 1 | 3/8 | 1/4 | 40 | 3/8 | 1/2 | BUB-500-SF-T | SF | 8,150 | |
| TBU-0755X2-S | TBU-0230-S | TBU-0755X2-S | Threaded Design Swivot - 3/4-10 X 2 - Extra Fine | 1 | 102567 | CAD | 3/4-10 | 2 | 3/8 | 1/8 | 40 | 3/8 | 1/2 | BUB-500-S | EF | 8,150 | |
| TBU-0755X2-S-T | TBU-0230-S | TBU-0755X2-S-T | Threaded Design Swivot - 3/4-10 X 2 - Extra Fine - Tall | 1 | 102575 | CAD | 3/4-10 | 2 | 3/8 | 1/4 | 40 | 3/8 | 1/2 | BUB-500-S-T | EF | 8,150 | |
| TBU-0755X2-SF | TBU-0230-S | TBU-0755X2-SF | Threaded Design Swivot - 3/4-10 X 2 - Super Fine | 1 | 102576 | CAD | 3/4-10 | 2 | 3/8 | 1/8 | 40 | 3/8 | 1/2 | BUB-500-SF | SF | 8,150 | |
| TBU-0755X2-SF-T | TBU-0230-S | TBU-0755X2-SF-T | Threaded Design Swivot - 3/4-10 X 2 - Super Fine - Tall | 1 | 102591 | CAD | 3/4-10 | 2 | 3/8 | 1/4 | 40 | 3/8 | 1/2 | BUB-500-SF-T | SF | 8,150 | |
| TBU-0755X3-S | TBU-0230-S | TBU-0755X3-S | Threaded Design Swivot - 3/4-10 X 3 - Extra Fine | 1 | 102688 | CAD | 3/4-10 | 3 | 3/8 | 1/8 | 40 | 3/8 | 1/2 | BUB-500-S | EF | 8,150 | |
| TBU-0755X3-S-T | TBU-0230-S | TBU-0755X3-S-T | Threaded Design Swivot - 3/4-10 X 3 - Extra Fine - Tall | 1 | 102692 | CAD | 3/4-10 | 3 | 3/8 | 1/4 | 40 | 3/8 | 1/2 | BUB-500-S-T | EF | 8,150 | |
| TBU-0755X3-SF | TBU-0230-S | TBU-0755X3-SF | Threaded Design Swivot - 3/4-10 X 3 - Super Fine | 1 | 102694 | CAD | 3/4-10 | 3 | 3/8 | 1/8 | 40 | 3/8 | 1/2 | BUB-500-SF | SF | 8,150 | |
| TBU-0755X3-SF-T | TBU-0230-S | TBU-0755X3-SF-T | Threaded Design Swivot - 3/4-10 X 3 - Super Fine - Tall | 1 | 102706 | CAD | 3/4-10 | 3 | 3/8 | 1/4 | 40 | 3/8 | 1/2 | BUB-500-SF-T | SF | 8,150 | |
| TBU-0750-S | TBU-0230-S | TBU-0750-S | Threaded Design Swivot - 3/4-16 X 1 - Extra Fine | 1 | 102077 | CAD | 3/4-16 | 1 | 3/8 | 1/8 | 40 | 3/8 | 1/2 | BUB-500-S | EF | 8,150 | |
| TBU-0750-S-T | TBU-0230-S | TBU-0750-S-T | Threaded Design Swivot - 3/4-16 X 1 - Extra Fine - Tall | 1 | 102099 | CAD | 3/4-16 | 1 | 3/8 | 1/4 | 40 | 3/8 | 1/2 | BUB-500-S-T | EF | 8,150 | |
| TBU-0750-SF | TBU-0230-S | TBU-0750-SF | Threaded Design Swivot - 3/4-16 X 1 - Super Fine | 1 | 102105 | CAD | 3/4-16 | 1 | 3/8 | 1/8 | 40 | 3/8 | 1/2 | BUB-500-SF | SF | 8,150 | |
| TBU-0750-SF-T | TBU-0230-S | TBU-0750-SF-T | Threaded Design Swivot - 3/4-16 X 1 - Super Fine - Tall | 1 | 102107 | CAD | 3/4-16 | 1 | 3/8 | 1/4 | 40 | 3/8 | 1/2 | BUB-500-SF-T | SF | 8,150 | |
| TBU-0750X2-S | TBU-0230-S | TBU-0750X2-S | Threaded Design Swivot - 3/4-16 X 2 - Extra Fine | 1 | 102161 | CAD | 3/4-16 | 2 | 3/8 | 1/8 | 40 | 3/8 | 1/2 | BUB-500-S | EF | 8,150 | |
| TBU-0750X2-S-T | TBU-0230-S | TBU-0750X2-S-T | Threaded Design Swivot - 3/4-16 X 2 - Extra Fine - Tall | 1 | 102174 | CAD | 3/4-16 | 2 | 3/8 | 1/4 | 40 | 3/8 | 1/2 | BUB-500-S-T | EF | 8,150 | |
| TBU-0750X2-SF | TBU-0230-S | TBU-0750X2-SF | Threaded Design Swivot - 3/4-16 X 2 - Super Fine | 1 | 102193 | CAD | 3/4-16 | 2 | 3/8 | 1/8 | 40 | 3/8 | 1/2 | BUB-500-SF | SF | 8,150 | |
| TBU-0750X2-SF-T | TBU-0230-S | TBU-0750X2-SF-T | Threaded Design Swivot - 3/4-16 X 2 - Super Fine - Tall | 1 | 102204 | CAD | 3/4-16 | 2 | 3/8 | 1/4 | 40 | 3/8 | 1/2 | BUB-500-SF-T | SF | 8,150 | |
| TBU-0750X3-S | TBU-0230-S | TBU-0750X3-S | Threaded Design Swivot - 3/4-16 X 3 - Extra Fine | 1 | 102305 | CAD | 3/4-16 | 3 | 3/8 | 1/8 | 40 | 3/8 | 1/2 | BUB-500-S | EF | 8,150 | |
| TBU-0750X3-S-T | TBU-0230-S | TBU-0750X3-S-T | Threaded Design Swivot - 3/4-16 X 3 - Extra Fine - Tall | 1 | 102307 | CAD | 3/4-16 | 3 | 3/8 | 1/4 | 40 | 3/8 | 1/2 | BUB-500-S-T | EF | 8,150 | |
| TBU-0750X3-SF | TBU-0230-S | TBU-0750X3-SF | Threaded Design Swivot - 3/4-16 X 3 - Super Fine | 1 | 102315 | CAD | 3/4-16 | 3 | 3/8 | 1/8 | 40 | 3/8 | 1/2 | BUB-500-SF | SF | 8,150 | |
| TBU-0750X3-SF-T | TBU-0230-S | TBU-0750X3-SF-T | Threaded Design Swivot - 3/4-16 X 3 - Super Fine - Tall | 1 | 102318 | CAD | 3/4-16 | 3 | 3/8 | 1/4 | 40 | 3/8 | 1/2 | BUB-500-SF-T | SF | 8,150 | |
| TBU-1108-S | TBU-0230-S | TBU-1108-S | Threaded Design Swivot - 1-8 X 1 - Fine | 1 | 102790 | CAD | 1-8 | 1 | 1/2 | 1/8 | 40 | 3/8 | 5/8 | BUB-600-S | Fine | 14,757 | |
| TBU-1108-S-T | TBU-0230-S | TBU-1108-S-T | Threaded Design Swivot - 1-8 X 1 - Fine - Tall | 1 | 102808 | CAD | 1-8 | 1 | 1/2 | 1/4 | 40 | 3/8 | 5/8 | BUB-600-S-T | Fine | 14,757 | |
| TBU-1108-EF | TBU-0230-S | TBU-1108-EF | Threaded Design Swivot - 1-8 X 1 - Extra Fine | 1 | 102723 | CAD | 1-8 | 1 | 1/2 | 1/8 | 40 | 3/8 | 5/8 | BUB-600-EF | EF | 14,757 | |
| TBU-1108-EF-T | TBU-0230-S | TBU-1108-EF-T | Threaded Design Swivot - 1-8 X 1 - Extra Fine - Tall | 1 | 102724 | CAD | 1-8 | 1 | 1/2 | 1/4 | 40 | 3/8 | 5/8 | BUB-600-EF-T | EF | 14,757 | |
| TBU-1108-SF | TBU-0230-S | TBU-1108-SF | Threaded Design Swivot - 1-8 X 1 - Super Fine | 1 | 102809 | CAD | 1-8 | 1 | 1/2 | 1/8 | 40 | 3/8 | 5/8 | BUB-600-SF | SF | 14,757 | |
| TBU-1108-SF-T | TBU-0230-S | TBU-1108-SF-T | Threaded Design Swivot - 1-8 X 1 - Super Fine - Tall | 1 | 102814 | CAD | 1-8 | 1 | 1/2 | 1/4 | 40 | 3/8 | 5/8 | BUB-600-SF-T | SF | 14,757 | |
| TBU-1108X2-S | TBU-0230-S | TBU-1108X2-S | Threaded Design Swivot - 1-8 X 2 - Fine | 1 | 102942 | CAD | 1-8 | 2 | 1/2 | 1/8 | 40 | 3/8 | 5/8 | BUB-600-S | Fine | 14,757 | |
| TBU-1108X2-S-T | TBU-0230-S | TBU-1108X2-S-T | Threaded Design Swivot - 1-8 X 2 - Fine - Tall | 1 | 102950 | CAD | 1-8 | 2 | 1/2 | 1/4 | 40 | 3/8 | 5/8 | BUB-600-S-T | Fine | 14,757 | |
| TBU-1108X2-EF | TBU-0230-S | TBU-1108X2-EF | Threaded Design Swivot - 1-8 X 2 - Extra Fine | 1 | 102863 | CAD | 1-8 | 2 | 1/2 | 1/8 | 40 | 3/8 | 5/8 | BUB-600-EF | EF | 14,757 | |
| TBU-1108X2-EF-T | TBU-0230-S | TBU-1108X2-EF-T | Threaded Design Swivot - 1-8 X 2 - Extra Fine - Tall | 1 | 102869 | CAD | 1-8 | 2 | 1/2 | 1/4 | 40 | 3/8 | 5/8 | BUB-600-EF-T | EF | 14,757 | |
| TBU-1108X2-SF | TBU-0230-S | TBU-1108X2-SF | Threaded Design Swivot - 1-8 X 2 - Super Fine | 1 | 102957 | CAD | 1-8 | 2 | 1/2 | 1/8 | 40 | 3/8 | 5/8 | BUB-600-SF | SF | 14,757 | |
| TBU-1108X2-SF-T | TBU-0230-S | TBU-1108X2-SF-T | Threaded Design Swivot - 1-8 X 2 - Super Fine - Tall | 1 | 102959 | CAD | 1-8 | 2 | 1/2 | 1/4 | 40 | 3/8 | 5/8 | BUB-600-SF-T | SF | 14,757 | |
| TBU-1108X3-S | TBU-0230-S | TBU-1108X3-S | Threaded Design Swivot - 1-8 X 3 - Fine | 1 | 103070 | CAD | 1-8 | 3 | 1/2 | 1/8 | 40 | 3/8 | 5/8 | BUB-600-S | Fine | 14,757 | |
| TBU-1108X3-S-T | TBU-0230-S | TBU-1108X3-S-T | Threaded Design Swivot - 1-8 X 3 - Fine - Tall | 1 | 103079 | CAD | 1-8 | 3 | 1/2 | 1/4 | 40 | 3/8 | 5/8 | BUB-600-S-T | Fine | 14,757 | |
| TBU-1108X3-EF | TBU-0230-S | TBU-1108X3-EF | Threaded Design Swivot - 1-8 X 3 - Extra Fine | 1 | 102986 | CAD | 1-8 | 3 | 1/2 | 1/8 | 40 | 3/8 | 5/8 | BUB-600-EF | EF | 14,757 | |
| TBU-1108X3-EF-T | TBU-0230-S | TBU-1108X3-EF-T | Threaded Design Swivot - 1-8 X 3 - Extra Fine - Tall | 1 | 102992 | CAD | 1-8 | 3 | 1/2 | 1/4 | 40 | 3/8 | 5/8 | BUB-600-EF-T | EF | 14,757 | |
| TBU-1108X3-SF | TBU-0230-S | TBU-1108X3-SF | Threaded Design Swivot - 1-8 X 3 - Super Fine | 1 | 103131 | CAD | 1-8 | 3 | 1/2 | 1/8 | 40 | 3/8 | 5/8 | BUB-600-SF | SF | 14,757 | |
| TBU-1108X3-SF-T | TBU-0230-S | TBU-1108X3-SF-T | Threaded Design Swivot - 1-8 X 3 - Super Fine - Tall | 1 | 103136 | CAD | 1-8 | 3 | 1/2 | 1/4 | 40 | 3/8 | 5/8 | BUB-600-SF-T | SF | 14,757 | |
| TBU-1114-S | TBU-0230-S | TBU-1114-S | Threaded Design Swivot - 1-14 X 1 - Fine | 1 | 103214 | CAD | 1-14 | 1 | 5/8 | 1/8 | 34 | 3/8 | 3/4 | BUB-700-S | Fine | 14,757 | |
| TBU-1114-S-T | TBU-0230-S | TBU-1114-S-T | Threaded Design Swivot - 1-14 X 1 - Fine - Tall | 1 | 103216 | CAD | 1-14 | 1 | 5/8 | 1/4 | 34 | 3/8 | 3/4 | BUB-700-S-T | Fine | 14,757 | |
| TBU-1114-EF | TBU-0230-S | TBU-1114-EF | Threaded Design Swivot - 1-14 X 1 - Extra Fine | 1 | 103168 | CAD | 1-14 | 1 | 5/8 | 1/8 | 34 | 3/8 | 3/4 | BUB-700-EF | EF | 14,757 | |
| TBU-1114-EF-T | TBU-0230-S | TBU-1114-EF-T | Threaded Design Swivot - 1-14 X 1 - Extra Fine - Tall | 1 | 103170 | CAD | 1-14 | 1 | 5/8 | 1/4 | 34 | 3/8 | 3/4 | BUB-700-EF-T | EF | 14,757 | |
| TBU-1114X2-S | TBU-0230-S | TBU-1114X2-S | Threaded Design Swivot - 1-14 X 2 - Fine | 1 | 103340 | CAD | 1-14 | 2 | 5/8 | 1/8 | 34 | 3/8 | 3/4 | BUB-700-S | Fine | 14,757 | |
| TBU-1114X2-S-T | TBU-0230-S | TBU-1114X2-S-T | Threaded Design Swivot - 1-14 X 2 - Fine - Tall | 1 | 103345 | CAD | 1-14 | 2 | 5/8 | 1/4 | 34 | 3/8 | 3/4 | BUB-700-S-T | Fine | 14,757 | |
| TBU-1114X2-EF | TBU-0230-S | TBU-1114X2-EF | Threaded Design Swivot - 1-14 X 2 - Extra Fine | 1 | 103259 | CAD | 1-14 | 2 | 5/8 | 1/8 | 34 | 3/8 | 3/4 | BUB-700-EF | EF | 14,757 | |
| TBU-1114X2-EF-T | TBU-0230-S | TBU-1114X2-EF-T | Threaded Design Swivot - 1-14 X 2 - Extra Fine - Tall | 1 | 103261 | CAD | 1-14 | 2 | 5/8 | 1/4 | 34 | 3/8 | 3/4 | BUB-700-EF-T | EF | 14,757 | |
| TBU-1114X3-S | TBU-0230-S | TBU-1114X3-S | Threaded Design Swivot - 1-14 X 3 - Fine | 1 | 103467 | CAD | 1-14 | 3 | 5/8 | 1/8 | 34 | 3/8 | 3/4 | BUB-700-S | Fine | 14,757 | |
| TBU-1114X3-S-T | TBU-0230-S | TBU-1114X3-S-T | Threaded Design Swivot - 1-14 X 3 - Fine - Tall | 1 | 103474 | CAD | 1-14 | 3 | 5/8 | 1/4 | 34 | 3/8 | 3/4 | BUB-700-S-T | Fine | 14,757 | |
| TBU-1114X3-EF | TBU-0230-S | TBU-1114X3-EF | Threaded Design Swivot - 1-14 X 3 - Extra Fine | 1 | 103400 | CAD | 1-14 | 3 | 5/8 | 1/8 | 34 | 3/8 | 3/4 | BUB-700-EF | EF | 14,757 | |
| TBU-1114X3-EF-T | TBU-0230-S | TBU-1114X3-EF-T | Threaded Design Swivot - 1-14 X 3 - Extra Fine - Tall | 1 | 103407 | CAD | 1-14 | 3 | 5/8 | 1/4 | 34 | 3/8 | 3/4 | BUB-700-EF-T | EF | 14,757 |
