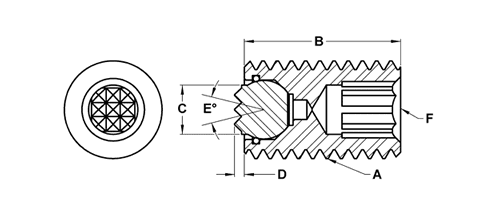

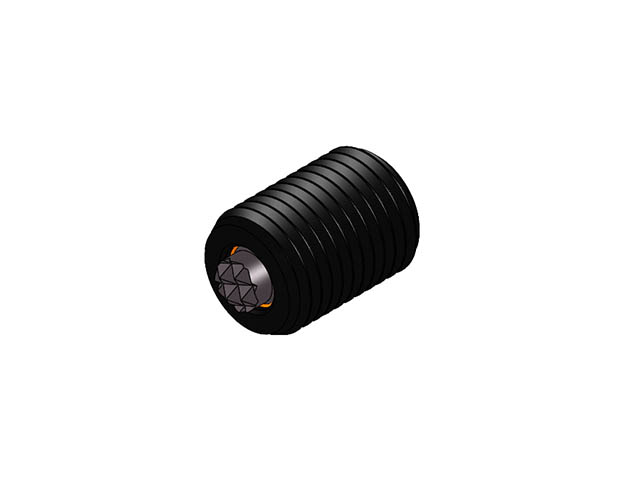

Full Threaded Swivots® Gripper Assembly - Serrated Tool Steel Ball - Inch (TBU-S)
TBU-0370-S
Threaded Design Swivot - 3/8-16 X 1/2 - Super Fine
| Part # | A Thread | B Thread Length in | C Contact Dia in | D Standoff in | E Swivel Degrees | F Int Hex in | Ball Dia in | Ball Only Part No. | Tooth Pattern | Load Rating lbs |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| TBU-0230-S | 3/8-24 | 1/2 | 5/32 | 1/16 | 28 | 3/16 | 3/16 | BUB-187-S | SF | 1,763 | |
| TBU-0231-S | 3/8-24 | 1 | 5/32 | 1/16 | 28 | 3/16 | 3/16 | BUB-187-S | SF | 1,763 | |
| TBU-0231X2-S | 3/8-24 | 2 | 5/32 | 1/16 | 28 | 3/16 | 3/16 | BUB-187-S | SF | 1,763 | |
| TBU-0231X3-S | 3/8-24 | 3 | 5/32 | 1/16 | 28 | 3/16 | 3/16 | BUB-187-S | SF | 1,763 | |
| TBU-0370-S | 3/8-16 | 1/2 | 5/32 | 1/16 | 28 | 3/16 | 3/16 | BUB-187-S | SF | 1,763 | |
| TBU-0375-S | 3/8-16 | 1 | 5/32 | 1/16 | 28 | 3/16 | 3/16 | BUB-187-S | SF | 1,763 | |
| TBU-0375X2-S | 3/8-16 | 2 | 5/32 | 1/16 | 28 | 3/16 | 3/16 | BUB-187-S | SF | 1,763 | |
| TBU-0375X3-S | 3/8-16 | 3 | 5/32 | 1/16 | 28 | 3/16 | 3/16 | BUB-187-S | SF | 1,763 | |
| TBU-0500-S | 1/2-20 | 1 | 1/4 | 1/16 | 28 | 1/4 | 9/32 | BUB-200-S | SF | 4,527 | |
| TBU-0500-S-T | 1/2-20 | 1 | 1/4 | 1/8 | 28 | 1/4 | 9/32 | BUB-200-S-T | SF | 4,527 | |
| TBU-0500X2-S | 1/2-20 | 2 | 1/4 | 1/16 | 28 | 1/4 | 9/32 | BUB-200-S | SF | 4,527 | |
| TBU-0500X2-S-T | 1/2-20 | 2 | 1/4 | 1/8 | 28 | 1/4 | 9/32 | BUB-200-S-T | SF | 4,527 | |
| TBU-0500X3-S | 1/2-20 | 3 | 1/4 | 1/16 | 28 | 1/4 | 9/32 | BUB-200-S | SF | 4,527 | |
| TBU-0500X3-S-T | 1/2-20 | 3 | 1/4 | 1/8 | 28 | 1/4 | 9/32 | BUB-200-S-T | SF | 4,527 | |
| TBU-0503-S | 1/2-20 | 3/4 | 1/4 | 1/16 | 28 | 1/4 | 9/32 | BUB-200-S | SF | 4,527 | |
| TBU-0503-S-T | 1/2-20 | 3/4 | 1/4 | 1/8 | 28 | 1/4 | 9/32 | BUB-200-S-T | SF | 4,527 | |
| TBU-0510-S | 1/2-13 | 1 | 1/4 | 1/16 | 28 | 1/4 | 9/32 | BUB-200-S | SF | 4,527 | |
| TBU-0510-S-T | 1/2-13 | 1 | 1/4 | 1/8 | 28 | 1/4 | 9/32 | BUB-200-S-T | SF | 4,527 | |
| TBU-0510X2-S | 1/2-13 | 2 | 1/4 | 1/16 | 28 | 1/4 | 9/32 | BUB-200-S | SF | 4,527 | |
| TBU-0510X2-S-T | 1/2-13 | 2 | 1/4 | 1/8 | 28 | 1/4 | 9/32 | BUB-200-S-T | SF | 4,527 | |
| TBU-0510X3-S | 1/2-13 | 3 | 1/4 | 1/16 | 28 | 1/4 | 9/32 | BUB-200-S | SF | 4,527 | |
| TBU-0510X3-S-T | 1/2-13 | 3 | 1/4 | 1/8 | 28 | 1/4 | 9/32 | BUB-200-S-T | SF | 4,527 | |
| TBU-0513-S | 1/2-13 | 3/4 | 1/4 | 1/16 | 28 | 1/4 | 9/32 | BUB-200-S | SF | 4,527 | |
| TBU-0513-S-T | 1/2-13 | 3/4 | 1/4 | 1/8 | 28 | 1/4 | 9/32 | BUB-200-S-T | SF | 4,527 | |
| TBU-0620-S | 5/8-18 | 1 | 5/16 | 1/16 | 28 | 5/16 | 3/8 | BUB-300-S | EF | 6,131 | |
| TBU-0620-SF | 5/8-18 | 1 | 5/16 | 1/16 | 28 | 5/16 | 3/8 | BUB-300-SF | SF | 6,131 | |
| TBU-0620-SF-T | 5/8-18 | 1 | 5/16 | 1/8 | 28 | 5/16 | 3/8 | BUB-300-SF-T | SF | 6,131 | |
| TBU-0620-S-T | 5/8-18 | 1 | 5/16 | 1/8 | 28 | 5/16 | 3/8 | BUB-300-S-T | EF | 6,131 | |
| TBU-0620X2-S | 5/8-18 | 2 | 5/16 | 1/16 | 28 | 5/16 | 3/8 | BUB-300-S | EF | 6,131 | |
| TBU-0620X2-SF | 5/8-18 | 2 | 5/16 | 1/16 | 28 | 5/16 | 3/8 | BUB-300-SF | SF | 6,131 | |
| TBU-0620X2-SF-T | 5/8-18 | 2 | 5/16 | 1/8 | 28 | 5/16 | 3/8 | BUB-300-SF-T | SF | 6,131 | |
| TBU-0620X2-S-T | 5/8-18 | 2 | 5/16 | 1/8 | 28 | 5/16 | 3/8 | BUB-300-S-T | EF | 6,131 | |
| TBU-0620X3-S | 5/8-18 | 3 | 5/16 | 1/16 | 28 | 5/16 | 3/8 | BUB-300-S | EF | 6,131 | |
| TBU-0620X3-SF | 5/8-18 | 3 | 5/16 | 1/16 | 28 | 5/16 | 3/8 | BUB-300-SF | SF | 6,131 | |
| TBU-0620X3-SF-T | 5/8-18 | 3 | 5/16 | 1/8 | 28 | 5/16 | 3/8 | BUB-300-SF-T | SF | 6,131 | |
| TBU-0620X3-S-T | 5/8-18 | 3 | 5/16 | 1/8 | 28 | 5/16 | 3/8 | BUB-300-S-T | EF | 6,131 | |
| TBU-0625-S | 5/8-11 | 1 | 5/16 | 1/16 | 28 | 5/16 | 3/8 | BUB-300-S | EF | 6,131 | |
| TBU-0625-SF | 5/8-11 | 1 | 5/16 | 1/16 | 28 | 5/16 | 3/8 | BUB-300-SF | SF | 6,131 | |
| TBU-0625-SF-T | 5/8-11 | 1 | 5/16 | 1/8 | 28 | 5/16 | 3/8 | BUB-300-SF-T | SF | 6,131 | |
| TBU-0625-S-T | 5/8-11 | 1 | 5/16 | 1/8 | 28 | 5/16 | 3/8 | BUB-300-S-T | EF | 6,131 | |
| TBU-0625X2-S | 5/8-11 | 2 | 5/16 | 1/16 | 28 | 5/16 | 3/8 | BUB-300-S | EF | 6,131 | |
| TBU-0625X2-SF | 5/8-11 | 2 | 5/16 | 1/16 | 28 | 5/16 | 3/8 | BUB-300-SF | SF | 6,131 | |
| TBU-0625X2-SF-T | 5/8-11 | 2 | 5/16 | 1/8 | 28 | 5/16 | 3/8 | BUB-300-SF-T | SF | 6,131 | |
| TBU-0625X2-S-T | 5/8-11 | 2 | 5/16 | 1/8 | 28 | 5/16 | 3/8 | BUB-300-S-T | EF | 6,131 | |
| TBU-0625X3-S | 5/8-11 | 3 | 5/16 | 1/16 | 28 | 5/16 | 3/8 | BUB-300-S | EF | 6,131 | |
| TBU-0625X3-SF | 5/8-11 | 3 | 5/16 | 1/16 | 28 | 5/16 | 3/8 | BUB-300-SF | SF | 6,131 | |
| TBU-0625X3-SF-T | 5/8-11 | 3 | 5/16 | 1/8 | 28 | 5/16 | 3/8 | BUB-300-SF-T | SF | 6,131 | |
| TBU-0625X3-S-T | 5/8-11 | 3 | 5/16 | 1/8 | 28 | 5/16 | 3/8 | BUB-300-S-T | EF | 6,131 | |
| TBU-0750-S | 3/4-16 | 1 | 3/8 | 1/8 | 40 | 3/8 | 1/2 | BUB-500-S | EF | 8,150 | |
| TBU-0750-SF | 3/4-16 | 1 | 3/8 | 1/8 | 40 | 3/8 | 1/2 | BUB-500-SF | SF | 8,150 | |
| TBU-0750-SF-T | 3/4-16 | 1 | 3/8 | 1/4 | 40 | 3/8 | 1/2 | BUB-500-SF-T | SF | 8,150 | |
| TBU-0750-S-T | 3/4-16 | 1 | 3/8 | 1/4 | 40 | 3/8 | 1/2 | BUB-500-S-T | EF | 8,150 | |
| TBU-0750X2-S | 3/4-16 | 2 | 3/8 | 1/8 | 40 | 3/8 | 1/2 | BUB-500-S | EF | 8,150 | |
| TBU-0750X2-SF | 3/4-16 | 2 | 3/8 | 1/8 | 40 | 3/8 | 1/2 | BUB-500-SF | SF | 8,150 | |
| TBU-0750X2-SF-T | 3/4-16 | 2 | 3/8 | 1/4 | 40 | 3/8 | 1/2 | BUB-500-SF-T | SF | 8,150 | |
| TBU-0750X2-S-T | 3/4-16 | 2 | 3/8 | 1/4 | 40 | 3/8 | 1/2 | BUB-500-S-T | EF | 8,150 | |
| TBU-0750X3-S | 3/4-16 | 3 | 3/8 | 1/8 | 40 | 3/8 | 1/2 | BUB-500-S | EF | 8,150 | |
| TBU-0750X3-SF | 3/4-16 | 3 | 3/8 | 1/8 | 40 | 3/8 | 1/2 | BUB-500-SF | SF | 8,150 | |
| TBU-0750X3-SF-T | 3/4-16 | 3 | 3/8 | 1/4 | 40 | 3/8 | 1/2 | BUB-500-SF-T | SF | 8,150 | |
| TBU-0750X3-S-T | 3/4-16 | 3 | 3/8 | 1/4 | 40 | 3/8 | 1/2 | BUB-500-S-T | EF | 8,150 | |
| TBU-0755-S | 3/4-10 | 1 | 3/8 | 1/8 | 40 | 3/8 | 1/2 | BUB-500-S | EF | 8,150 | |
| TBU-0755-SF | 3/4-10 | 1 | 3/8 | 1/8 | 40 | 3/8 | 1/2 | BUB-500-SF | SF | 8,150 | |
| TBU-0755-SF-T | 3/4-10 | 1 | 3/8 | 1/4 | 40 | 3/8 | 1/2 | BUB-500-SF-T | SF | 8,150 | |
| TBU-0755-S-T | 3/4-10 | 1 | 3/8 | 1/4 | 40 | 3/8 | 1/2 | BUB-500-S-T | EF | 8,150 | |
| TBU-0755X2-S | 3/4-10 | 2 | 3/8 | 1/8 | 40 | 3/8 | 1/2 | BUB-500-S | EF | 8,150 | |
| TBU-0755X2-SF | 3/4-10 | 2 | 3/8 | 1/8 | 40 | 3/8 | 1/2 | BUB-500-SF | SF | 8,150 | |
| TBU-0755X2-SF-T | 3/4-10 | 2 | 3/8 | 1/4 | 40 | 3/8 | 1/2 | BUB-500-SF-T | SF | 8,150 | |
| TBU-0755X2-S-T | 3/4-10 | 2 | 3/8 | 1/4 | 40 | 3/8 | 1/2 | BUB-500-S-T | EF | 8,150 | |
| TBU-0755X3-S | 3/4-10 | 3 | 3/8 | 1/8 | 40 | 3/8 | 1/2 | BUB-500-S | EF | 8,150 | |
| TBU-0755X3-SF | 3/4-10 | 3 | 3/8 | 1/8 | 40 | 3/8 | 1/2 | BUB-500-SF | SF | 8,150 | |
| TBU-0755X3-SF-T | 3/4-10 | 3 | 3/8 | 1/4 | 40 | 3/8 | 1/2 | BUB-500-SF-T | SF | 8,150 | |
| TBU-0755X3-S-T | 3/4-10 | 3 | 3/8 | 1/4 | 40 | 3/8 | 1/2 | BUB-500-S-T | EF | 8,150 | |
| TBU-1108-EF | 1-8 | 1 | 1/2 | 1/8 | 40 | 3/8 | 5/8 | BUB-600-EF | EF | 14,757 | |
| TBU-1108-EF-T | 1-8 | 1 | 1/2 | 1/4 | 40 | 3/8 | 5/8 | BUB-600-EF-T | EF | 14,757 | |
| TBU-1108-S | 1-8 | 1 | 1/2 | 1/8 | 40 | 3/8 | 5/8 | BUB-600-S | Fine | 14,757 | |
| TBU-1108-SF | 1-8 | 1 | 1/2 | 1/8 | 40 | 3/8 | 5/8 | BUB-600-SF | SF | 14,757 | |
| TBU-1108-SF-T | 1-8 | 1 | 1/2 | 1/4 | 40 | 3/8 | 5/8 | BUB-600-SF-T | SF | 14,757 | |
| TBU-1108-S-T | 1-8 | 1 | 1/2 | 1/4 | 40 | 3/8 | 5/8 | BUB-600-S-T | Fine | 14,757 | |
| TBU-1108X2-EF | 1-8 | 2 | 1/2 | 1/8 | 40 | 3/8 | 5/8 | BUB-600-EF | EF | 14,757 | |
| TBU-1108X2-EF-T | 1-8 | 2 | 1/2 | 1/4 | 40 | 3/8 | 5/8 | BUB-600-EF-T | EF | 14,757 | |
| TBU-1108X2-S | 1-8 | 2 | 1/2 | 1/8 | 40 | 3/8 | 5/8 | BUB-600-S | Fine | 14,757 | |
| TBU-1108X2-SF | 1-8 | 2 | 1/2 | 1/8 | 40 | 3/8 | 5/8 | BUB-600-SF | SF | 14,757 | |
| TBU-1108X2-SF-T | 1-8 | 2 | 1/2 | 1/4 | 40 | 3/8 | 5/8 | BUB-600-SF-T | SF | 14,757 | |
| TBU-1108X2-S-T | 1-8 | 2 | 1/2 | 1/4 | 40 | 3/8 | 5/8 | BUB-600-S-T | Fine | 14,757 | |
| TBU-1108X3-EF | 1-8 | 3 | 1/2 | 1/8 | 40 | 3/8 | 5/8 | BUB-600-EF | EF | 14,757 | |
| TBU-1108X3-EF-T | 1-8 | 3 | 1/2 | 1/4 | 40 | 3/8 | 5/8 | BUB-600-EF-T | EF | 14,757 | |
| TBU-1108X3-S | 1-8 | 3 | 1/2 | 1/8 | 40 | 3/8 | 5/8 | BUB-600-S | Fine | 14,757 | |
| TBU-1108X3-SF | 1-8 | 3 | 1/2 | 1/8 | 40 | 3/8 | 5/8 | BUB-600-SF | SF | 14,757 | |
| TBU-1108X3-SF-T | 1-8 | 3 | 1/2 | 1/4 | 40 | 3/8 | 5/8 | BUB-600-SF-T | SF | 14,757 | |
| TBU-1108X3-S-T | 1-8 | 3 | 1/2 | 1/4 | 40 | 3/8 | 5/8 | BUB-600-S-T | Fine | 14,757 | |
| TBU-1114-EF | 1-14 | 1 | 5/8 | 1/8 | 34 | 3/8 | 3/4 | BUB-700-EF | EF | 14,757 | |
| TBU-1114-EF-T | 1-14 | 1 | 5/8 | 1/4 | 34 | 3/8 | 3/4 | BUB-700-EF-T | EF | 14,757 | |
| TBU-1114-S | 1-14 | 1 | 5/8 | 1/8 | 34 | 3/8 | 3/4 | BUB-700-S | Fine | 14,757 | |
| TBU-1114-S-T | 1-14 | 1 | 5/8 | 1/4 | 34 | 3/8 | 3/4 | BUB-700-S-T | Fine | 14,757 | |
| TBU-1114X2-EF | 1-14 | 2 | 5/8 | 1/8 | 34 | 3/8 | 3/4 | BUB-700-EF | EF | 14,757 | |
| TBU-1114X2-EF-T | 1-14 | 2 | 5/8 | 1/4 | 34 | 3/8 | 3/4 | BUB-700-EF-T | EF | 14,757 | |
| TBU-1114X2-S | 1-14 | 2 | 5/8 | 1/8 | 34 | 3/8 | 3/4 | BUB-700-S | Fine | 14,757 | |
| TBU-1114X2-S-T | 1-14 | 2 | 5/8 | 1/4 | 34 | 3/8 | 3/4 | BUB-700-S-T | Fine | 14,757 | |
| TBU-1114X3-EF | 1-14 | 3 | 5/8 | 1/8 | 34 | 3/8 | 3/4 | BUB-700-EF | EF | 14,757 | |
| TBU-1114X3-EF-T | 1-14 | 3 | 5/8 | 1/4 | 34 | 3/8 | 3/4 | BUB-700-EF-T | EF | 14,757 | |
| TBU-1114X3-S | 1-14 | 3 | 5/8 | 1/8 | 34 | 3/8 | 3/4 | BUB-700-S | Fine | 14,757 | |
| TBU-1114X3-S-T | 1-14 | 3 | 5/8 | 1/4 | 34 | 3/8 | 3/4 | BUB-700-S-T | Fine | 14,757 |
