DuraSoft® Stud Mount Rollers - Precision Sealed Bearing - Inch

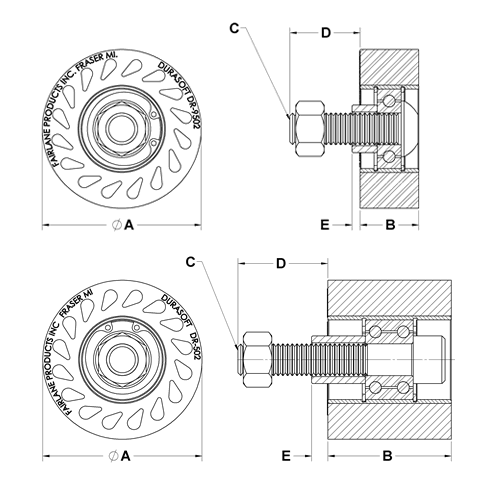

Drawing
Description
Media

Description

DuraSoft rollers have a smooth surface and are permanently bonded to a steel insert with the bearings held in place with snap rings. They come assembled with a socket head cap screw, spacer and locknut for fast easy mounting. The "teardrop" holes allow the roller to flex for firm yet nondamaging contact. Rollers are made from urethane material with hardness ranging from 35 to 95 durometer. Supplied with precision sealed bearings.

Roller Material Information

DR-9502-35UR-CPC

DuraSoft® Roller - Precision Sealed Stud Mount - 35 Dur Urethane - 2.50 in Dia X 0.92 in Wide

Part Details
CAD

Part Number	Model Name	SKU	Description	Brand	Product ID	CAD Model Link	0	1	2	3	4	5	6	7	8
DR-9502-35UR-CPC	DR-9502-35UR-CP	DR-9502-35UR-CPC	DuraSoft® Roller - Precision Sealed Stud Mount - 35 Dur Urethane - 2.50 in Dia X 0.92 in Wide	1	113787	CAD	2.50	.92	1/2-13 x 1.75 LHCS	1.10	.12	1	G	Urethane	35
DR-9502-60UR-CPC	DR-9502-35UR-CP	DR-9502-60UR-CPC	DuraSoft® Roller - Precision Sealed Stud Mount - 60 Dur Urethane - 2.50 in Dia X 0.92 in Wide	1	113797	CAD	2.50	.92	1/2-13 x 1.75 LHCS	1.10	.12	1	G	Urethane	60
DR-9502-80UR-CPC	DR-9502-35UR-CP	DR-9502-80UR-CPC	DuraSoft® Roller - Precision Sealed Stud Mount - 80 Dur Urethane - 2.50 in Dia X 0.92 in Wide	1	113809	CAD	2.50	.92	1/2-13 x 1.75 LHCS	1.10	.12	1	G	Urethane	80
DR-9502-95UR-CPC	DR-9502-35UR-CP	DR-9502-95UR-CPC	DuraSoft® Roller - Precision Sealed Stud Mount - 95 Dur Urethane - 2.50 in Dia X 0.92 in Wide	1	113835	CAD	2.50	.92	1/2-13 x 1.75 LHCS	1.10	.12	1	G	Urethane	95
DR-502-35UR-CPC	DR-9502-35UR-CP	DR-502-35UR-CPC	DuraSoft® Roller - Precision Sealed Stud Mount - 35 Dur Urethane - 2.50 in Dia X 1.94 in Wide	1	113431	CAD	2.50	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	G	Urethane	35
DR-502-60UR-CPC	DR-9502-35UR-CP	DR-502-60UR-CPC	DuraSoft® Roller - Precision Sealed Stud Mount - 60 Dur Urethane - 2.50 in Dia X 1.94 in Wide	1	113446	CAD	2.50	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	G	Urethane	60
DR-502-80UR-CPC	DR-9502-35UR-CP	DR-502-80UR-CPC	DuraSoft® Roller - Precision Sealed Stud Mount - 80 Dur Urethane - 2.50 in Dia X 1.94 in Wide	1	113482	CAD	2.50	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	G	Urethane	80
DR-502-95UR-CPC	DR-9502-35UR-CP	DR-502-95UR-CPC	DuraSoft® Roller - Precision Sealed Stud Mount - 95 Dur Urethane - 2.50 in Dia X 1.94 in Wide	1	113503	CAD	2.50	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	G	Urethane	95
DR-9754-20-CPC	DR-9754-20-CP	DR-9754-20-CPC	DuraSoft® Roller - Precision Sealed Stud Mount - 20 Dur Neoprene - 4.00 in Dia X 0.92 in Wide	1	113851	CAD	4.00	.92	1/2-13 x 1.75 LHCS	1.10	.12	1	G	Neoprene	20
DR-9754-35-CPC	DR-9754-20-CP	DR-9754-35-CPC	DuraSoft® Roller - Precision Sealed Stud Mount - 35 Dur Neoprene - 4.00 in Dia X 0.92 in Wide	1	113881	CAD	4.00	.92	1/2-13 x 1.75 LHCS	1.10	.12	1	G	Neoprene	35
DR-9754-20W-CPC	DR-9754-20-CP	DR-9754-20W-CPC	DuraSoft® Roller - Precision Sealed Stud Mount - 20 Dur Nitrile - 4.00 in Dia X 0.92 in Wide	1	113870	CAD	4.00	.92	1/2-13 x 1.75 LHCS	1.10	.12	1	G	Nitrile	20
DR-9754-35W-CPC	DR-9754-20-CP	DR-9754-35W-CPC	DuraSoft® Roller - Precision Sealed Stud Mount - 35 Dur Nitrile - 4.00 in Dia X 0.92 in Wide	1	113922	CAD	4.00	.92	1/2-13 x 1.75 LHCS	1.10	.12	1	G	Nitrile	35
DR-9754-35UR-CPC	DR-9754-20-CP	DR-9754-35UR-CPC	DuraSoft® Roller - Precision Sealed Stud Mount - 35 Dur Urethane - 4.00 in Dia X 0.92 in Wide	1	113908	CAD	4.00	.92	1/2-13 x 1.75 LHCS	1.10	.12	1	G	Urethane	35
DR-9754-60UR-CPC	DR-9754-20-CP	DR-9754-60UR-CPC	DuraSoft® Roller - Precision Sealed Stud Mount - 60 Dur Urethane - 4.00 in Dia X 0.92 in Wide	1	113934	CAD	4.00	.92	1/2-13 x 1.75 LHCS	1.10	.12	1	G	Urethane	60
DR-9754-80UR-CPC	DR-9754-20-CP	DR-9754-80UR-CPC	DuraSoft® Roller - Precision Sealed Stud Mount - 80 Dur Urethane - 4.00 in Dia X 0.92 in Wide	1	113952	CAD	4.00	.92	1/2-13 x 1.75 LHCS	1.10	.12	1	G	Urethane	80
DR-9754-95UR-CPC	DR-9754-20-CP	DR-9754-95UR-CPC	DuraSoft® Roller - Precision Sealed Stud Mount - 95 Dur Urethane - 4.00 in Dia X 0.92 in Wide	1	113970	CAD	4.00	.92	1/2-13 x 1.75 LHCS	1.10	.12	1	G	Urethane	95
DR-754-20-CPC	DR-9754-20-CP	DR-754-20-CPC	DuraSoft® Roller - Precision Sealed Stud Mount - 20 Dur Neoprene - 4.00 in Dia X 1.94 in Wide	1	113521	CAD	4.00	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	G	Neoprene	20
DR-754-35-CPC	DR-9754-20-CP	DR-754-35-CPC	DuraSoft® Roller - Precision Sealed Stud Mount - 35 Dur Neoprene - 4.00 in Dia X 1.94 in Wide	1	113637	CAD	4.00	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	G	Neoprene	35
DR-754-20W-CPC	DR-9754-20-CP	DR-754-20W-CPC	DuraSoft® Roller - Precision Sealed Stud Mount - 20 Dur Nitrile - 4.00 in Dia X 1.94 in Wide	1	113538	CAD	4.00	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	G	Nitrile	20
DR-754-35W-CPC	DR-9754-20-CP	DR-754-35W-CPC	DuraSoft® Roller - Precision Sealed Stud Mount - 35 Dur Nitrile - 4.00 in Dia X 1.94 in Wide	1	113686	CAD	4.00	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	G	Nitrile	35
DR-754-35UR-CPC	DR-9754-20-CP	DR-754-35UR-CPC	DuraSoft® Roller - Precision Sealed Stud Mount - 35 Dur Urethane - 4.00 in Dia X 1.94 in Wide	1	113657	CAD	4.00	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	G	Urethane	35
DR-754-60UR-CPC	DR-9754-20-CP	DR-754-60UR-CPC	DuraSoft® Roller - Precision Sealed Stud Mount - 60 Dur Urethane - 4.00 in Dia X 1.94 in Wide	1	113719	CAD	4.00	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	G	Urethane	60
DR-754-80UR-CPC	DR-9754-20-CP	DR-754-80UR-CPC	DuraSoft® Roller - Precision Sealed Stud Mount - 80 Dur Urethane - 4.00 in Dia X 1.94 in Wide	1	113747	CAD	4.00	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	G	Urethane	80
DR-754-95UR-CPC	DR-9754-20-CP	DR-754-95UR-CPC	DuraSoft® Roller - Precision Sealed Stud Mount - 95 Dur Urethane - 4.00 in Dia X 1.94 in Wide	1	113761	CAD	4.00	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	G	Urethane	95
