Precision Sealed Bearing (Inch)

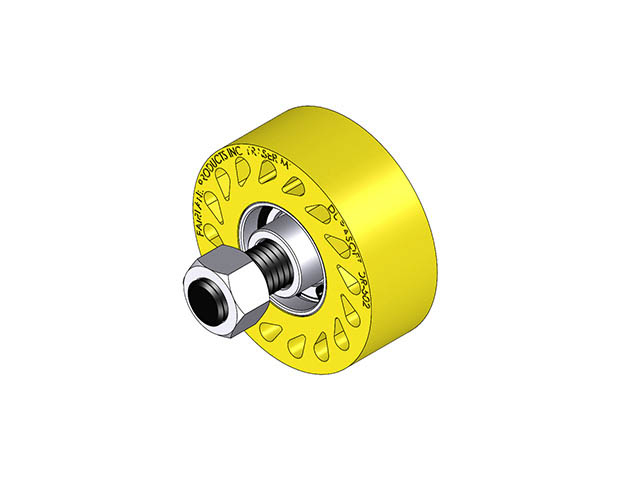

DuraSoft� Stud Mount Rollers - Precision Sealed Bearing - Inch

DR-9502-35UR-CPC
DuraSoft� Roller - Precision Sealed Stud Mount - 35 Dur Urethane - 2.50 in Dia X 0.92 in Wide

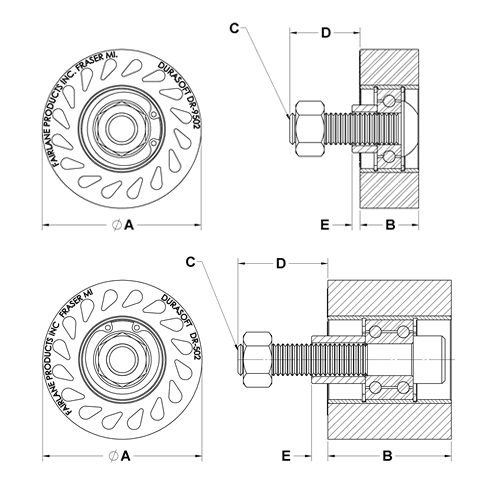

Part #	A in	B in	C Thread	D in	E in	No. of Bearings	Bearing Type	Material	Durometer Shore A
▶ DR-502-35UR-CPC	2.50	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	G	Urethane	35
▶ DR-502-60UR-CPC	2.50	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	G	Urethane	60
▶ DR-502-80UR-CPC	2.50	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	G	Urethane	80
▶ DR-502-95UR-CPC	2.50	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	G	Urethane	95
▶ DR-754-20-CPC	4.00	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	G	Neoprene	20
▶ DR-754-20W-CPC	4.00	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	G	Nitrile	20
▶ DR-754-35-CPC	4.00	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	G	Neoprene	35
▶ DR-754-35UR-CPC	4.00	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	G	Urethane	35
▶ DR-754-35W-CPC	4.00	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	G	Nitrile	35
▶ DR-754-60UR-CPC	4.00	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	G	Urethane	60
▶ DR-754-80UR-CPC	4.00	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	G	Urethane	80
▶ DR-754-95UR-CPC	4.00	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	G	Urethane	95
▶ DR-9502-35UR-CPC	2.50	.92	1/2-13 x 1.75 LHCS	1.10	.12	1	G	Urethane	35
▶ DR-9502-60UR-CPC	2.50	.92	1/2-13 x 1.75 LHCS	1.10	.12	1	G	Urethane	60
▶ DR-9502-80UR-CPC	2.50	.92	1/2-13 x 1.75 LHCS	1.10	.12	1	G	Urethane	80
▶ DR-9502-95UR-CPC	2.50	.92	1/2-13 x 1.75 LHCS	1.10	.12	1	G	Urethane	95
▶ DR-9754-20-CPC	4.00	.92	1/2-13 x 1.75 LHCS	1.10	.12	1	G	Neoprene	20
▶ DR-9754-20W-CPC	4.00	.92	1/2-13 x 1.75 LHCS	1.10	.12	1	G	Nitrile	20
▶ DR-9754-35-CPC	4.00	.92	1/2-13 x 1.75 LHCS	1.10	.12	1	G	Neoprene	35
▶ DR-9754-35UR-CPC	4.00	.92	1/2-13 x 1.75 LHCS	1.10	.12	1	G	Urethane	35
▶ DR-9754-35W-CPC	4.00	.92	1/2-13 x 1.75 LHCS	1.10	.12	1	G	Nitrile	35
▶ DR-9754-60UR-CPC	4.00	.92	1/2-13 x 1.75 LHCS	1.10	.12	1	G	Urethane	60
▶ DR-9754-80UR-CPC	4.00	.92	1/2-13 x 1.75 LHCS	1.10	.12	1	G	Urethane	80
▶ DR-9754-95UR-CPC	4.00	.92	1/2-13 x 1.75 LHCS	1.10	.12	1	G	Urethane	95
