Grippers - Threaded Adjustable - Carbide Tipped - Diamond Serration - Inch (PG)

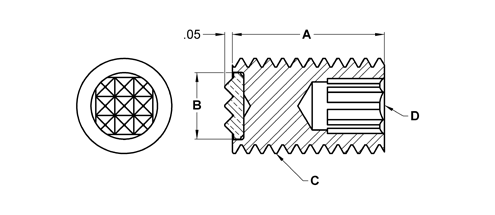

Drawing
Description
Description
The threaded body allows the user to adjust the position of the gripper. The internal hex allows for adjustment from the backside. The serrated carbide tip provides positive holding and wear resistance. The body is made from alloy steel and hardened to Rc 43/46 with a black oxide finish. The serrated carbide pad is brazed onto a pocket in the head.
Gripper Technical InformationGenerating CAD viewer. Please wait...
PG-0370
PG Adjustable Gripper - 3/8-16 X 1/2 in - Extra Fine
No file is available for download.
| Part Number | Model Name | SKU | Description | Brand | Product ID | CAD Model Link | Price Link | 0 | 1 | 2 | 3 | 4 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PG-0370 | PG-0230 | PG-0370 | PG Adjustable Gripper - 3/8-16 X 1/2 in - Extra Fine | 1 | 101355 | CAD | 1/2 | 1/4 | 3/8-16 | 3/16 | EF | |
| PG-0375 | PG-0230 | PG-0375 | PG Adjustable Gripper - 3/8-16 X 1 in - Extra Fine | 1 | 101361 | CAD | 1 | 1/4 | 3/8-16 | 3/16 | EF | |
| PG-0375X2 | PG-0230 | PG-0375X2 | PG Adjustable Gripper - 3/8-16 X 2 in - Extra Fine | 1 | 101364 | CAD | 2 | 1/4 | 3/8-16 | 3/16 | EF | |
| PG-0375X3 | PG-0230 | PG-0375X3 | PG Adjustable Gripper - 3/8-16 X 3 in - Extra Fine | 1 | 101369 | CAD | 3 | 1/4 | 3/8-16 | 3/16 | EF | |
| PG-0230 | PG-0230 | PG-0230 | PG Adjustable Gripper - 3/8-24 X 1/2 in - Extra Fine | 1 | 101316 | CAD | 1/2 | 1/4 | 3/8-24 | 3/16 | EF | |
| PG-0231 | PG-0230 | PG-0231 | PG Adjustable Gripper - 3/8-24 X 1 in - Extra Fine | 1 | 101320 | CAD | 1 | 1/4 | 3/8-24 | 3/16 | EF | |
| PG-0231X1.5 | PG-0230 | PG-0231X1.5 | PG Adjustable Gripper - 3/8-24 X 1-1/2 in - Extra Fine | 1 | 101334 | CAD | 1-1/2 | 1/4 | 3/8-24 | 3/16 | EF | |
| PG-0231X2 | PG-0230 | PG-0231X2 | PG Adjustable Gripper - 3/8-24 X 2 in - Extra Fine | 1 | 101338 | CAD | 2 | 1/4 | 3/8-24 | 3/16 | EF | |
| PG-0231X3 | PG-0230 | PG-0231X3 | PG Adjustable Gripper - 3/8-24 X 3 in - Extra Fine | 1 | 101349 | CAD | 3 | 1/4 | 3/8-24 | 3/16 | EF | |
| PG-0503 | DR-9502-35 R | PG-0503 | PG Adjustable Gripper - 1/2-20 X 3/4 in - Fine | 1 | 101479 | CAD | 3/4 | 3/8 | 1/2-20 | 1/4 | Fine | |
| PG-0513 | DR-9502-35 R | PG-0513 | PG Adjustable Gripper - 1/2-13 X 3/4 in - Fine | 1 | 101564 | CAD | 3/4 | 3/8 | 1/2-13 | 1/4 | Fine | |
| PG-0513-4 | DR-9502-35 R | PG-0513-4 | PG Adjustable Gripper - 1/2-13 X 3/4 in - 4 Point | 1 | 101572 | CAD | 3/4 | 3/8 | 1/2-13 | 1/4 | 4 Point | |
| PG-0503-EF | DR-9502-35 R | PG-0503-EF | PG Adjustable Gripper - 1/2-20 X 3/4 in - Extra Fine | 1 | 101486 | CAD | 3/4 | 3/8 | 1/2-20 | 1/4 | EF | |
| PG-0503-4 | DR-9502-35 R | PG-0503-4 | PG Adjustable Gripper - 1/2-20 X 3/4 in - 4 Point | 1 | 101485 | CAD | 3/4 | 3/8 | 1/2-20 | 1/4 | 4 Point | |
| PG-0513-EF | DR-9502-35 R | PG-0513-EF | PG Adjustable Gripper - 1/2-13 X 3/4 in - Extra Fine | 1 | 101589 | CAD | 3/4 | 3/8 | 1/2-13 | 1/4 | EF | |
| PG-0510 | PG-0230 | PG-0510 | PG Adjustable Gripper - 1/2-13 X 1 in - Fine | 1 | 101496 | CAD | 1 | 3/8 | 1/2-13 | 1/4 | Fine | |
| PG-0510-EF | PG-0230 | PG-0510-EF | PG Adjustable Gripper - 1/2-13 X 1 in - Extra Fine | 1 | 101517 | CAD | 1 | 3/8 | 1/2-13 | 1/4 | EF | |
| PG-0510-4 | PG-0230 | PG-0510-4 | PG Adjustable Gripper - 1/2-13 X 1 in - 4 Point | 1 | 101513 | CAD | 1 | 3/8 | 1/2-13 | 1/4 | 4 Point | |
| PG-0510X2 | PG-0230 | PG-0510X2 | PG Adjustable Gripper - 1/2-13 X 2 in - Fine | 1 | 101527 | CAD | 2 | 3/8 | 1/2-13 | 1/4 | Fine | |
| PG-0510X2-EF | PG-0230 | PG-0510X2-EF | PG Adjustable Gripper - 1/2-13 X 2 in - Extra Fine | 1 | 101537 | CAD | 2 | 3/8 | 1/2-13 | 1/4 | EF | |
| PG-0510X2-4 | PG-0230 | PG-0510X2-4 | PG Adjustable Gripper - 1/2-13 X 2 in - 4 Point | 1 | 101531 | CAD | 2 | 3/8 | 1/2-13 | 1/4 | 4 Point | |
| PG-0510X3 | PG-0230 | PG-0510X3 | PG Adjustable Gripper - 1/2-13 X 3 in - Fine | 1 | 101545 | CAD | 3 | 3/8 | 1/2-13 | 1/4 | Fine | |
| PG-0510X3-EF | PG-0230 | PG-0510X3-EF | PG Adjustable Gripper - 1/2-13 X 3 in - Extra Fine | 1 | 101553 | CAD | 3 | 3/8 | 1/2-13 | 1/4 | EF | |
| PG-0510X3-4 | PG-0230 | PG-0510X3-4 | PG Adjustable Gripper - 1/2-13 X 3 in - 4 Point | 1 | 101549 | CAD | 3 | 3/8 | 1/2-13 | 1/4 | 4 Point | |
| PG-0500 | PG-0230 | PG-0500 | PG Adjustable Gripper - 1/2-20 X 1 in - Fine | 1 | 101383 | CAD | 1 | 3/8 | 1/2-20 | 1/4 | Fine | |
| PG-0500-EF | PG-0230 | PG-0500-EF | PG Adjustable Gripper - 1/2-20 X 1 in - Extra Fine | 1 | 101395 | CAD | 1 | 3/8 | 1/2-20 | 1/4 | EF | |
| PG-0500-4 | PG-0230 | PG-0500-4 | PG Adjustable Gripper - 1/2-20 X 1 in - 4 Point | 1 | 101390 | CAD | 1 | 3/8 | 1/2-20 | 1/4 | 4 Point | |
| PG-0500X2 | PG-0230 | PG-0500X2 | PG Adjustable Gripper - 1/2-20 X 2 in - Fine | 1 | 101399 | CAD | 2 | 3/8 | 1/2-20 | 1/4 | Fine | |
| PG-0500X2-EF | PG-0230 | PG-0500X2-EF | PG Adjustable Gripper - 1/2-20 X 2 in - Extra Fine | 1 | 101433 | CAD | 2 | 3/8 | 1/2-20 | 1/4 | EF | |
| PG-0500X2-4 | PG-0230 | PG-0500X2-4 | PG Adjustable Gripper - 1/2-20 X 2 in - 4 Point | 1 | 101402 | CAD | 2 | 3/8 | 1/2-20 | 1/4 | 4 Point | |
| PG-0500X3 | PG-0230 | PG-0500X3 | PG Adjustable Gripper - 1/2-20 X 3 in - Fine | 1 | 101448 | CAD | 3 | 3/8 | 1/2-20 | 1/4 | Fine | |
| PG-0500X3-EF | PG-0230 | PG-0500X3-EF | PG Adjustable Gripper - 1/2-20 X 3 in - Extra Fine | 1 | 101467 | CAD | 3 | 3/8 | 1/2-20 | 1/4 | EF | |
| PG-0500X3-4 | PG-0230 | PG-0500X3-4 | PG Adjustable Gripper - 1/2-20 X 3 in - 4 Point | 1 | 101453 | CAD | 3 | 3/8 | 1/2-20 | 1/4 | 4 Point | |
| PG-0625 | PG-0230 | PG-0625 | PG Adjustable Gripper - 5/8-11 X 1 in - Fine | 1 | 101722 | CAD | 1 | 7/16 | 5/8-11 | 5/16 | Fine | |
| PG-0625-EF | PG-0230 | PG-0625-EF | PG Adjustable Gripper - 5/8-11 X 1 in - Extra Fine | 1 | 101726 | CAD | 1 | 7/16 | 5/8-11 | 5/16 | EF | |
| PG-0625-4 | PG-0230 | PG-0625-4 | PG Adjustable Gripper - 5/8-11 X 1 in - Fine | 1 | 101724 | CAD | 1 | 7/16 | 5/8-11 | 5/16 | 4 Point | |
| PG-0625X2 | PG-0230 | PG-0625X2 | PG Adjustable Gripper - 5/8-11 X 2 in - Fine | 1 | 101728 | CAD | 2 | 7/16 | 5/8-11 | 5/16 | Fine | |
| PG-0625X2-EF | PG-0230 | PG-0625X2-EF | PG Adjustable Gripper - 5/8-11 X 2 in - Extra Fine | 1 | 101740 | CAD | 2 | 7/16 | 5/8-11 | 5/16 | EF | |
| PG-0625X2-4 | PG-0230 | PG-0625X2-4 | PG Adjustable Gripper - 5/8-11 X 2 in - 4 Point | 1 | 101732 | CAD | 2 | 7/16 | 5/8-11 | 5/16 | 4 Point | |
| PG-0625X3 | PG-0230 | PG-0625X3 | PG Adjustable Gripper - 5/8-11 X 3 in - Fine | 1 | 101747 | CAD | 3 | 7/16 | 5/8-11 | 5/16 | Fine | |
| PG-0625X3-EF | PG-0230 | PG-0625X3-EF | PG Adjustable Gripper - 5/8-11 X 3 in - Extra Fine | 1 | 101760 | CAD | 3 | 7/16 | 5/8-11 | 5/16 | EF | |
| PG-0625X3-4 | PG-0230 | PG-0625X3-4 | PG Adjustable Gripper - 5/8-11 X 3 in - 4 Point | 1 | 101751 | CAD | 3 | 7/16 | 5/8-11 | 5/16 | 4 Point | |
| PG-0620 | PG-0230 | PG-0620 | PG Adjustable Gripper - 5/8-18 X 1 in - Fine | 1 | 101602 | CAD | 1 | 1/2 | 5/8-18 | 5/16 | Fine | |
| PG-0620-EF | PG-0230 | PG-0620-EF | PG Adjustable Gripper - 5/8-18 X 1 in - Extra Fine | 1 | 101628 | CAD | 1 | 1/2 | 5/8-18 | 5/16 | EF | |
| PG-0620-4 | PG-0230 | PG-0620-4 | PG Adjustable Gripper - 5/8-18 X 1 in - 4 Point | 1 | 101619 | CAD | 1 | 1/2 | 5/8-18 | 5/16 | 4 Point | |
| PG-0620X1.75 | PG-0230 | PG-0620X1.75 | PG Adjustable Gripper - 5/8-18 X 1-3/4 in - Fine | 1 | 101630 | CAD | 1-3/4 | 1/2 | 5/8-18 | 5/16 | Fine | |
| PG-0620X1.75-EF | PG-0230 | PG-0620X1.75-EF | PG Adjustable Gripper - 5/8-18 X 1-3/4 in - Extra Fine | 1 | 101656 | CAD | 1-3/4 | 1/2 | 5/8-18 | 5/16 | EF | |
| PG-0620X1.75-4 | PG-0230 | PG-0620X1.75-4 | PG Adjustable Gripper - 5/8-18 X 1-3/4 in - 4 Point | 1 | 101645 | CAD | 1-3/4 | 1/2 | 5/8-18 | 5/16 | 4 Point | |
| PG-0620X2 | PG-0230 | PG-0620X2 | PG Adjustable Gripper - 5/8-18 X 2 in - Fine | 1 | 101675 | CAD | 2 | 1/2 | 5/8-18 | 5/16 | Fine | |
| PG-0620X2-EF | PG-0230 | PG-0620X2-EF | PG Adjustable Gripper - 5/8-18 X 2 in - Extra Fine | 1 | 101696 | CAD | 2 | 1/2 | 5/8-18 | 5/16 | EF | |
| PG-0620X2-4 | PG-0230 | PG-0620X2-4 | PG Adjustable Gripper - 5/8-18 X 2 in - 4 Point | 1 | 101693 | CAD | 2 | 1/2 | 5/8-18 | 5/16 | 4 Point | |
| PG-0620X3 | PG-0230 | PG-0620X3 | PG Adjustable Gripper - 5/8-18 X 3 in - Fine | 1 | 101698 | CAD | 3 | 1/2 | 5/8-18 | 5/16 | Fine | |
| PG-0620X3-EF | PG-0230 | PG-0620X3-EF | PG Adjustable Gripper - 5/8-18 X 3 in - Extra Fine | 1 | 101720 | CAD | 3 | 1/2 | 5/8-18 | 5/16 | EF | |
| PG-0620X3-4 | PG-0230 | PG-0620X3-4 | PG Adjustable Gripper - 5/8-18 X 3 in - 4 Point | 1 | 101706 | CAD | 3 | 1/2 | 5/8-18 | 5/16 | 4 Point | |
| PG-0755 | PG-0230 | PG-0755 | PG Adjustable Gripper - 3/4-10 X 1 in - Fine | 1 | 101846 | CAD | 1 | 1/2 | 3/4-10 | 3/8 | Fine | |
| PG-0755-EF | PG-0230 | PG-0755-EF | PG Adjustable Gripper - 3/4-10 X 1 in - Extra Fine | 1 | 101866 | CAD | 1 | 1/2 | 3/4-10 | 3/8 | EF | |
| PG-0755-4 | PG-0230 | PG-0755-4 | PG Adjustable Gripper - 3/4-10 X 1 in - 4 Point | 1 | 101851 | CAD | 1 | 1/2 | 3/4-10 | 3/8 | 4 Point | |
| PG-0755X2 | PG-0230 | PG-0755X2 | PG Adjustable Gripper - 3/4-10 X 2 in - Fine | 1 | 101875 | CAD | 2 | 1/2 | 3/4-10 | 3/8 | Fine | |
| PG-0755X2-EF | PG-0230 | PG-0755X2-EF | PG Adjustable Gripper - 3/4-10 X 2 in - Extra Fine | 1 | 101884 | CAD | 2 | 1/2 | 3/4-10 | 3/8 | EF | |
| PG-0755X2-4 | PG-0230 | PG-0755X2-4 | PG Adjustable Gripper - 3/4-10 X 2 in - 4 Point | 1 | 101881 | CAD | 2 | 1/2 | 3/4-10 | 3/8 | 4 Point | |
| PG-0755X3 | PG-0230 | PG-0755X3 | PG Adjustable Gripper - 3/4-10 X 3 in - Fine | 1 | 101886 | CAD | 3 | 1/2 | 3/4-10 | 3/8 | Fine | |
| PG-0755X3-EF | PG-0230 | PG-0755X3-EF | PG Adjustable Gripper - 3/4-10 X 3 in - Extra Fine | 1 | 101911 | CAD | 3 | 1/2 | 3/4-10 | 3/8 | EF | |
| PG-0755X3-4 | PG-0230 | PG-0755X3-4 | PG Adjustable Gripper - 3/4-10 X 3 in - 4 Point | 1 | 101905 | CAD | 3 | 1/2 | 3/4-10 | 3/8 | 4 Point | |
| PG-0750 | PG-0230 | PG-0750 | PG Adjustable Gripper - 3/4-16 X 1 in - Fine | 1 | 101765 | CAD | 1 | 1/2 | 3/4-16 | 3/8 | Fine | |
| PG-0750-EF | PG-0230 | PG-0750-EF | PG Adjustable Gripper - 3/4-16 X 1 in - Extra Fine | 1 | 101800 | CAD | 1 | 1/2 | 3/4-16 | 3/8 | EF | |
| PG-0750-4 | PG-0230 | PG-0750-4 | PG Adjustable Gripper - 3/4-16 X 1 in - 4 Point | 1 | 101789 | CAD | 1 | 1/2 | 3/4-16 | 3/8 | 4 Point | |
| PG-0750X2 | PG-0230 | PG-0750X2 | PG Adjustable Gripper - 3/4-16 X 2 in - Fine | 1 | 101813 | CAD | 2 | 1/2 | 3/4-16 | 3/8 | Fine | |
| PG-0750X2-EF | PG-0230 | PG-0750X2-EF | PG Adjustable Gripper - 3/4-16 X 2 in - Extra Fine | 1 | 101828 | CAD | 2 | 1/2 | 3/4-16 | 3/8 | EF | |
| PG-0750X2-4 | PG-0230 | PG-0750X2-4 | PG Adjustable Gripper - 3/4-16 X 2 in - 4 Point | 1 | 101817 | CAD | 2 | 1/2 | 3/4-16 | 3/8 | 4 Point | |
| PG-0750X3 | PG-0230 | PG-0750X3 | PG Adjustable Gripper - 3/4-16 X 3 in - Fine | 1 | 101830 | CAD | 3 | 1/2 | 3/4-16 | 3/8 | Fine | |
| PG-0750X3-EF | PG-0230 | PG-0750X3-EF | PG Adjustable Gripper - 3/4-16 X 3 in - Extra Fine | 1 | 101835 | CAD | 3 | 1/2 | 3/4-16 | 3/8 | EF | |
| PG-0750X3-4 | PG-0230 | PG-0750X3-4 | PG Adjustable Gripper - 3/4-16 X 3 in - 4 Point | 1 | 101832 | CAD | 3 | 1/2 | 3/4-16 | 3/8 | 4 Point |
