Grippers - Threaded Adjustable - Carbide Tipped - Diamond Serration - Inch (PG)
PG-0370

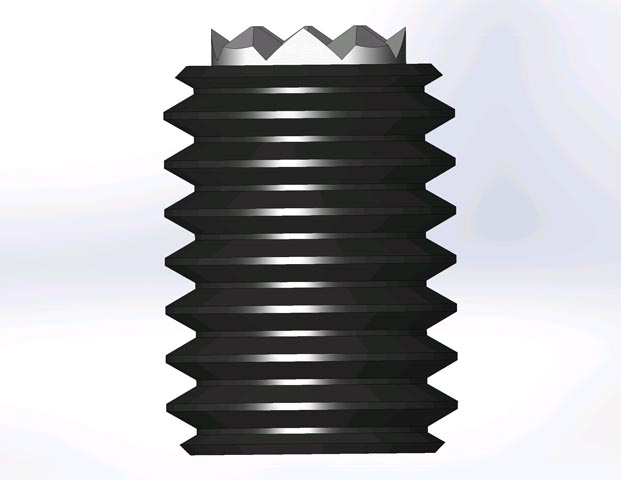

PG Adjustable Gripper - 3/8-16 X 1/2 in - Extra Fine

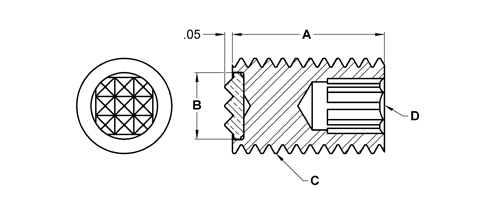

| Part # | A Thread Length in | B Contact Diameter in | C Thread | D Int Hex in |
||
|---|---|---|---|---|---|---|
| PG-0230 | 1/2 | 1/4 | 3/8-24 | 3/16 | EF | |
| PG-0231 | 1 | 1/4 | 3/8-24 | 3/16 | EF | |
| PG-0231X1.5 | 1-1/2 | 1/4 | 3/8-24 | 3/16 | EF | |
| PG-0231X2 | 2 | 1/4 | 3/8-24 | 3/16 | EF | |
| PG-0231X3 | 3 | 1/4 | 3/8-24 | 3/16 | EF | |
| PG-0370 | 1/2 | 1/4 | 3/8-16 | 3/16 | EF | |
| PG-0375 | 1 | 1/4 | 3/8-16 | 3/16 | EF | |
| PG-0375X2 | 2 | 1/4 | 3/8-16 | 3/16 | EF | |
| PG-0375X3 | 3 | 1/4 | 3/8-16 | 3/16 | EF | |
| PG-0500 | 1 | 3/8 | 1/2-20 | 1/4 | Fine | |
| PG-0500-4 | 1 | 3/8 | 1/2-20 | 1/4 | 4 Point | |
| PG-0500-EF | 1 | 3/8 | 1/2-20 | 1/4 | EF | |
| PG-0500X2 | 2 | 3/8 | 1/2-20 | 1/4 | Fine | |
| PG-0500X2-4 | 2 | 3/8 | 1/2-20 | 1/4 | 4 Point | |
| PG-0500X2-EF | 2 | 3/8 | 1/2-20 | 1/4 | EF | |
| PG-0500X3 | 3 | 3/8 | 1/2-20 | 1/4 | Fine | |
| PG-0500X3-4 | 3 | 3/8 | 1/2-20 | 1/4 | 4 Point | |
| PG-0500X3-EF | 3 | 3/8 | 1/2-20 | 1/4 | EF | |
| PG-0503 | 3/4 | 3/8 | 1/2-20 | 1/4 | Fine | |
| PG-0503-4 | 3/4 | 3/8 | 1/2-20 | 1/4 | 4 Point | |
| PG-0503-EF | 3/4 | 3/8 | 1/2-20 | 1/4 | EF | |
| PG-0510 | 1 | 3/8 | 1/2-13 | 1/4 | Fine | |
| PG-0510-4 | 1 | 3/8 | 1/2-13 | 1/4 | 4 Point | |
| PG-0510-EF | 1 | 3/8 | 1/2-13 | 1/4 | EF | |
| PG-0510X2 | 2 | 3/8 | 1/2-13 | 1/4 | Fine | |
| PG-0510X2-4 | 2 | 3/8 | 1/2-13 | 1/4 | 4 Point | |
| PG-0510X2-EF | 2 | 3/8 | 1/2-13 | 1/4 | EF | |
| PG-0510X3 | 3 | 3/8 | 1/2-13 | 1/4 | Fine | |
| PG-0510X3-4 | 3 | 3/8 | 1/2-13 | 1/4 | 4 Point | |
| PG-0510X3-EF | 3 | 3/8 | 1/2-13 | 1/4 | EF | |
| PG-0513 | 3/4 | 3/8 | 1/2-13 | 1/4 | Fine | |
| PG-0513-4 | 3/4 | 3/8 | 1/2-13 | 1/4 | 4 Point | |
| PG-0513-EF | 3/4 | 3/8 | 1/2-13 | 1/4 | EF | |
| PG-0620 | 1 | 1/2 | 5/8-18 | 5/16 | Fine | |
| PG-0620-4 | 1 | 1/2 | 5/8-18 | 5/16 | 4 Point | |
| PG-0620-EF | 1 | 1/2 | 5/8-18 | 5/16 | EF | |
| PG-0620X1.75 | 1-3/4 | 1/2 | 5/8-18 | 5/16 | Fine | |
| PG-0620X1.75-4 | 1-3/4 | 1/2 | 5/8-18 | 5/16 | 4 Point | |
| PG-0620X1.75-EF | 1-3/4 | 1/2 | 5/8-18 | 5/16 | EF | |
| PG-0620X2 | 2 | 1/2 | 5/8-18 | 5/16 | Fine | |
| PG-0620X2-4 | 2 | 1/2 | 5/8-18 | 5/16 | 4 Point | |
| PG-0620X2-EF | 2 | 1/2 | 5/8-18 | 5/16 | EF | |
| PG-0620X3 | 3 | 1/2 | 5/8-18 | 5/16 | Fine | |
| PG-0620X3-4 | 3 | 1/2 | 5/8-18 | 5/16 | 4 Point | |
| PG-0620X3-EF | 3 | 1/2 | 5/8-18 | 5/16 | EF | |
| PG-0625 | 1 | 7/16 | 5/8-11 | 5/16 | Fine | |
| PG-0625-4 | 1 | 7/16 | 5/8-11 | 5/16 | 4 Point | |
| PG-0625-EF | 1 | 7/16 | 5/8-11 | 5/16 | EF | |
| PG-0625X2 | 2 | 7/16 | 5/8-11 | 5/16 | Fine | |
| PG-0625X2-4 | 2 | 7/16 | 5/8-11 | 5/16 | 4 Point | |
| PG-0625X2-EF | 2 | 7/16 | 5/8-11 | 5/16 | EF | |
| PG-0625X3 | 3 | 7/16 | 5/8-11 | 5/16 | Fine | |
| PG-0625X3-4 | 3 | 7/16 | 5/8-11 | 5/16 | 4 Point | |
| PG-0625X3-EF | 3 | 7/16 | 5/8-11 | 5/16 | EF | |
| PG-0750 | 1 | 1/2 | 3/4-16 | 3/8 | Fine | |
| PG-0750-4 | 1 | 1/2 | 3/4-16 | 3/8 | 4 Point | |
| PG-0750-EF | 1 | 1/2 | 3/4-16 | 3/8 | EF | |
| PG-0750X2 | 2 | 1/2 | 3/4-16 | 3/8 | Fine | |
| PG-0750X2-4 | 2 | 1/2 | 3/4-16 | 3/8 | 4 Point | |
| PG-0750X2-EF | 2 | 1/2 | 3/4-16 | 3/8 | EF | |
| PG-0750X3 | 3 | 1/2 | 3/4-16 | 3/8 | Fine | |
| PG-0750X3-4 | 3 | 1/2 | 3/4-16 | 3/8 | 4 Point | |
| PG-0750X3-EF | 3 | 1/2 | 3/4-16 | 3/8 | EF | |
| PG-0755 | 1 | 1/2 | 3/4-10 | 3/8 | Fine | |
| PG-0755-4 | 1 | 1/2 | 3/4-10 | 3/8 | 4 Point | |
| PG-0755-EF | 1 | 1/2 | 3/4-10 | 3/8 | EF | |
| PG-0755X2 | 2 | 1/2 | 3/4-10 | 3/8 | Fine | |
| PG-0755X2-4 | 2 | 1/2 | 3/4-10 | 3/8 | 4 Point | |
| PG-0755X2-EF | 2 | 1/2 | 3/4-10 | 3/8 | EF | |
| PG-0755X3 | 3 | 1/2 | 3/4-10 | 3/8 | Fine | |
| PG-0755X3-4 | 3 | 1/2 | 3/4-10 | 3/8 | 4 Point | |
| PG-0755X3-EF | 3 | 1/2 | 3/4-10 | 3/8 | EF |
PG-ADJUSTABLE GRIPPER with solid carbide pad brazed into pocket
