MBBU-1012-F |
MBBU-1012-F |
MBBU-1012-F |

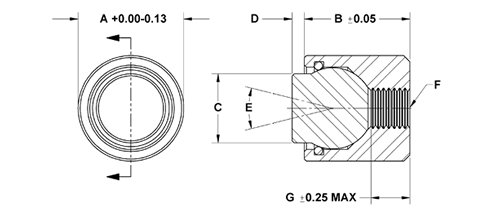

Base Design Swivot - 10 mm Dia X 10.5 mm - Flat |
1 |
101804 |
CAD |
|
10 | 10.5 | 6 | 1.5 | 28 | M4x0.7 | 3.5 | 7 | MBUB-070-F | 2,585 |
MBBU-1012-F-T |
MBBU-1012-F |
MBBU-1012-F-T |
Base Design Swivot - 10 mm Dia X 10.5 mm - Flat - Tall |
1 |
101807 |
CAD |
|
10 | 10.5 | 6 | 3 | 28 | M4x0.7 | 3.5 | 7 | MBUB-070-F-T | 2,585 |
MBBU-1025-F |
MBBU-1012-F |
MBBU-1025-F |
Base Design Swivot - 10 mm Dia X 23.5 mm - Flat |
1 |
101869 |
CAD |
|
10 | 23.5 | 6 | 1.5 | 28 | M4x0.7 | 9 | 7 | MBUB-070-F | 2,585 |
MBBU-1025-F-T |
MBBU-1012-F |
MBBU-1025-F-T |
Base Design Swivot - 10 mm Dia X 23.5 mm - Flat - Tall |
1 |
101871 |
CAD |
|
10 | 23.5 | 6 | 3 | 28 | M4x0.7 | 9 | 7 | MBUB-070-F-T | 2,585 |
MBBU-1316-F |
MBBU-1012-F |
MBBU-1316-F |
Base Design Swivot - 13 mm Dia X 14.5 mm - Flat |
1 |
101943 |
CAD |
|
13 | 14.5 | 8.5 | 1.5 | 24 | M5x0.8 | 6.5 | 10 | MBUB-100-F | 4,452 |
MBBU-1316-F-T |
MBBU-1012-F |
MBBU-1316-F-T |
Base Design Swivot - 13 mm Dia X 14.5 mm - Flat - Tall |
1 |
101946 |
CAD |
|
13 | 14.5 | 8.5 | 3 | 24 | M5x0.8 | 6.5 | 10 | MBUB-100-F-T | 4,452 |
MBBU-1325-F |
MBBU-1012-F |
MBBU-1325-F |
Base Design Swivot - 13 mm Dia X 23.5 mm - Flat |
1 |
101997 |
CAD |
|
13 | 23.5 | 8.5 | 1.5 | 24 | M5x0.8 | 9 | 10 | MBUB-100-F | 4,452 |
MBBU-1325-F-T |
MBBU-1012-F |
MBBU-1325-F-T |
Base Design Swivot - 13 mm Dia X 23.5 mm - Flat - Tall |
1 |
102011 |
CAD |
|
13 | 23.5 | 8.5 | 3 | 24 | M5x0.8 | 9 | 10 | MBUB-100-F-T | 4,452 |
MBBU-1722-F |
MBBU-1012-F |
MBBU-1722-F |
Base Design Swivot - 17 mm Dia X 18 mm - Flat |
1 |
102065 |
CAD |
|
17 | 18 | 10 | 4 | 42 | M6x1.0 | 7.5 | 13 | MBUB-130-F | 6,170 |
MBBU-1722-F-T |
MBBU-1012-F |
MBBU-1722-F-T |
Base Design Swivot - 17 mm Dia X 18 mm - Flat - Tall |
1 |
102073 |
CAD |
|
17 | 18 | 10 | 6 | 42 | M6x1.0 | 7.5 | 13 | MBUB-130-F-T | 6,170 |
MBBU-1924-F |
MBBU-1012-F |
MBBU-1924-F |
Base Design Swivot - 19 mm Dia X 20 mm - Flat |
1 |
102144 |
CAD |
|
19 | 20 | 12 | 4 | 45 | M8x1.25 | 8.5 | 15 | MBUB-150-F | 8,688 |
MBBU-1924-F-T |
MBBU-1012-F |
MBBU-1924-F-T |
Base Design Swivot - 19 mm Dia X 20 mm - Flat - Tall |
1 |
102155 |
CAD |
|
19 | 20 | 12 | 6 | 45 | M8x1.25 | 8.5 | 15 | MBUB-150-F-T | 8,688 |
MBBU-2428-F |
MBBU-1012-F |
MBBU-2428-F |
Base Design Swivot - 24 mm Dia X 20 mm - Flat |
1 |
101847 |
CAD |
|
24 | 24 | 16 | 4 | 40 | M10x1.5 | 9 | 20 | MBUB-200-F | 13,117 |
MBBU-2428-F-T |
MBBU-1012-F |
MBBU-2428-F-T |
Base Design Swivot - 249 mm Dia X 20 mm - Flat - Tall |
1 |
101861 |
CAD |
|
24 | 24 | 16 | 6 | 40 | M10x1.5 | 9 | 20 | MBUB-200-F-T | 13,117 |
