Base Design Swivots® Gripper Assembly - Flat Tool Steel Ball - Metric (MBBU-F)
MBBU-1012-F

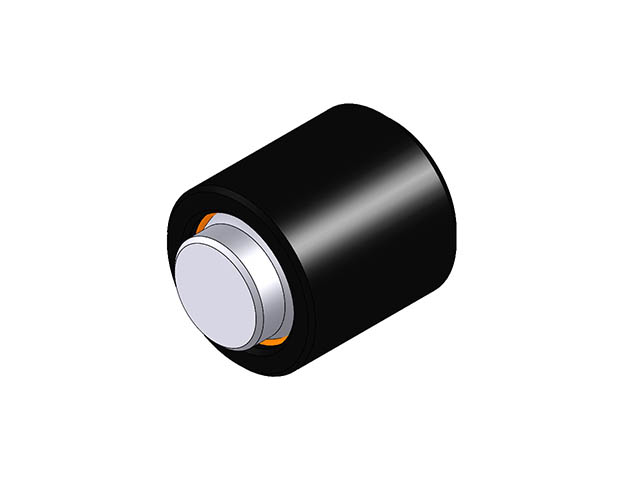

Base Design Swivot - 10 mm Dia X 10.5 mm - Flat

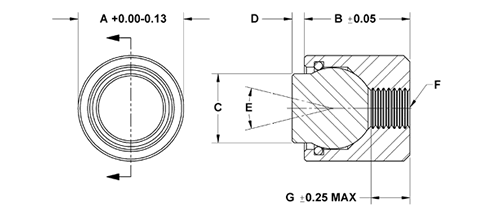

| Part # | A Dia mm | B Length mm | C Contact Dia mm | D Standoff mm | E Swivel Degrees | F Tap | G Thread Length mm | Ball Dia mm | Ball Only Part No. mm | Load Rating lbs |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| MBBU-1012-F | 10 | 10.5 | 6 | 1.5 | 28 | M4x0.7 | 3.5 | 7 | MBUB-070-F | 2,585 | |
| MBBU-1012-F-T | 10 | 10.5 | 6 | 3 | 28 | M4x0.7 | 3.5 | 7 | MBUB-070-F-T | 2,585 | |
| MBBU-1025-F | 10 | 23.5 | 6 | 1.5 | 28 | M4x0.7 | 9 | 7 | MBUB-070-F | 2,585 | |
| MBBU-1025-F-T | 10 | 23.5 | 6 | 3 | 28 | M4x0.7 | 9 | 7 | MBUB-070-F-T | 2,585 | |
| MBBU-1316-F | 13 | 14.5 | 8.5 | 1.5 | 24 | M5x0.8 | 6.5 | 10 | MBUB-100-F | 4,452 | |
| MBBU-1316-F-T | 13 | 14.5 | 8.5 | 3 | 24 | M5x0.8 | 6.5 | 10 | MBUB-100-F-T | 4,452 | |
| MBBU-1325-F | 13 | 23.5 | 8.5 | 1.5 | 24 | M5x0.8 | 9 | 10 | MBUB-100-F | 4,452 | |
| MBBU-1325-F-T | 13 | 23.5 | 8.5 | 3 | 24 | M5x0.8 | 9 | 10 | MBUB-100-F-T | 4,452 | |
| MBBU-1722-F | 17 | 18 | 10 | 4 | 42 | M6x1.0 | 7.5 | 13 | MBUB-130-F | 6,170 | |
| MBBU-1722-F-T | 17 | 18 | 10 | 6 | 42 | M6x1.0 | 7.5 | 13 | MBUB-130-F-T | 6,170 | |
| MBBU-1924-F | 19 | 20 | 12 | 4 | 45 | M8x1.25 | 8.5 | 15 | MBUB-150-F | 8,688 | |
| MBBU-1924-F-T | 19 | 20 | 12 | 6 | 45 | M8x1.25 | 8.5 | 15 | MBUB-150-F-T | 8,688 | |
| MBBU-2428-F | 24 | 24 | 16 | 4 | 40 | M10x1.5 | 9 | 20 | MBUB-200-F | 13,117 | |
| MBBU-2428-F-T | 24 | 24 | 16 | 6 | 40 | M10x1.5 | 9 | 20 | MBUB-200-F-T | 13,117 |
