Home
>
Workholding & Positioning
>
Grippers
>
Fixed/Non-Adjustable
>
HS - Tool Steel
>
Edge Straight Serration (Metric)
Grippers - Edge Gripper - Tool Steel - Straight Serration - C'Bore - Metric (MHSE-SS)

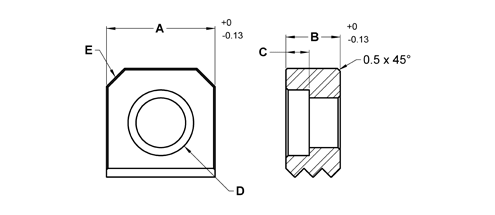

Drawing
Drawing
Description
Media
Description
Made from M-2 high speed steel. Hardened to Rc 60/62 with black oxide finish. Square edge grippers have serrations on one side. Counter bored hole for front mounting with a socket head or low head cap screw.
Gripper Technical Information
Generating CAD viewer. Please wait...
MHSE-9106-SS
Tool Steel Gripper - Edge - 10 mm X 6 mm - Extra Fine Straight
Part Details
Part Details
CAD
Show More...
No file is available for download.
Part Number
Model Name
SKU
Description
Brand
Product ID
CAD Model Link
Price Link
0
1
2
3
4
5
MHSE-9106-SS
MHSE-9106-SS
MHSE-9106-SS
Tool Steel Gripper - Edge - 10 mm X 6 mm - Extra Fine Straight
1
100235
CAD
10
6
3.75
M3 SHCS
1.6x45°
EF
MHSE-9100-SS
MHSE-9106-SS
MHSE-9100-SS
Tool Steel Gripper - Edge - 10 mm X 10 mm - Extra Fine Straight
1
100206
CAD
10
10
3.75
M3 SHCS
1.6x45°
EF
MHSE-9126-SS
MHSE-9106-SS
MHSE-9126-SS
Tool Steel Gripper - Edge - 12 mm X 6 mm - Fine Straight
1
100272
CAD
12
6
4.06
M4 SHCS
2.3x45°
Fine
MHSE-9120-SS
MHSE-9106-SS
MHSE-9120-SS
Tool Steel Gripper - Edge - 12 mm X 10 mm - Fine Straight
1
100241
CAD
12
10
4.06
M4 SHCS
2.3x45°
Fine
MHSE-9122-SS
MHSE-9106-SS
MHSE-9122-SS
Tool Steel Gripper - Edge - 12 mm X 12 mm - Fine Straight
1
100246
CAD
12
12
4.06
M4 SHCS
2.3x45°
Fine
MHSE-9166-SS
MHSE-9106-SS
MHSE-9166-SS
Tool Steel Gripper - Edge - 16 mm X 6 mm - Fine Straight
1
100331
CAD
16
6
4.2
M6 LHCS
3.2x45°
Fine
MHSE-9160-SS
MHSE-9106-SS
MHSE-9160-SS
Tool Steel Gripper - Edge - 16 mm X 10 mm - Fine Straight
1
100293
CAD
16
10
4.2
M6 LHCS
3.2x45°
Fine
MHSE-9162-SS
MHSE-9106-SS
MHSE-9162-SS
Tool Steel Gripper - Edge - 16 mm X 12 mm - Fine Straight
1
100317
CAD
16
12
4.2
M6 LHCS
3.2x45°
Fine
MHSE-9206-SS
MHSE-9106-SS
MHSE-9206-SS
Tool Steel Gripper - Edge - 20 mm X 6 mm - Fine Straight
1
100360
CAD
20
6
5.08
M8 LHCS
3.2x45°
Fine
MHSE-9200-SS
MHSE-9106-SS
MHSE-9200-SS
Tool Steel Gripper - Edge - 20 mm X 10 mm - Fine Straight
1
100340
CAD
20
10
5.08
M8 LHCS
3.2x45°
Fine
MHSE-9202-SS
MHSE-9106-SS
MHSE-9202-SS
Tool Steel Gripper - Edge - 20 mm X 12 mm - Fine Straight
1
100350
CAD
20
12
5.08
M8 LHCS
3.2x45°
Fine
MHSE-9250-SS
MHSE-9106-SS
MHSE-9250-SS
Tool Steel Gripper - Edge - 25 mm X 10 mm - Fine Straight
1
100367
CAD
25
10
6.6
M10 LHCS
3.2x45°
Fine
MHSE-9252-SS
MHSE-9106-SS
MHSE-9252-SS
Tool Steel Gripper - Edge - 25 mm X 12 mm - Fine Straight
1
100379
CAD
25
12
6.6
M10 LHCS
3.2x45°
Fine
Edge Straight Serration (Metric)
BUY
CAD
Part Number
A
Width
mm
+0/-0.13
B
Height
mm
+0/-0.13
C
C'Bore
mm
D
C'Bore
For
E
Chamfer
mm
Tooth
Pattern
CAD
MHSE-9106-SS
10
6
3.75
M3 SHCS
1.6x45°
EF
CAD
MHSE-9100-SS
10
10
3.75
M3 SHCS
1.6x45°
EF
CAD
MHSE-9126-SS
12
6
4.06
M4 SHCS
2.3x45°
Fine
CAD
MHSE-9120-SS
12
10
4.06
M4 SHCS
2.3x45°
Fine
CAD
MHSE-9122-SS
12
12
4.06
M4 SHCS
2.3x45°
Fine
CAD
MHSE-9166-SS
16
6
4.2
M6 LHCS
3.2x45°
Fine
CAD
MHSE-9160-SS
16
10
4.2
M6 LHCS
3.2x45°
Fine
CAD
MHSE-9162-SS
16
12
4.2
M6 LHCS
3.2x45°
Fine
CAD
MHSE-9206-SS
20
6
5.08
M8 LHCS
3.2x45°
Fine
CAD
MHSE-9200-SS
20
10
5.08
M8 LHCS
3.2x45°
Fine
CAD
MHSE-9202-SS
20
12
5.08
M8 LHCS
3.2x45°
Fine
CAD
MHSE-9250-SS
25
10
6.6
M10 LHCS
3.2x45°
Fine
CAD
MHSE-9252-SS
25
12
6.6
M10 LHCS
3.2x45°
Fine
