Grippers - Edge Gripper - Tool Steel - Straight Serration - C'Bore - Metric (MHSE-SS)
MHSE-9106-SS

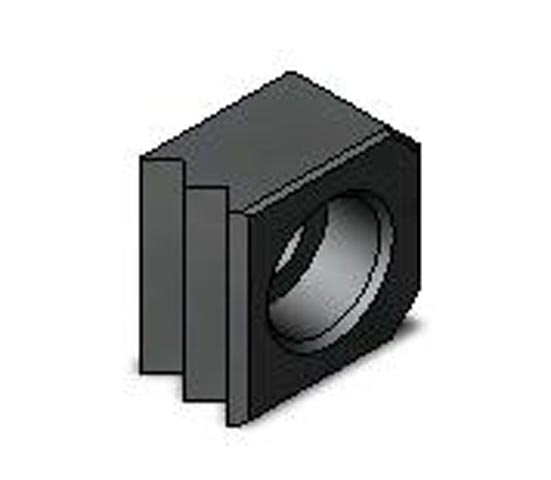

Tool Steel Gripper - Edge - 10 mm X 6 mm - Extra Fine Straight

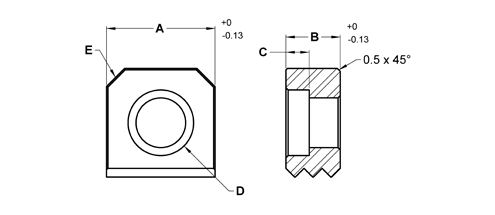

| Part # | A Width mm | B Height mm | C C'Bore mm | D C'Bore For | E Chamfer mm | Tooth Pattern |
|
|---|---|---|---|---|---|---|---|
| MHSE-9100-SS | 10 | 10 | 3.75 | M3 SHCS | 1.6x45° | EF | |
| MHSE-9106-SS | 10 | 6 | 3.75 | M3 SHCS | 1.6x45° | EF | |
| MHSE-9120-SS | 12 | 10 | 4.06 | M4 SHCS | 2.3x45° | Fine | |
| MHSE-9122-SS | 12 | 12 | 4.06 | M4 SHCS | 2.3x45° | Fine | |
| MHSE-9126-SS | 12 | 6 | 4.06 | M4 SHCS | 2.3x45° | Fine | |
| MHSE-9160-SS | 16 | 10 | 4.2 | M6 LHCS | 3.2x45° | Fine | |
| MHSE-9162-SS | 16 | 12 | 4.2 | M6 LHCS | 3.2x45° | Fine | |
| MHSE-9166-SS | 16 | 6 | 4.2 | M6 LHCS | 3.2x45° | Fine | |
| MHSE-9200-SS | 20 | 10 | 5.08 | M8 LHCS | 3.2x45° | Fine | |
| MHSE-9202-SS | 20 | 12 | 5.08 | M8 LHCS | 3.2x45° | Fine | |
| MHSE-9206-SS | 20 | 6 | 5.08 | M8 LHCS | 3.2x45° | Fine | |
| MHSE-9250-SS | 25 | 10 | 6.6 | M10 LHCS | 3.2x45° | Fine | |
| MHSE-9252-SS | 25 | 12 | 6.6 | M10 LHCS | 3.2x45° | Fine |
