Grippers - Edge Gripper - Tool Steel - Straight Serration - C'Bore - Inch (HSE-SS)

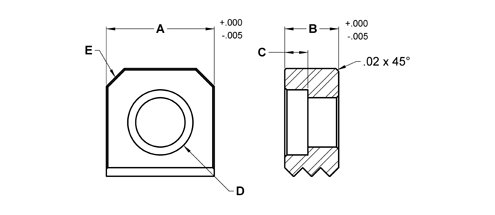

Drawing
Description
Media

Description

Made from M-2 high speed steel. Hardened to Rc 60/62 with black oxide finish. Square edge grippers have serrations on one side. Counter bored hole for front mounting with a socket head or low head cap screw.

Gripper Technical Information

HSE-902-SS

Tool Steel Gripper - Edge - 3/8 in X 1/4 in - Extra Fine Straight

Part Details
CAD

Part Number	Model Name	SKU	Description	Brand	Product ID	CAD Model Link	0	1	2	3	4	5
HSE-902-SS	HSE-902-SS	HSE-902-SS	Tool Steel Gripper - Edge - 3/8 in X 1/4 in - Extra Fine Straight	1	101319	CAD	3/8	1/4	.200	#6 SHCS	1/16x45°	EF
HSE-902-SS-SF	HSE-902-SS	HSE-902-SS-SF	Tool Steel Gripper - Edge - 3/8 in X 1/4 in - Super Fine Straight	1	101321	CAD	3/8	1/4	.200	#6 SHCS	1/16x45°	SF
HSE-903-SS	HSE-902-SS	HSE-903-SS	Tool Steel Gripper - Edge - 3/8 in X 3/8 in - Extra Fine Straight	1	101335	CAD	3/8	3/8	.200	#6 SHCS	1/16x45°	EF
HSE-903-SS-SF	HSE-902-SS	HSE-903-SS-SF	Tool Steel Gripper - Edge - 3/8 in X 3/8 in - Super Fine Straight	1	101346	CAD	3/8	3/8	.200	#6 SHCS	1/16x45°	SF
HSE-905-SS	HSE-902-SS	HSE-905-SS	Tool Steel Gripper - Edge - 3/8 in X 1/2 in - Extra Fine Straight	1	101371	CAD	3/8	1/2	.200	#6 SHCS	1/16x45°	EF
HSE-905-SS-SF	HSE-902-SS	HSE-905-SS-SF	Tool Steel Gripper - Edge - 3/8 in X 1/2 in - Super Fine Straight	1	101380	CAD	3/8	1/2	.200	#6 SHCS	1/16x45°	SF
HSE-952-SS	HSE-902-SS	HSE-952-SS	Tool Steel Gripper - Edge - 1/2 in X 1/4 in - Fine Straight	1	101413	CAD	1/2	1/4	.220	#8 SHCS	3/32x45°	Fine
HSE-952-SS-EF	HSE-902-SS	HSE-952-SS-EF	Tool Steel Gripper - Edge - 1/2 in X 1/4 in - Extra Fine Straight	1	101414	CAD	1/2	1/4	.220	#8 SHCS	3/32x45°	EF
HSE-952-SS-SF	HSE-902-SS	HSE-952-SS-SF	Tool Steel Gripper - Edge - 1/2 in X 1/4 in - Super Fine Straight	1	101425	CAD	1/2	1/4	.220	#8 SHCS	3/32x45°	SF
HSE-953-SS	HSE-902-SS	HSE-953-SS	Tool Steel Gripper - Edge - 1/2 in X 3/8 in - Fine Straight	1	101464	CAD	1/2	3/8	.220	#8 SHCS	3/32x45°	Fine
HSE-953-SS-EF	HSE-902-SS	HSE-953-SS-EF	Tool Steel Gripper - Edge - 1/2 in X 3/8 in - Extra Fine Straight	1	101474	CAD	1/2	3/8	.220	#8 SHCS	3/32x45°	EF
HSE-953-SS-SF	HSE-902-SS	HSE-953-SS-SF	Tool Steel Gripper - Edge - 1/2 in X 3/8 in - Super Fine Straight	1	101475	CAD	1/2	3/8	.220	#8 SHCS	3/32x45°	SF
HSE-955-SS	HSE-902-SS	HSE-955-SS	Tool Steel Gripper - Edge - 1/2 in X 1/2 in - Fine Straight	1	101518	CAD	1/2	1/2	.220	#8 SHCS	3/32x45°	Fine
HSE-955-SS-EF	HSE-902-SS	HSE-955-SS-EF	Tool Steel Gripper - Edge - 1/2 in X 1/2 in - Extra Fine Straight	1	101530	CAD	1/2	1/2	.220	#8 SHCS	3/32x45°	EF
HSE-955-SS-SF	HSE-902-SS	HSE-955-SS-SF	Tool Steel Gripper - Edge - 1/2 in X 1/2 in - Super Fine Straight	1	101536	CAD	1/2	1/2	.220	#8 SHCS	3/32x45°	SF
HSE-962-SS	HSE-902-SS	HSE-962-SS	Tool Steel Gripper - Edge - 5/8 in X 1/4 in - Fine Straight	1	101559	CAD	5/8	1/4	.130	1/4 LHCS	1/8x45°	Fine
HSE-962-SS-EF	HSE-902-SS	HSE-962-SS-EF	Tool Steel Gripper - Edge - 5/8 in X 1/4 in - Extra Fine Straight	1	101560	CAD	5/8	1/4	.130	1/4 LHCS	1/8x45°	EF
HSE-963-SS	HSE-902-SS	HSE-963-SS	Tool Steel Gripper - Edge - 5/8 in X 3/8 in - Fine Straight	1	101577	CAD	5/8	3/8	.130	1/4 LHCS	1/8x45°	Fine
HSE-963-SS-EF	HSE-902-SS	HSE-963-SS-EF	Tool Steel Gripper - Edge - 5/8 in X 3/8 in - Extra Fine Straight	1	101586	CAD	5/8	3/8	.130	1/4 LHCS	1/8x45°	EF
HSE-965-SS	HSE-902-SS	HSE-965-SS	Tool Steel Gripper - Edge - 5/8 in X 1/2 in - Fine Straight	1	101608	CAD	5/8	1/2	.130	1/4 LHCS	1/8x45°	Fine
HSE-965-SS-EF	HSE-902-SS	HSE-965-SS-EF	Tool Steel Gripper - Edge - 5/8 in X 1/2 in - Extra Fine Straight	1	101618	CAD	5/8	1/2	.130	1/4 LHCS	1/8x45°	EF
HSE-972-SS	HSE-902-SS	HSE-972-SS	Tool Steel Gripper - Edge - 3/4 in X 1/4 in - Fine Straight	1	101633	CAD	3/4	1/4	.161	5/16 LHCS	1/8x45°	Fine
HSE-972-SS-EF	HSE-902-SS	HSE-972-SS-EF	Tool Steel Gripper - Edge - 3/4 in X 1/4 in - Extra Fine Straight	1	101639	CAD	3/4	1/4	.161	5/16 LHCS	1/8x45°	EF
HSE-973-SS	HSE-902-SS	HSE-973-SS	Tool Steel Gripper - Edge - 3/4 in X 3/8 in - Fine Straight	1	101667	CAD	3/4	3/8	.161	5/16 LHCS	1/8x45°	Fine
HSE-973-SS-EF	HSE-902-SS	HSE-973-SS-EF	Tool Steel Gripper - Edge - 3/4 in X 3/8 in - Extra Fine Straight	1	101680	CAD	3/4	3/8	.161	5/16 LHCS	1/8x45°	EF
HSE-975-SS	HSE-902-SS	HSE-975-SS	Tool Steel Gripper - Edge - 3/4 in X 1/2 in - Fine Straight	1	101697	CAD	3/4	1/2	.161	5/16 LHCS	1/8x45°	Fine
HSE-975-SS-EF	HSE-902-SS	HSE-975-SS-EF	Tool Steel Gripper - Edge - 3/4 in X 1/2 in - Extra Fine Straight	1	101699	CAD	3/4	1/2	.161	5/16 LHCS	1/8x45°	EF
HSE-102-SS	HSE-902-SS	HSE-102-SS	Tool Steel Gripper - Edge - 1 in X 1/4 in - Fine Straight	1	101237	CAD	1	1/4	.194	3/8 LHCS	1/8x45°	Fine
HSE-102-SS-EF	HSE-902-SS	HSE-102-SS-EF	Tool Steel Gripper - Edge - 1 in X 1/4 in - Extra Fine Straight	1	101244	CAD	1	1/4	.194	3/8 LHCS	1/8x45°	EF
HSE-103-SS	HSE-902-SS	HSE-103-SS	Tool Steel Gripper - Edge - 1 in X 3/8 in - Fine Straight	1	101257	CAD	1	3/8	.194	3/8 LHCS	1/8x45°	Fine
HSE-103-SS-EF	HSE-902-SS	HSE-103-SS-EF	Tool Steel Gripper - Edge - 1 in X 3/8 in - Extra Fine Straight	1	101284	CAD	1	3/8	.194	3/8 LHCS	1/8x45°	EF
HSE-105-SS	HSE-902-SS	HSE-105-SS	Tool Steel Gripper - Edge - 1 in X 1/2 in - Fine Straight	1	101296	CAD	1	1/2	.194	3/8 LHCS	1/8x45°	Fine
HSE-105-SS-EF	HSE-902-SS	HSE-105-SS-EF	Tool Steel Gripper - Edge - 1 in X 1/2 in - Extra Fine Straight	1	101298	CAD	1	1/2	.194	3/8 LHCS	1/8x45°	EF
