Grippers - Edge Gripper - Tool Steel - Straight Serration - C'Bore - Inch (HSE-SS)
HSE-902-SS

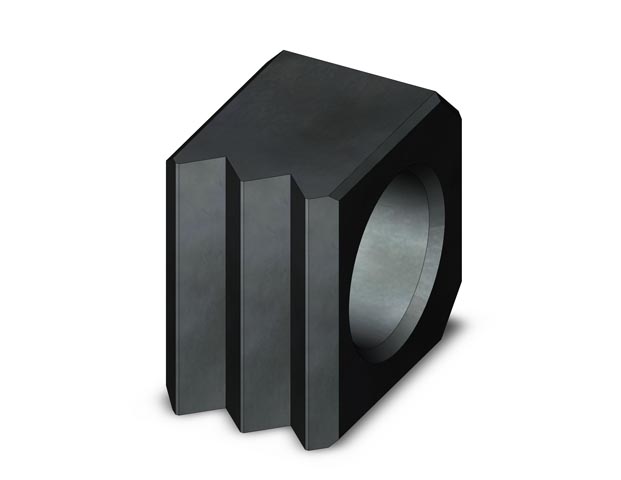

Tool Steel Gripper - Edge - 3/8 in X 1/4 in - Extra Fine Straight

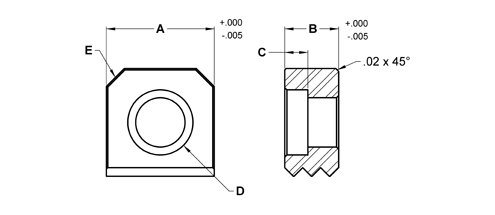

| Part # | A Width in | B Height in | C C'Bore in | D C'Bore For | E Chamfer in | Tooth Pattern |
|
|---|---|---|---|---|---|---|---|
| HSE-102-SS | 1 | 1/4 | .194 | 3/8 LHCS | 1/8x45° | Fine | |
| HSE-102-SS-EF | 1 | 1/4 | .194 | 3/8 LHCS | 1/8x45° | EF | |
| HSE-103-SS | 1 | 3/8 | .194 | 3/8 LHCS | 1/8x45° | Fine | |
| HSE-103-SS-EF | 1 | 3/8 | .194 | 3/8 LHCS | 1/8x45° | EF | |
| HSE-105-SS | 1 | 1/2 | .194 | 3/8 LHCS | 1/8x45° | Fine | |
| HSE-105-SS-EF | 1 | 1/2 | .194 | 3/8 LHCS | 1/8x45° | EF | |
| HSE-902-SS | 3/8 | 1/4 | .200 | #6 SHCS | 1/16x45° | EF | |
| HSE-902-SS-SF | 3/8 | 1/4 | .200 | #6 SHCS | 1/16x45° | SF | |
| HSE-903-SS | 3/8 | 3/8 | .200 | #6 SHCS | 1/16x45° | EF | |
| HSE-903-SS-SF | 3/8 | 3/8 | .200 | #6 SHCS | 1/16x45° | SF | |
| HSE-905-SS | 3/8 | 1/2 | .200 | #6 SHCS | 1/16x45° | EF | |
| HSE-905-SS-SF | 3/8 | 1/2 | .200 | #6 SHCS | 1/16x45° | SF | |
| HSE-952-SS | 1/2 | 1/4 | .220 | #8 SHCS | 3/32x45° | Fine | |
| HSE-952-SS-EF | 1/2 | 1/4 | .220 | #8 SHCS | 3/32x45° | EF | |
| HSE-952-SS-SF | 1/2 | 1/4 | .220 | #8 SHCS | 3/32x45° | SF | |
| HSE-953-SS | 1/2 | 3/8 | .220 | #8 SHCS | 3/32x45° | Fine | |
| HSE-953-SS-EF | 1/2 | 3/8 | .220 | #8 SHCS | 3/32x45° | EF | |
| HSE-953-SS-SF | 1/2 | 3/8 | .220 | #8 SHCS | 3/32x45° | SF | |
| HSE-955-SS | 1/2 | 1/2 | .220 | #8 SHCS | 3/32x45° | Fine | |
| HSE-955-SS-EF | 1/2 | 1/2 | .220 | #8 SHCS | 3/32x45° | EF | |
| HSE-955-SS-SF | 1/2 | 1/2 | .220 | #8 SHCS | 3/32x45° | SF | |
| HSE-962-SS | 5/8 | 1/4 | .130 | 1/4 LHCS | 1/8x45° | Fine | |
| HSE-962-SS-EF | 5/8 | 1/4 | .130 | 1/4 LHCS | 1/8x45° | EF | |
| HSE-963-SS | 5/8 | 3/8 | .130 | 1/4 LHCS | 1/8x45° | Fine | |
| HSE-963-SS-EF | 5/8 | 3/8 | .130 | 1/4 LHCS | 1/8x45° | EF | |
| HSE-965-SS | 5/8 | 1/2 | .130 | 1/4 LHCS | 1/8x45° | Fine | |
| HSE-965-SS-EF | 5/8 | 1/2 | .130 | 1/4 LHCS | 1/8x45° | EF | |
| HSE-972-SS | 3/4 | 1/4 | .161 | 5/16 LHCS | 1/8x45° | Fine | |
| HSE-972-SS-EF | 3/4 | 1/4 | .161 | 5/16 LHCS | 1/8x45° | EF | |
| HSE-973-SS | 3/4 | 3/8 | .161 | 5/16 LHCS | 1/8x45° | Fine | |
| HSE-973-SS-EF | 3/4 | 3/8 | .161 | 5/16 LHCS | 1/8x45° | EF | |
| HSE-975-SS | 3/4 | 1/2 | .161 | 5/16 LHCS | 1/8x45° | Fine | |
| HSE-975-SS-EF | 3/4 | 1/2 | .161 | 5/16 LHCS | 1/8x45° | EF |
