Grippers - Edge Gripper - Tool Steel - Diamond Serration - C'Bore - Metric (MHSE)

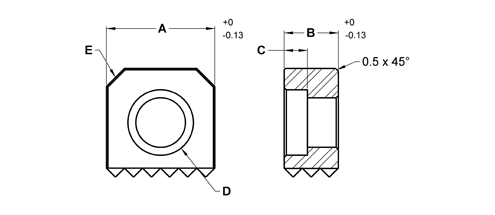

Drawing
Description
Media

Grippers - Edge Gripper - Tool Steel - Diamond Serration - C'Bore - Metric (MHSE)

Description

Made from M-2 high speed steel. Hardened to Rc 60/62 with black oxide finish. Square edge grippers have serrations on one side. Counter bored hole for front mounting with a socket head or low head cap screw.

Gripper Technical Information

MHSE-9106

Tool Steel Gripper - Edge - 10 mm X 6 mm - Extra Fine

Part Details
CAD

Show More...

Part Number	Model Name	SKU	Description	Brand	Product ID	CAD Model Link	Price Link	0	1	2	3	4	5
MHSE-9106	MHSE-9106	MHSE-9106	Tool Steel Gripper - Edge - 10 mm X 6 mm - Extra Fine	1	100208	CAD		10	6	3.75	M3 SHCS	1.6x45°	EF
MHSE-9100	MHSE-9106	MHSE-9100	Tool Steel Gripper - Edge - 10 mm X 10 mm - Extra Fine	1	101705	CAD		10	10	3.75	M3 SHCS	1.6x45°	EF
MHSE-9126	MHSE-9106	MHSE-9126	Tool Steel Gripper - Edge - 12 mm X 6 mm - Fine	1	100252	CAD		12	6	4.06	M4 SHCS	2.3x45°	Fine
MHSE-9120	MHSE-9106	MHSE-9120	Tool Steel Gripper - Edge - 12 mm X 10 mm - Fine	1	100237	CAD		12	10	4.06	M4 SHCS	2.3x45°	Fine
MHSE-9122	MHSE-9106	MHSE-9122	Tool Steel Gripper - Edge - 12 mm X 12 mm - Fine	1	100244	CAD		12	12	4.06	M4 SHCS	2.3x45°	Fine
MHSE-9166	MHSE-9106	MHSE-9166	Tool Steel Gripper - Edge - 16 mm X 6 mm - Fine	1	100326	CAD		16	6	4.2	M6 LHCS	3.2x45°	Fine
MHSE-9160	MHSE-9106	MHSE-9160	Tool Steel Gripper - Edge - 16 mm X 10 mm - Fine	1	100286	CAD		16	10	4.2	M6 LHCS	3.2x45°	Fine
MHSE-9162	MHSE-9106	MHSE-9162	Tool Steel Gripper - Edge - 16 mm X 12 mm - Fine	1	100307	CAD		16	12	4.2	M6 LHCS	3.2x45°	Fine
MHSE-9206	MHSE-9106	MHSE-9206	Tool Steel Gripper - Edge - 20 mm X 6 mm - Fine	1	100355	CAD		20	6	5.08	M8 LHCS	3.2x45°	Fine
MHSE-9200	MHSE-9106	MHSE-9200	Tool Steel Gripper - Edge - 20 mm X 10 mm - Fine	1	100334	CAD		20	10	5.08	M8 LHCS	3.2x45°	Fine
MHSE-9202	MHSE-9106	MHSE-9202	Tool Steel Gripper - Edge - 20 mm X 12 mm - Fine	1	100348	CAD		20	12	5.08	M8 LHCS	3.2x45°	Fine
MHSE-9250	MHSE-9106	MHSE-9250	Tool Steel Gripper - Edge - 25 mm X 10 mm - Fine	1	100362	CAD		25	10	6.6	M10 LHCS	3.2x45°	Fine
MHSE-9252	MHSE-9106	MHSE-9252	Tool Steel Gripper - Edge - 25 mm X 12 mm - Fine	1	100372	CAD		25	12	6.6	M10 LHCS	3.2x45°	Fine
