Grippers - Edge Gripper - Tool Steel - Diamond Serration - C'Bore - Metric (MHSE)
MHSE-9106

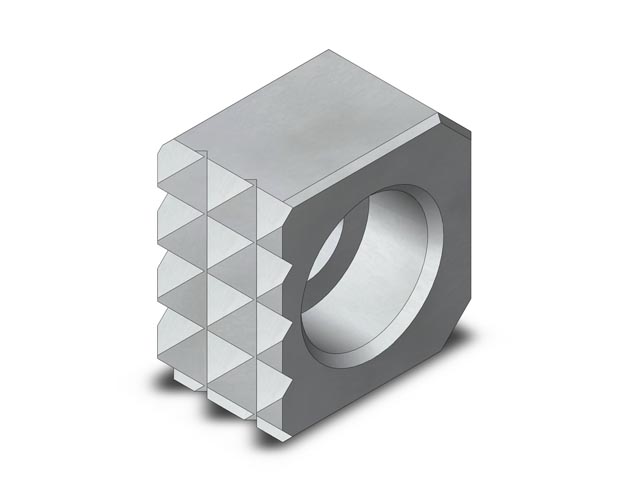

Tool Steel Gripper - Edge - 10 mm X 6 mm - Extra Fine

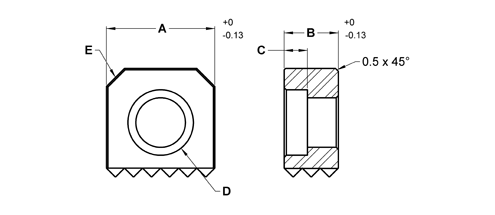

| Part # | A Width mm | B Height mm | C C'Bore mm | D C'Bore For mm | E Chamfer mm | Tooth Pattern |
|
|---|---|---|---|---|---|---|---|
| MHSE-9100 | 10 | 10 | 3.75 | M3 SHCS | 1.6x45° | EF | |
| MHSE-9106 | 10 | 6 | 3.75 | M3 SHCS | 1.6x45° | EF | |
| MHSE-9120 | 12 | 10 | 4.06 | M4 SHCS | 2.3x45° | Fine | |
| MHSE-9122 | 12 | 12 | 4.06 | M4 SHCS | 2.3x45° | Fine | |
| MHSE-9126 | 12 | 6 | 4.06 | M4 SHCS | 2.3x45° | Fine | |
| MHSE-9160 | 16 | 10 | 4.2 | M6 LHCS | 3.2x45° | Fine | |
| MHSE-9162 | 16 | 12 | 4.2 | M6 LHCS | 3.2x45° | Fine | |
| MHSE-9166 | 16 | 6 | 4.2 | M6 LHCS | 3.2x45° | Fine | |
| MHSE-9200 | 20 | 10 | 5.08 | M8 LHCS | 3.2x45° | Fine | |
| MHSE-9202 | 20 | 12 | 5.08 | M8 LHCS | 3.2x45° | Fine | |
| MHSE-9206 | 20 | 6 | 5.08 | M8 LHCS | 3.2x45° | Fine | |
| MHSE-9250 | 25 | 10 | 6.6 | M10 LHCS | 3.2x45° | Fine | |
| MHSE-9252 | 25 | 12 | 6.6 | M10 LHCS | 3.2x45° | Fine |
