MTBU-10025-FC-DS |
MTBU-10025-FC-DS |
MTBU-10025-FC-DS |

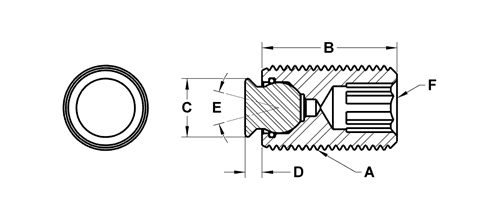

Threaded Design Swivot - M10 X 1.5 X 25 mm - Diamond Surface |
1 |
101910 |
CAD |
|
M10x1.5 | 25 | 6 | 1.5 | 28 | 5 | 5 | MBUB-050-FC-DS | — |
MTBU-10035-FC-DS |
MTBU-10025-FC-DS |
MTBU-10035-FC-DS |
Threaded Design Swivot - M10 X 1.5 X 35 Dur mm - Diamond Surface |
1 |
102002 |
CAD |
|
M10x1.5 | 35 | 6 | 1.5 | 28 | 5 | 5 | MBUB-050-FC-DS | — |
MTBU-10050-FC-DS |
MTBU-10025-FC-DS |
MTBU-10050-FC-DS |
Threaded Design Swivot - M10 X 1.5 X 50 mm - Diamond Surface |
1 |
102034 |
CAD |
|
M10x1.5 | 50 | 6 | 1.5 | 28 | 5 | 5 | MBUB-050-FC-DS | — |
MTBU-12025-FC-DS |
MTBU-10025-FC-DS |
MTBU-12025-FC-DS |
Threaded Design Swivot - M12 X 1.75 X 25 mm - Diamond Surface |
1 |
102135 |
CAD |
|
M12x1.75 | 25 | 8 | 2.0 | 28 | 6 | 7 | MBUB-070-FC-DS | 3,440 |
MTBU-12035-FC-DS |
MTBU-10025-FC-DS |
MTBU-12035-FC-DS |
Threaded Design Swivot - M12 X 1.75 X 35 Dur mm - Diamond Surface |
1 |
102203 |
CAD |
|
M12x1.75 | 35 | 8 | 2.0 | 28 | 6 | 7 | MBUB-070-FC-DS | 3,440 |
MTBU-12050-FC-DS |
MTBU-10025-FC-DS |
MTBU-12050-FC-DS |
Threaded Design Swivot - M12 X 1.75 X 50 mm - Diamond Surface |
1 |
102268 |
CAD |
|
M12x1.75 | 50 | 8 | 2.0 | 28 | 6 | 7 | MBUB-070-FC-DS | 3,440 |
MTBU-16025-FC-DS |
MTBU-10025-FC-DS |
MTBU-16025-FC-DS |
Threaded Design Swivot - M16 X 2.0 X 25 mm - Diamond Surface |
1 |
102380 |
CAD |
|
M16x2.0 | 25 | 11 | 3.0 | 28 | 8 | 10 | MBUB-100-FC-DS | 5,190 |
MTBU-16035-FC-DS |
MTBU-10025-FC-DS |
MTBU-16035-FC-DS |
Threaded Design Swivot - M16 X 2.0 X 35 Dur mm - Diamond Surface |
1 |
102481 |
CAD |
|
M16x2.0 | 35 | 11 | 3.0 | 28 | 8 | 10 | MBUB-100-FC-DS | 5,190 |
MTBU-16050-FC-DS |
MTBU-10025-FC-DS |
MTBU-16050-FC-DS |
Threaded Design Swivot - M16 X 2.0 X 50 mm - Diamond Surface |
1 |
102593 |
CAD |
|
M16x2.0 | 50 | 11 | 3.0 | 28 | 8 | 10 | MBUB-100-FC-DS | 5,190 |
MTBU-20030-FC-DS |
MTBU-10025-FC-DS |
MTBU-20030-FC-DS |
Threaded Design Swivot - M20 X 2.5 X 30 mm - Diamond Surface |
1 |
102659 |
CAD |
|
M20x2.5 | 30 | 14 | 3.0 | 28 | 10 | 13 | MBUB-130-FC-DS | 8,379 |
MTBU-20050-FC-DS |
MTBU-10025-FC-DS |
MTBU-20050-FC-DS |
Threaded Design Swivot - M20 X 2.5 X 50 mm - Diamond Surface |
1 |
102735 |
CAD |
|
M20x2.5 | 50 | 14 | 3.0 | 28 | 10 | 13 | MBUB-130-FC-DS | 8,379 |
MTBU-20070-FC-DS |
MTBU-10025-FC-DS |
MTBU-20070-FC-DS |
Threaded Design Swivot - M20 X 2.5 X 70 mm - Diamond Surface |
1 |
102862 |
CAD |
|
M20x2.5 | 70 | 14 | 3.0 | 28 | 10 | 13 | MBUB-130-FC-DS | 8,379 |
MTBU-24040-FC-DS |
MTBU-10025-FC-DS |
MTBU-24040-FC-DS |
Threaded Design Swivot - M24 X 3.0 X 40 mm - Diamond Surface |
1 |
103021 |
CAD |
|
M24x3.0 | 40 | 19 | 4.0 | 24 | 10 | 15 | MBUB-150-FC-DS | 12,233 |
MTBU-24080-FC-DS |
MTBU-10025-FC-DS |
MTBU-24080-FC-DS |
Threaded Design Swivot - M24 X 3.0 X 80 Dur mm - Diamond Surface |
1 |
103160 |
CAD |
|
M24x3.0 | 80 | 19 | 4.0 | 24 | 10 | 15 | MBUB-150-FC-DS | 12,233 |
