Full Threaded Swivots® Gripper Assembly - Diamond Surface Cone - Metric (MTBU-FC-DS)
MTBU-10025-FC-DS

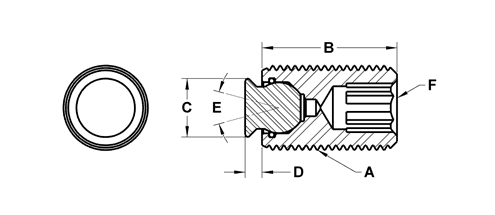

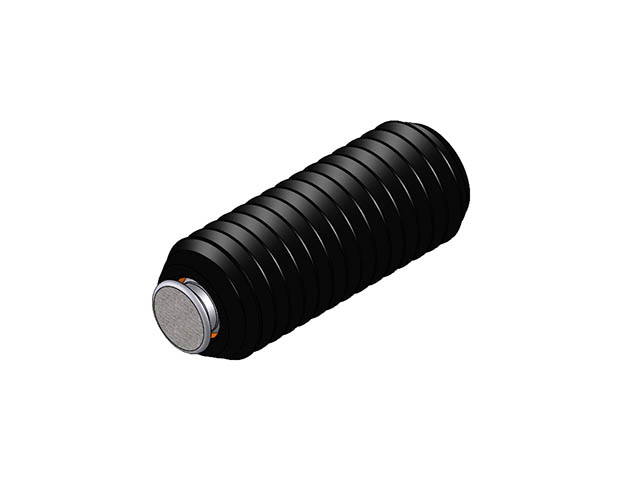

Threaded Design Swivot - M10 X 1.5 X 25 mm - Diamond Surface
| Part # | A Thread mm | B Thread Length mm | C Contact Dia mm | D Standoff mm | E Swivel Degrees | F Internal Hex mm | Ball Dia mm | Ball Only Part No. | Load Rating lbs |
|
|---|---|---|---|---|---|---|---|---|---|---|
| MTBU-10025-FC-DS | M10x1.5 | 25 | 6 | 1.5 | 28 | 5 | 5 | MBUB-050-FC-DS | — | |
| MTBU-10035-FC-DS | M10x1.5 | 35 | 6 | 1.5 | 28 | 5 | 5 | MBUB-050-FC-DS | — | |
| MTBU-10050-FC-DS | M10x1.5 | 50 | 6 | 1.5 | 28 | 5 | 5 | MBUB-050-FC-DS | — | |
| MTBU-12025-FC-DS | M12x1.75 | 25 | 8 | 2.0 | 28 | 6 | 7 | MBUB-070-FC-DS | 3,440 | |
| MTBU-12035-FC-DS | M12x1.75 | 35 | 8 | 2.0 | 28 | 6 | 7 | MBUB-070-FC-DS | 3,440 | |
| MTBU-12050-FC-DS | M12x1.75 | 50 | 8 | 2.0 | 28 | 6 | 7 | MBUB-070-FC-DS | 3,440 | |
| MTBU-16025-FC-DS | M16x2.0 | 25 | 11 | 3.0 | 28 | 8 | 10 | MBUB-100-FC-DS | 5,190 | |
| MTBU-16035-FC-DS | M16x2.0 | 35 | 11 | 3.0 | 28 | 8 | 10 | MBUB-100-FC-DS | 5,190 | |
| MTBU-16050-FC-DS | M16x2.0 | 50 | 11 | 3.0 | 28 | 8 | 10 | MBUB-100-FC-DS | 5,190 | |
| MTBU-20030-FC-DS | M20x2.5 | 30 | 14 | 3.0 | 28 | 10 | 13 | MBUB-130-FC-DS | 8,379 | |
| MTBU-20050-FC-DS | M20x2.5 | 50 | 14 | 3.0 | 28 | 10 | 13 | MBUB-130-FC-DS | 8,379 | |
| MTBU-20070-FC-DS | M20x2.5 | 70 | 14 | 3.0 | 28 | 10 | 13 | MBUB-130-FC-DS | 8,379 | |
| MTBU-24040-FC-DS | M24x3.0 | 40 | 19 | 4.0 | 24 | 10 | 15 | MBUB-150-FC-DS | 12,233 | |
| MTBU-24080-FC-DS | M24x3.0 | 80 | 19 | 4.0 | 24 | 10 | 15 | MBUB-150-FC-DS | 12,233 |
