Quick Release Ball Lock Pin - Ring Handle - 300 Series SS Shank - Aluminum Handle - Inch (RACS)

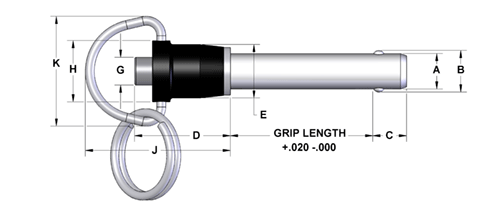

Drawing
Description
Media

Description

These positive locking quick release pins have a wide range of applications in fastening, locating, and alignment applications. The pins will not release until the button on the handle is depressed. Once the button is depressed, the balls retract into the shank allowing the pin to be inserted or removed into or out of a hole. The shanks are made from 300 series stainless steel. The 300 series stainless steel is not recommended in application where shear forces are a factor. The handles are made from 2024-T4 aluminum and anodized black. The pins are supplied with a stainless steel split ring for attaching a cable assembly. Pins in other grip lengths are available as special orders.

Pin Material Specifications

RACS-25-050

Ring Handle Pin - 300 Series SS Shank - 1/4 in X .50 in

Part Details
CAD

Part Number	Model Name	SKU	Description	Brand	Product ID	CAD Model Link	0	1	2	3	4	5	6	7	8	9	10	11
RACS-25-050	RACS-25-050	RACS-25-050	Ring Handle Pin - 300 Series SS Shank - 1/4 in X .50 in	1	121589	CAD	1/4	0.2485	0.247	0.5	0.289	0.29	0.92	0.47	0.23	0.59	1.45	1.16
RACS-25-075	RACS-25-050	RACS-25-075	Ring Handle Pin - 300 Series SS Shank - 1/4 in X .75 in	1	121591	CAD	1/4	0.2485	0.247	0.75	0.289	0.29	0.92	0.47	0.23	0.59	1.45	1.16
RACS-25-100	RACS-25-050	RACS-25-100	Ring Handle Pin - 300 Series SS Shank - 1/4 in X 1.00 in	1	121594	CAD	1/4	0.2485	0.247	1	0.289	0.29	0.92	0.47	0.23	0.59	1.45	1.16
RACS-25-125	RACS-25-050	RACS-25-125	Ring Handle Pin - 300 Series SS Shank - 1/4 in X 1.25 in	1	121596	CAD	1/4	0.2485	0.247	1.25	0.289	0.29	0.92	0.47	0.23	0.59	1.45	1.16
RACS-25-150	RACS-25-050	RACS-25-150	Ring Handle Pin - 300 Series SS Shank - 1/4 in X 1.50 in	1	121606	CAD	1/4	0.2485	0.247	1.5	0.289	0.29	0.92	0.47	0.23	0.59	1.45	1.16
RACS-25-175	RACS-25-050	RACS-25-175	Ring Handle Pin - 300 Series SS Shank - 1/4 in X 1.75 in	1	121613	CAD	1/4	0.2485	0.247	1.75	0.289	0.29	0.92	0.47	0.23	0.59	1.45	1.16
RACS-25-200	RACS-25-050	RACS-25-200	Ring Handle Pin - 300 Series SS Shank - 1/4 in X 2.00 in	1	121617	CAD	1/4	0.2485	0.247	2	0.289	0.29	0.92	0.47	0.23	0.59	1.45	1.16
RACS-25-250	RACS-25-050	RACS-25-250	Ring Handle Pin - 300 Series SS Shank - 1/4 in X 2.50 in	1	121621	CAD	1/4	0.2485	0.247	2.5	0.289	0.29	0.92	0.47	0.23	0.59	1.45	1.16
RACS-25-300	RACS-25-050	RACS-25-300	Ring Handle Pin - 300 Series SS Shank - 1/4 in X 3.00 in	1	121623	CAD	1/4	0.2485	0.247	3	0.289	0.29	0.92	0.47	0.23	0.59	1.45	1.16
RACS-25-350	RACS-25-050	RACS-25-350	Ring Handle Pin - 300 Series SS Shank - 1/4 in X 3.50 in	1	121645	CAD	1/4	0.2485	0.247	3.5	0.289	0.29	0.92	0.47	0.23	0.59	1.45	1.16
RACS-25-400	RACS-25-050	RACS-25-400	Ring Handle Pin - 300 Series SS Shank - 1/4 in X 4.00 in	1	121648	CAD	1/4	0.2485	0.247	4	0.289	0.29	0.92	0.47	0.23	0.59	1.45	1.16
RACS-31-050	RACS-31-050	RACS-31-050	Ring Handle Pin - 300 Series SS Shank - 5/16 in X .50 in	1	121651	CAD	5/16	0.311	0.3095	0.5	0.375	0.33	0.92	0.47	0.23	0.59	1.45	1.16
RACS-31-075	RACS-31-050	RACS-31-075	Ring Handle Pin - 300 Series SS Shank - 5/16 in X .75 in	1	121655	CAD	5/16	0.311	0.3095	0.75	0.375	0.33	0.92	0.47	0.23	0.59	1.45	1.16
RACS-31-100	RACS-31-050	RACS-31-100	Ring Handle Pin - 300 Series SS Shank - 5/16 in X 1.00 in	1	121668	CAD	5/16	0.311	0.3095	1	0.375	0.33	0.92	0.47	0.23	0.59	1.45	1.16
RACS-31-125	RACS-31-050	RACS-31-125	Ring Handle Pin - 300 Series SS Shank - 5/16 in X 1.25 in	1	121671	CAD	5/16	0.311	0.3095	1.25	0.375	0.33	0.92	0.47	0.23	0.59	1.45	1.16
RACS-31-150	RACS-31-050	RACS-31-150	Ring Handle Pin - 300 Series SS Shank - 5/16 in X 1.50 in	1	121675	CAD	5/16	0.311	0.3095	1.5	0.375	0.33	0.92	0.47	0.23	0.59	1.45	1.16
RACS-31-175	RACS-31-050	RACS-31-175	Ring Handle Pin - 300 Series SS Shank - 5/16 in X 1.75 in	1	121679	CAD	5/16	0.311	0.3095	1.75	0.375	0.33	0.92	0.47	0.23	0.59	1.45	1.16
RACS-31-200	RACS-31-050	RACS-31-200	Ring Handle Pin - 300 Series SS Shank - 5/16 in X 2.00 in	1	121684	CAD	5/16	0.311	0.3095	2	0.375	0.33	0.92	0.47	0.23	0.59	1.45	1.16
RACS-31-250	RACS-31-050	RACS-31-250	Ring Handle Pin - 300 Series SS Shank - 5/16 in X 2.50 in	1	121687	CAD	5/16	0.311	0.3095	2.5	0.375	0.33	0.92	0.47	0.23	0.59	1.45	1.16
RACS-31-300	RACS-31-050	RACS-31-300	Ring Handle Pin - 300 Series SS Shank - 5/16 in X 3.00 in	1	121692	CAD	5/16	0.311	0.3095	3	0.375	0.33	0.92	0.47	0.23	0.59	1.45	1.16
RACS-31-350	RACS-31-050	RACS-31-350	Ring Handle Pin - 300 Series SS Shank - 5/16 in X 3.50 in	1	121708	CAD	5/16	0.311	0.3095	3.5	0.375	0.33	0.92	0.47	0.23	0.59	1.45	1.16
RACS-31-400	RACS-31-050	RACS-31-400	Ring Handle Pin - 300 Series SS Shank - 5/16 in X 4.00 in	1	121710	CAD	5/16	0.311	0.3095	4	0.375	0.33	0.92	0.47	0.23	0.59	1.45	1.16
RACS-37-050	RACS-37-050	RACS-37-050	Ring Handle Pin - 300 Series SS Shank - 3/8 in X .50 in	1	121714	CAD	3/8	0.3735	0.372	0.5	0.44	0.365	1.01	0.56	0.29	0.65	1.52	1.16
RACS-37-075	RACS-37-050	RACS-37-075	Ring Handle Pin - 300 Series SS Shank - 3/8 in X .75 in	1	121717	CAD	3/8	0.3735	0.372	0.75	0.44	0.365	1.01	0.56	0.29	0.65	1.52	1.16
RACS-37-100	RACS-37-050	RACS-37-100	Ring Handle Pin - 300 Series SS Shank - 3/8 in X 1.00 in	1	121726	CAD	3/8	0.3735	0.372	1	0.44	0.365	1.01	0.56	0.29	0.65	1.52	1.16
RACS-37-125	RACS-37-050	RACS-37-125	Ring Handle Pin - 300 Series SS Shank - 3/8 in X 1.25 in	1	121733	CAD	3/8	0.3735	0.372	1.25	0.44	0.365	1.01	0.56	0.29	0.65	1.52	1.16
RACS-37-150	RACS-37-050	RACS-37-150	Ring Handle Pin - 300 Series SS Shank - 3/8 in X 1.50 in	1	121740	CAD	3/8	0.3735	0.372	1.5	0.44	0.365	1.01	0.56	0.29	0.65	1.52	1.16
RACS-37-175	RACS-37-050	RACS-37-175	Ring Handle Pin - 300 Series SS Shank - 3/8 in X 1.75 in	1	121754	CAD	3/8	0.3735	0.372	1.75	0.44	0.365	1.01	0.56	0.29	0.65	1.52	1.16
RACS-37-200	RACS-37-050	RACS-37-200	Ring Handle Pin - 300 Series SS Shank - 3/8 in X 2.00 in	1	121757	CAD	3/8	0.3735	0.372	2	0.44	0.365	1.01	0.56	0.29	0.65	1.52	1.16
RACS-37-250	RACS-37-050	RACS-37-250	Ring Handle Pin - 300 Series SS Shank - 3/8 in X 2.50 in	1	121761	CAD	3/8	0.3735	0.372	2.5	0.44	0.365	1.01	0.56	0.29	0.65	1.52	1.16
RACS-37-300	RACS-37-050	RACS-37-300	Ring Handle Pin - 300 Series SS Shank - 3/8 in X 3.00 in	1	121779	CAD	3/8	0.3735	0.372	3	0.44	0.365	1.01	0.56	0.29	0.65	1.52	1.16
RACS-37-350	RACS-37-050	RACS-37-350	Ring Handle Pin - 300 Series SS Shank - 3/8 in X 3.50 in	1	106610	CAD	3/8	0.3735	0.372	3.5	0.44	0.365	1.01	0.56	0.29	0.65	1.52	1.16
RACS-37-400	RACS-37-050	RACS-37-400	Ring Handle Pin - 300 Series SS Shank - 3/8 in X 4.00 in	1	106656	CAD	3/8	0.3735	0.372	4	0.44	0.365	1.01	0.56	0.29	0.65	1.52	1.16
RACS-50-100	RACS-50-100	RACS-50-100	Ring Handle Pin - 300 Series SS Shank - 1/2 in X 1.00 in	1	106662	CAD	1/2	0.4985	0.497	1	0.594	0.46	1.27	0.72	0.42	0.81	1.88	1.43
RACS-50-125	RACS-50-100	RACS-50-125	Ring Handle Pin - 300 Series SS Shank - 1/2 in X 1.25 in	1	106666	CAD	1/2	0.4985	0.497	1.25	0.594	0.46	1.27	0.72	0.42	0.81	1.88	1.43
RACS-50-150	RACS-50-100	RACS-50-150	Ring Handle Pin - 300 Series SS Shank - 1/2 in X 1.50 in	1	106690	CAD	1/2	0.4985	0.497	1.5	0.594	0.46	1.27	0.72	0.42	0.81	1.88	1.43
RACS-50-175	RACS-50-100	RACS-50-175	Ring Handle Pin - 300 Series SS Shank - 1/2 in X 1.75 in	1	106696	CAD	1/2	0.4985	0.497	1.75	0.594	0.46	1.27	0.72	0.42	0.81	1.88	1.43
RACS-50-200	RACS-50-100	RACS-50-200	Ring Handle Pin - 300 Series SS Shank - 1/2 in X 2.00 in	1	106697	CAD	1/2	0.4985	0.497	2	0.594	0.46	1.27	0.72	0.42	0.81	1.88	1.43
RACS-50-250	RACS-50-100	RACS-50-250	Ring Handle Pin - 300 Series SS Shank - 1/2 in X 2.50 in	1	106700	CAD	1/2	0.4985	0.497	2.5	0.594	0.46	1.27	0.72	0.42	0.81	1.88	1.43
RACS-50-300	RACS-50-100	RACS-50-300	Ring Handle Pin - 300 Series SS Shank - 1/2 in X 3.00 in	1	106709	CAD	1/2	0.4985	0.497	3	0.594	0.46	1.27	0.72	0.42	0.81	1.88	1.43
RACS-50-350	RACS-50-100	RACS-50-350	Ring Handle Pin - 300 Series SS Shank - 1/2 in X 3.50 in	1	106711	CAD	1/2	0.4985	0.497	3.5	0.594	0.46	1.27	0.72	0.42	0.81	1.88	1.43
RACS-50-400	RACS-50-100	RACS-50-400	Ring Handle Pin - 300 Series SS Shank - 1/2 in X 4.00 in	1	106713	CAD	1/2	0.4985	0.497	4	0.594	0.46	1.27	0.72	0.42	0.81	1.88	1.43
RACS-50-450	RACS-50-100	RACS-50-450	Ring Handle Pin - 300 Series SS Shank - 1/2 in X 4.50 in	1	106727	CAD	1/2	0.4985	0.497	4.5	0.594	0.46	1.27	0.72	0.42	0.81	1.88	1.43
RACS-50-500	RACS-50-100	RACS-50-500	Ring Handle Pin - 300 Series SS Shank - 1/2 in X 5.00 in	1	106731	CAD	1/2	0.4985	0.497	5	0.594	0.46	1.27	0.72	0.42	0.81	1.88	1.43
RACS-50-550	RACS-50-100	RACS-50-550	Ring Handle Pin - 300 Series SS Shank - 1/2 in X 5.50 in	1	106742	CAD	1/2	0.4985	0.497	5.5	0.594	0.46	1.27	0.72	0.42	0.81	1.88	1.43
RACS-50-600	RACS-50-100	RACS-50-600	Ring Handle Pin - 300 Series SS Shank - 1/2 in X 6.00 in	1	106748	CAD	1/2	0.4985	0.497	6	0.594	0.46	1.27	0.72	0.42	0.81	1.88	1.43
