300 Stainless Shank - Aluminum Handle (Inch)

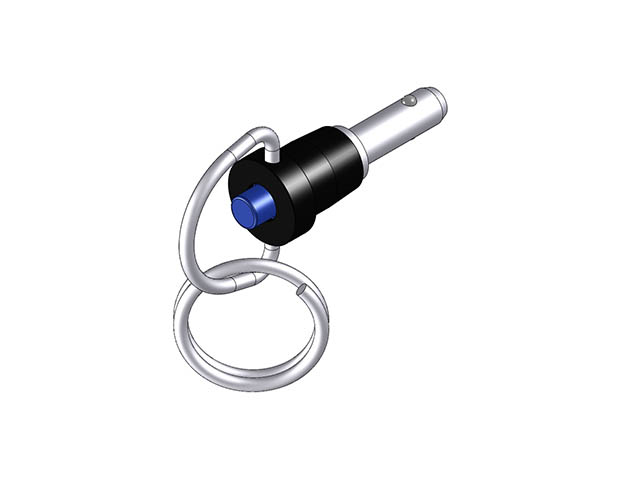

Quick Release Ball Lock Pin - Ring Handle - 300 Series SS Shank - Aluminum Handle - Inch (RACS)

RACS-25-050
Ring Handle Pin - 300 Series SS Shank - 1/4 in X .50 in

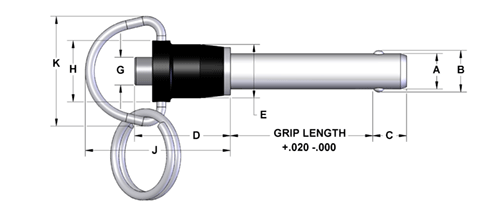

Part #	Nominal Diameter in	A Max in	A Min in	Grip Length in	B in	C in	D in	E in	G in	H in	J in	K in
▶ RACS-25-050	1/4	0.2485	0.247	0.5	0.289	0.29	0.92	0.47	0.23	0.59	1.45	1.16
▶ RACS-25-075	1/4	0.2485	0.247	0.75	0.289	0.29	0.92	0.47	0.23	0.59	1.45	1.16
▶ RACS-25-100	1/4	0.2485	0.247	1	0.289	0.29	0.92	0.47	0.23	0.59	1.45	1.16
▶ RACS-25-125	1/4	0.2485	0.247	1.25	0.289	0.29	0.92	0.47	0.23	0.59	1.45	1.16
▶ RACS-25-150	1/4	0.2485	0.247	1.5	0.289	0.29	0.92	0.47	0.23	0.59	1.45	1.16
▶ RACS-25-175	1/4	0.2485	0.247	1.75	0.289	0.29	0.92	0.47	0.23	0.59	1.45	1.16
▶ RACS-25-200	1/4	0.2485	0.247	2	0.289	0.29	0.92	0.47	0.23	0.59	1.45	1.16
▶ RACS-25-250	1/4	0.2485	0.247	2.5	0.289	0.29	0.92	0.47	0.23	0.59	1.45	1.16
▶ RACS-25-300	1/4	0.2485	0.247	3	0.289	0.29	0.92	0.47	0.23	0.59	1.45	1.16
▶ RACS-25-350	1/4	0.2485	0.247	3.5	0.289	0.29	0.92	0.47	0.23	0.59	1.45	1.16
▶ RACS-25-400	1/4	0.2485	0.247	4	0.289	0.29	0.92	0.47	0.23	0.59	1.45	1.16
▶ RACS-31-050	5/16	0.311	0.3095	0.5	0.375	0.33	0.92	0.47	0.23	0.59	1.45	1.16
▶ RACS-31-075	5/16	0.311	0.3095	0.75	0.375	0.33	0.92	0.47	0.23	0.59	1.45	1.16
▶ RACS-31-100	5/16	0.311	0.3095	1	0.375	0.33	0.92	0.47	0.23	0.59	1.45	1.16
▶ RACS-31-125	5/16	0.311	0.3095	1.25	0.375	0.33	0.92	0.47	0.23	0.59	1.45	1.16
▶ RACS-31-150	5/16	0.311	0.3095	1.5	0.375	0.33	0.92	0.47	0.23	0.59	1.45	1.16
▶ RACS-31-175	5/16	0.311	0.3095	1.75	0.375	0.33	0.92	0.47	0.23	0.59	1.45	1.16
▶ RACS-31-200	5/16	0.311	0.3095	2	0.375	0.33	0.92	0.47	0.23	0.59	1.45	1.16
▶ RACS-31-250	5/16	0.311	0.3095	2.5	0.375	0.33	0.92	0.47	0.23	0.59	1.45	1.16
▶ RACS-31-300	5/16	0.311	0.3095	3	0.375	0.33	0.92	0.47	0.23	0.59	1.45	1.16
▶ RACS-31-350	5/16	0.311	0.3095	3.5	0.375	0.33	0.92	0.47	0.23	0.59	1.45	1.16
▶ RACS-31-400	5/16	0.311	0.3095	4	0.375	0.33	0.92	0.47	0.23	0.59	1.45	1.16
▶ RACS-37-050	3/8	0.3735	0.372	0.5	0.44	0.365	1.01	0.56	0.29	0.65	1.52	1.16
▶ RACS-37-075	3/8	0.3735	0.372	0.75	0.44	0.365	1.01	0.56	0.29	0.65	1.52	1.16
▶ RACS-37-100	3/8	0.3735	0.372	1	0.44	0.365	1.01	0.56	0.29	0.65	1.52	1.16
▶ RACS-37-125	3/8	0.3735	0.372	1.25	0.44	0.365	1.01	0.56	0.29	0.65	1.52	1.16
▶ RACS-37-150	3/8	0.3735	0.372	1.5	0.44	0.365	1.01	0.56	0.29	0.65	1.52	1.16
▶ RACS-37-175	3/8	0.3735	0.372	1.75	0.44	0.365	1.01	0.56	0.29	0.65	1.52	1.16
▶ RACS-37-200	3/8	0.3735	0.372	2	0.44	0.365	1.01	0.56	0.29	0.65	1.52	1.16
▶ RACS-37-250	3/8	0.3735	0.372	2.5	0.44	0.365	1.01	0.56	0.29	0.65	1.52	1.16
▶ RACS-37-300	3/8	0.3735	0.372	3	0.44	0.365	1.01	0.56	0.29	0.65	1.52	1.16
▶ RACS-37-350	3/8	0.3735	0.372	3.5	0.44	0.365	1.01	0.56	0.29	0.65	1.52	1.16
▶ RACS-37-400	3/8	0.3735	0.372	4	0.44	0.365	1.01	0.56	0.29	0.65	1.52	1.16
▶ RACS-50-100	1/2	0.4985	0.497	1	0.594	0.46	1.27	0.72	0.42	0.81	1.88	1.43
▶ RACS-50-125	1/2	0.4985	0.497	1.25	0.594	0.46	1.27	0.72	0.42	0.81	1.88	1.43
▶ RACS-50-150	1/2	0.4985	0.497	1.5	0.594	0.46	1.27	0.72	0.42	0.81	1.88	1.43
▶ RACS-50-175	1/2	0.4985	0.497	1.75	0.594	0.46	1.27	0.72	0.42	0.81	1.88	1.43
▶ RACS-50-200	1/2	0.4985	0.497	2	0.594	0.46	1.27	0.72	0.42	0.81	1.88	1.43
▶ RACS-50-250	1/2	0.4985	0.497	2.5	0.594	0.46	1.27	0.72	0.42	0.81	1.88	1.43
▶ RACS-50-300	1/2	0.4985	0.497	3	0.594	0.46	1.27	0.72	0.42	0.81	1.88	1.43
▶ RACS-50-350	1/2	0.4985	0.497	3.5	0.594	0.46	1.27	0.72	0.42	0.81	1.88	1.43
▶ RACS-50-400	1/2	0.4985	0.497	4	0.594	0.46	1.27	0.72	0.42	0.81	1.88	1.43
▶ RACS-50-450	1/2	0.4985	0.497	4.5	0.594	0.46	1.27	0.72	0.42	0.81	1.88	1.43
▶ RACS-50-500	1/2	0.4985	0.497	5	0.594	0.46	1.27	0.72	0.42	0.81	1.88	1.43
▶ RACS-50-550	1/2	0.4985	0.497	5.5	0.594	0.46	1.27	0.72	0.42	0.81	1.88	1.43
▶ RACS-50-600	1/2	0.4985	0.497	6	0.594	0.46	1.27	0.72	0.42	0.81	1.88	1.43
