DuraSoft® Shaft Drive Rollers - Steel Insert - 1 in I.D. - Inch

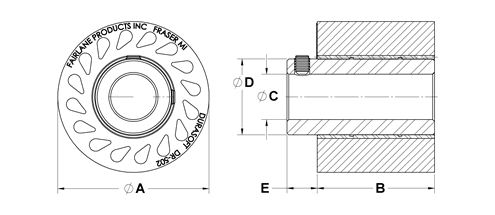

Drawing
Description
Media

Description

DuraSoft rollers have a smooth surface and are permanently bonded to a steel insert. Designed to be mounted on a shaft. A hub extends past the roller and is supplied with two set screws (90 degrees apart) to fasten onto the shaft. The "teardrop" holes allow the roller to flex for firm yet non-damaging contact. Rollers are available in urethane material with hardness ranging from 35 to 95 durometer.

Roller Material Information

DR-9502-35UR-EX10

DuraSoft® Roller - 1 in Shaft Drive - 35 Dur Urethane - 2.50 in Dia X 0.92 in Wide

Part Details
CAD

Part Number	Model Name	SKU	Description	Brand	Product ID	CAD Model Link	0	1	2	3	4	5	6
DR-9502-35UR-EX10	DR-9502-35UR-EX10	DR-9502-35UR-EX10	DuraSoft® Roller - 1 in Shaft Drive - 35 Dur Urethane - 2.50 in Dia X 0.92 in Wide	1	113225	CAD	2.50	.92	1.001/1.006	1.37	.50	Urethane	35
DR-9502-60UR-EX10	DR-9502-35UR-EX10	DR-9502-60UR-EX10	DuraSoft® Roller - 1 in Shaft Drive - 60 Dur Urethane - 2.50 in Dia X 0.92 in Wide	1	112863	CAD	2.50	.92	1.001/1.006	1.37	.50	Urethane	60
DR-9502-80UR-EX10	DR-9502-35UR-EX10	DR-9502-80UR-EX10	DuraSoft® Roller - 1 in Shaft Drive - 80 Dur Urethane - 2.50 in Dia X 0.92 in Wide	1	113227	CAD	2.50	.92	1.001/1.006	1.37	.50	Urethane	80
DR-9502-95UR-EX10	DR-9502-35UR-EX10	DR-9502-95UR-EX10	DuraSoft® Roller - 1 in Shaft Drive - 95 Dur Urethane - 2.50 in Dia X 0.92 in Wide	1	113233	CAD	2.50	.92	1.001/1.006	1.37	.50	Urethane	95
DR-502-35UR-EX10	DR-9502-35UR-EX10	DR-502-35UR-EX10	DuraSoft® Roller - 1 in Shaft Drive - 35 Dur Urethane - 2.50 in Dia X 1.94 in Wide	1	113166	CAD	2.50	1.94	1.001/1.006	1.37	.50	Urethane	35
DR-502-60UR-EX10	DR-9502-35UR-EX10	DR-502-60UR-EX10	DuraSoft® Roller - 1 in Shaft Drive - 60 Dur Urethane - 2.50 in Dia X 1.94 in Wide	1	113191	CAD	2.50	1.94	1.001/1.006	1.37	.50	Urethane	60
DR-502-80UR-EX10	DR-9502-35UR-EX10	DR-502-80UR-EX10	DuraSoft® Roller - 1 in Shaft Drive - 80 Dur Urethane - 2.50 in Dia X 1.94 in Wide	1	113194	CAD	2.50	1.94	1.001/1.006	1.37	.50	Urethane	80
DR-502-95UR-EX10	DR-9502-35UR-EX10	DR-502-95UR-EX10	DuraSoft® Roller - 1 in Shaft Drive - 95 Dur Urethane - 2.50 in Dia X 1.94 in Wide	1	113196	CAD	2.50	1.94	1.001/1.006	1.37	.50	Urethane	95
DR-9754-20-EX10	DR-9754-20-EX10	DR-9754-20-EX10	DuraSoft® Roller - 1 in Shaft Drive - 20 Dur Neoprene - 4.00 in Dia X 0.92 in Wide	1	112955	CAD	4.00	.92	1.001/1.006	1.37	.50	Neoprene	20
DR-9754-35-EX10	DR-9754-20-EX10	DR-9754-35-EX10	DuraSoft® Roller - 1 in Shaft Drive - 35 Dur Neoprene - 4.00 in Dia X 0.92 in Wide	1	113020	CAD	4.00	.92	1.001/1.006	1.37	.50	Neoprene	35
DR-9754-20W-EX10	DR-9754-20-EX10	DR-9754-20W-EX10	DuraSoft® Roller - 1 in Shaft Drive - 20 Dur Nitrile - 4.00 in Dia X 0.92 in Wide	1	112967	CAD	4.00	.92	1.001/1.006	1.37	.50	Nitrile	20
DR-9754-35W-EX10	DR-9754-20-EX10	DR-9754-35W-EX10	DuraSoft® Roller - 1 in Shaft Drive - 35 Dur Nitrile - 4.00 in Dia X 0.92 in Wide	1	113050	CAD	4.00	.92	1.001/1.006	1.37	.50	Nitrile	35
DR-9754-35UR-EX10	DR-9754-20-EX10	DR-9754-35UR-EX10	DuraSoft® Roller - 1 in Shaft Drive - 35 Dur Urethane - 4.00 in Dia X 0.92 in Wide	1	113239	CAD	4.00	.92	1.001/1.006	1.37	.50	Urethane	35
DR-9754-60UR-EX10	DR-9754-20-EX10	DR-9754-60UR-EX10	DuraSoft® Roller - 1 in Shaft Drive - 60 Dur Urethane - 4.00 in Dia X 0.92 in Wide	1	113078	CAD	4.00	.92	1.001/1.006	1.37	.50	Urethane	60
DR-9754-80UR-EX10	DR-9754-20-EX10	DR-9754-80UR-EX10	DuraSoft® Roller - 1 in Shaft Drive - 80 Dur Urethane - 4.00 in Dia X 0.92 in Wide	1	113245	CAD	4.00	.92	1.001/1.006	1.37	.50	Urethane	80
DR-9754-95UR-EX10	DR-9754-20-EX10	DR-9754-95UR-EX10	DuraSoft® Roller - 1 in Shaft Drive - 95 Dur Urethane - 4.00 in Dia X 0.92 in Wide	1	113250	CAD	4.00	.92	1.001/1.006	1.37	.50	Urethane	95
DR-754-20-EX10	DR-9754-20-EX10	DR-754-20-EX10	DuraSoft® Roller - 1 in Shaft Drive - 20 Dur Neoprene - 4.00 in Dia X 1.94 in Wide	1	112634	CAD	4.00	1.94	1.001/1.006	1.37	.50	Neoprene	20
DR-754-35-EX10	DR-9754-20-EX10	DR-754-35-EX10	DuraSoft® Roller - 1 in Shaft Drive - 35 Dur Neoprene - 4.00 in Dia X 1.94 in Wide	1	112696	CAD	4.00	1.94	1.001/1.006	1.37	.50	Neoprene	35
DR-754-20W-EX10	DR-9754-20-EX10	DR-754-20W-EX10	DuraSoft® Roller - 1 in Shaft Drive - 20 Dur Nitrile - 4.00 in Dia X 1.94 in Wide	1	112665	CAD	4.00	1.94	1.001/1.006	1.37	.50	Nitrile	20
DR-754-35W-EX10	DR-9754-20-EX10	DR-754-35W-EX10	DuraSoft® Roller - 1 in Shaft Drive - 35 Dur Nitrile - 4.00 in Dia X 1.94 in Wide	1	112777	CAD	4.00	1.94	1.001/1.006	1.37	.50	Nitrile	35
DR-754-35UR-EX10	DR-9754-20-EX10	DR-754-35UR-EX10	DuraSoft® Roller - 1 in Shaft Drive - 35 Dur Urethane - 4.00 in Dia X 1.94 in Wide	1	113199	CAD	4.00	1.94	1.001/1.006	1.37	.50	Urethane	35
DR-754-60UR-EX10	DR-9754-20-EX10	DR-754-60UR-EX10	DuraSoft® Roller - 1 in Shaft Drive - 60 Dur Urethane - 4.00 in Dia X 1.94 in Wide	1	113206	CAD	4.00	1.94	1.001/1.006	1.37	.50	Urethane	60
DR-754-80UR-EX10	DR-9754-20-EX10	DR-754-80UR-EX10	DuraSoft® Roller - 1 in Shaft Drive - 80 Dur Urethane - 4.00 in Dia X 1.94 in Wide	1	113215	CAD	4.00	1.94	1.001/1.006	1.37	.50	Urethane	80
DR-754-95UR-EX10	DR-9754-20-EX10	DR-754-95UR-EX10	DuraSoft® Roller - 1 in Shaft Drive - 95 Dur Urethane - 4.00 in Dia X 1.94 in Wide	1	113217	CAD	4.00	1.94	1.001/1.006	1.37	.50	Urethane	95
