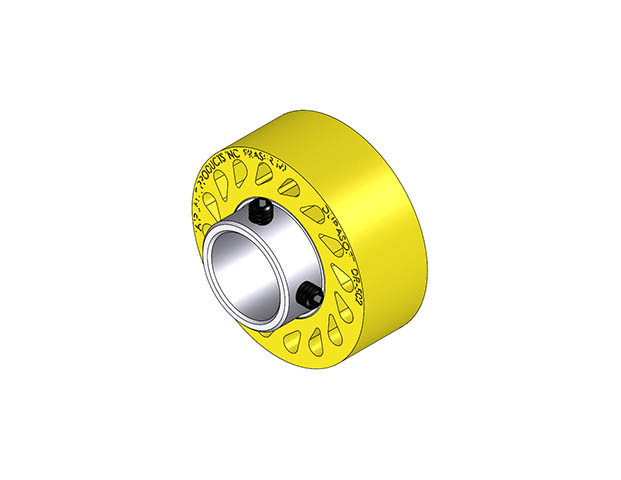

DuraSoft® Shaft Drive Rollers - Steel Insert - 1 in I.D. - Inch
DR-9502-35UR-EX10
DuraSoft® Roller - 1 in Shaft Drive - 35 Dur Urethane - 2.50 in Dia X 0.92 in Wide

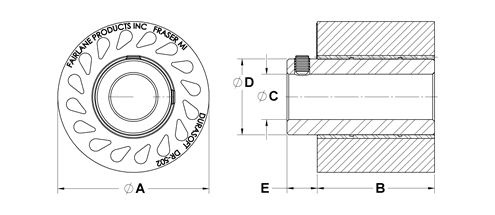

| Part # | A in | B in | C in | D in | E in | Material | Durometer Shore A |
|
|---|---|---|---|---|---|---|---|---|
| DR-502-35UR-EX10 | 2.50 | 1.94 | 1.001/1.006 | 1.37 | .50 | Urethane | 35 | |
| DR-502-60UR-EX10 | 2.50 | 1.94 | 1.001/1.006 | 1.37 | .50 | Urethane | 60 | |
| DR-502-80UR-EX10 | 2.50 | 1.94 | 1.001/1.006 | 1.37 | .50 | Urethane | 80 | |
| DR-502-95UR-EX10 | 2.50 | 1.94 | 1.001/1.006 | 1.37 | .50 | Urethane | 95 | |
| DR-754-20-EX10 | 4.00 | 1.94 | 1.001/1.006 | 1.37 | .50 | Neoprene | 20 | |
| DR-754-20W-EX10 | 4.00 | 1.94 | 1.001/1.006 | 1.37 | .50 | Nitrile | 20 | |
| DR-754-35-EX10 | 4.00 | 1.94 | 1.001/1.006 | 1.37 | .50 | Neoprene | 35 | |
| DR-754-35UR-EX10 | 4.00 | 1.94 | 1.001/1.006 | 1.37 | .50 | Urethane | 35 | |
| DR-754-35W-EX10 | 4.00 | 1.94 | 1.001/1.006 | 1.37 | .50 | Nitrile | 35 | |
| DR-754-60UR-EX10 | 4.00 | 1.94 | 1.001/1.006 | 1.37 | .50 | Urethane | 60 | |
| DR-754-80UR-EX10 | 4.00 | 1.94 | 1.001/1.006 | 1.37 | .50 | Urethane | 80 | |
| DR-754-95UR-EX10 | 4.00 | 1.94 | 1.001/1.006 | 1.37 | .50 | Urethane | 95 | |
| DR-9502-35UR-EX10 | 2.50 | .92 | 1.001/1.006 | 1.37 | .50 | Urethane | 35 | |
| DR-9502-60UR-EX10 | 2.50 | .92 | 1.001/1.006 | 1.37 | .50 | Urethane | 60 | |
| DR-9502-80UR-EX10 | 2.50 | .92 | 1.001/1.006 | 1.37 | .50 | Urethane | 80 | |
| DR-9502-95UR-EX10 | 2.50 | .92 | 1.001/1.006 | 1.37 | .50 | Urethane | 95 | |
| DR-9754-20-EX10 | 4.00 | .92 | 1.001/1.006 | 1.37 | .50 | Neoprene | 20 | |
| DR-9754-20W-EX10 | 4.00 | .92 | 1.001/1.006 | 1.37 | .50 | Nitrile | 20 | |
| DR-9754-35-EX10 | 4.00 | .92 | 1.001/1.006 | 1.37 | .50 | Neoprene | 35 | |
| DR-9754-35UR-EX10 | 4.00 | .92 | 1.001/1.006 | 1.37 | .50 | Urethane | 35 | |
| DR-9754-35W-EX10 | 4.00 | .92 | 1.001/1.006 | 1.37 | .50 | Nitrile | 35 | |
| DR-9754-60UR-EX10 | 4.00 | .92 | 1.001/1.006 | 1.37 | .50 | Urethane | 60 | |
| DR-9754-80UR-EX10 | 4.00 | .92 | 1.001/1.006 | 1.37 | .50 | Urethane | 80 | |
| DR-9754-95UR-EX10 | 4.00 | .92 | 1.001/1.006 | 1.37 | .50 | Urethane | 95 |
