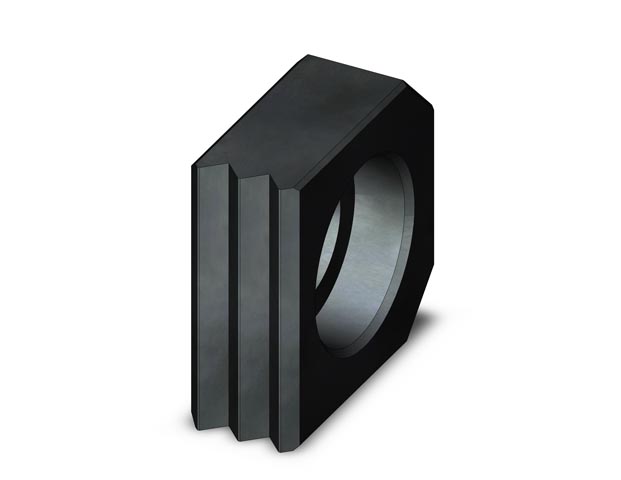

Tool Steel Gripper - Edge - 5/8 in X 1/4 in - Extra Fine Straight

Part Number: HSE-962-SS-EF
Width - Overall: 5/8
Height - Overall: 1/4
Height - C'Bore: .130
C'Bore For screw - mounting (clearance): 1/4 LHCS
Chamfer: 1/8x45°
Tooth Pattern: EF

Part:HSE-962-SS-EF

HSE-962-SS-EF

Download

Download CAD models here
