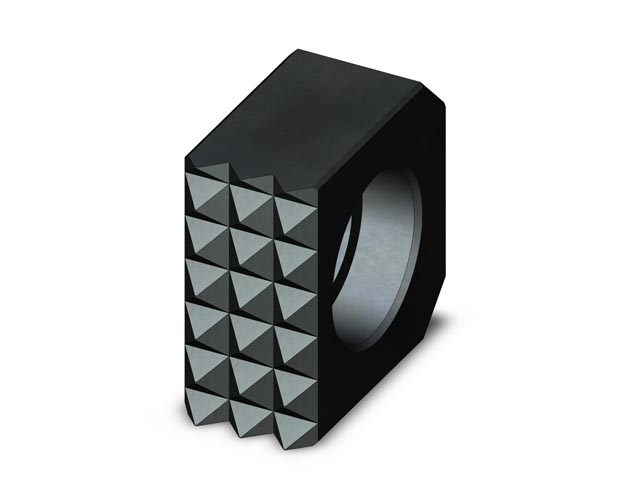

Tool Steel Gripper - Edge - 3/4 in X 3/8 in - Fine

Part Number: HSE-973
Weight: 0 lbs 1 ozs
Width - Overall: 3/4
Height - Overall: 3/8
Height - C'Bore: .161
C'Bore For screw - mounting (clearance): 5/16 LHCS
Chamfer: 1/8x45°
Tooth Pattern: Fine

Part:HSE-973

HSE-973

Download

Download CAD models here
