Grippers - Edge Gripper - Tool Steel - Diamond Serration - C'Bore - Inch (HSE)

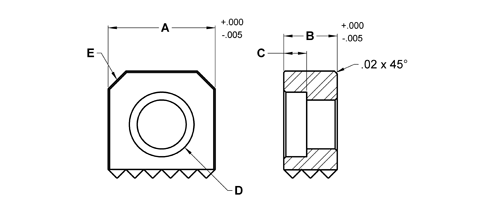

Drawing
Description
Media

Description

Made from M-2 high speed steel. Hardened to Rc 60/62 with black oxide finish. Square edge grippers have serrations on one side. Counter bored hole for front mounting with a socket head or low head cap screw.

Gripper Technical Information

HSE-902

Tool Steel Gripper - Edge - 3/8 in X 1/4 in - Extra Fine

Part Details
CAD

Part Number	Model Name	SKU	Description	Brand	Product ID	CAD Model Link	0	1	2	3	4	5
HSE-902	HSE-902	HSE-902	Tool Steel Gripper - Edge - 3/8 in X 1/4 in - Extra Fine	1	101317	CAD	3/8	1/4	.146	#6 SHCS	1/16x45°	EF
HSE-902-SF	HSE-902	HSE-902-SF	Tool Steel Gripper - Edge - 3/8 in X 1/4 in - Super Fine	1	101318	CAD	3/8	1/4	.146	#6 SHCS	1/16x45°	SF
HSE-903	HSE-902	HSE-903	Tool Steel Gripper - Edge - 3/8 in X 3/8 in - Extra Fine	1	101326	CAD	3/8	3/8	.146	#6 SHCS	1/16x45°	EF
HSE-903-SF	HSE-902	HSE-903-SF	Tool Steel Gripper - Edge - 3/8 in X 3/8 in - Super Fine	1	101328	CAD	3/8	3/8	.146	#6 SHCS	1/16x45°	SF
HSE-905	HSE-902	HSE-905	Tool Steel Gripper - Edge - 3/8 in X 1/2 in - Extra Fine	1	101363	CAD	3/8	1/2	.146	#6 SHCS	1/16x45°	EF
HSE-905-SF	HSE-902	HSE-905-SF	Tool Steel Gripper - Edge - 3/8 in X 1/2 in - Super Fine	1	101366	CAD	3/8	1/2	.146	#6 SHCS	1/16x45°	SF
HSE-952	HSE-902	HSE-952	Tool Steel Gripper - Edge - 1/2 in X 1/4 in - Fine	1	101403	CAD	1/2	1/4	.170	#8 SHCS	3/32x45°	Fine
HSE-952-EF	HSE-902	HSE-952-EF	Tool Steel Gripper - Edge - 1/2 in X 1/4 in - Extra Fine	1	101405	CAD	1/2	1/4	.170	#8 SHCS	3/32x45°	EF
HSE-952-SF	HSE-902	HSE-952-SF	Tool Steel Gripper - Edge - 1/2 in X 1/4 in - Super Fine	1	101406	CAD	1/2	1/4	.170	#8 SHCS	3/32x45°	SF
HSE-953	HSE-902	HSE-953	Tool Steel Gripper - Edge - 1/2 in X 3/8 in - Fine	1	101435	CAD	1/2	3/8	.175	#8 SHCS	3/32x45°	Fine
HSE-953-EF	HSE-902	HSE-953-EF	Tool Steel Gripper - Edge - 1/2 in X 3/8 in - Extra Fine	1	101445	CAD	1/2	3/8	.175	#8 SHCS	3/32x45°	EF
HSE-953-SF	HSE-902	HSE-953-SF	Tool Steel Gripper - Edge - 1/2 in X 3/8 in - Super Fine	1	101454	CAD	1/2	3/8	.175	#8 SHCS	3/32x45°	SF
HSE-955	HSE-902	HSE-955	Tool Steel Gripper - Edge - 1/2 in X 1/2 in - Fine	1	101482	CAD	1/2	1/2	.175	#8 SHCS	3/32x45°	Fine
HSE-955-EF	HSE-902	HSE-955-EF	Tool Steel Gripper - Edge - 1/2 in X 1/2 in - Extra Fine	1	101497	CAD	1/2	1/2	.175	#8 SHCS	3/32x45°	EF
HSE-955-SF	HSE-902	HSE-955-SF	Tool Steel Gripper - Edge - 1/2 in X 1/2 in - Super Fine	1	101512	CAD	1/2	1/2	.175	#8 SHCS	3/32x45°	SF
HSE-962	HSE-902	HSE-962	Tool Steel Gripper - Edge - 5/8 in X 1/4 in - Fine	1	101539	CAD	5/8	1/4	.130	1/4 LHCS	1/8x45°	Fine
HSE-962-EF	HSE-902	HSE-962-EF	Tool Steel Gripper - Edge - 5/8 in X 1/4 in - Extra Fine	1	101546	CAD	5/8	1/4	.130	1/4 LHCS	1/8x45°	EF
HSE-963	HSE-902	HSE-963	Tool Steel Gripper - Edge - 5/8 in X 3/8 in - Fine	1	101565	CAD	5/8	3/8	.130	1/4 LHCS	1/8x45°	Fine
HSE-963-EF	HSE-902	HSE-963-EF	Tool Steel Gripper - Edge - 5/8 in X 3/8 in - Extra Fine	1	101568	CAD	5/8	3/8	.130	1/4 LHCS	1/8x45°	EF
HSE-965	HSE-902	HSE-965	Tool Steel Gripper - Edge - 5/8 in X 1/2 in - Fine	1	101592	CAD	5/8	1/2	.130	1/4 LHCS	1/8x45°	Fine
HSE-965-EF	HSE-902	HSE-965-EF	Tool Steel Gripper - Edge - 5/8 in X 1/2 in - Extra Fine	1	101596	CAD	5/8	1/2	.130	1/4 LHCS	1/8x45°	EF
HSE-972	HSE-902	HSE-972	Tool Steel Gripper - Edge - 3/4 in X 1/4 in - Fine	1	101621	CAD	3/4	1/4	.161	5/16 LHCS	1/8x45°	Fine
HSE-972-EF	HSE-902	HSE-972-EF	Tool Steel Gripper - Edge - 3/4 in X 1/4 in - Extra Fine	1	101625	CAD	3/4	1/4	.161	5/16 LHCS	1/8x45°	EF
HSE-973	HSE-902	HSE-973	Tool Steel Gripper - Edge - 3/4 in X 3/8 in - Fine	1	101652	CAD	3/4	3/8	.161	5/16 LHCS	1/8x45°	Fine
HSE-973-EF	HSE-902	HSE-973-EF	Tool Steel Gripper - Edge - 3/4 in X 3/8 in - Extra Fine	1	101663	CAD	3/4	3/8	.161	5/16 LHCS	1/8x45°	EF
HSE-975	HSE-902	HSE-975	Tool Steel Gripper - Edge - 3/4 in X 1/2 in - Fine	1	101688	CAD	3/4	1/2	.161	5/16 LHCS	1/8x45°	Fine
HSE-975-EF	HSE-902	HSE-975-EF	Tool Steel Gripper - Edge - 3/4 in X 1/2 in - Extra Fine	1	101694	CAD	3/4	1/2	.161	5/16 LHCS	1/8x45°	EF
HSE-102	HSE-902	HSE-102	Tool Steel Gripper - Edge - 1 in X 1/4 in - Fine	1	101224	CAD	1	1/4	.194	3/8 LHCS	1/8x45°	Fine
HSE-102-EF	HSE-902	HSE-102-EF	Tool Steel Gripper - Edge - 1 in X 1/4 in - Extra Fine	1	101227	CAD	1	1/4	.194	3/8 LHCS	1/8x45°	EF
HSE-103	HSE-902	HSE-103	Tool Steel Gripper - Edge - 1 in X 3/8 in - Fine	1	101252	CAD	1	3/8	.194	3/8 LHCS	1/8x45°	Fine
HSE-103-EF	HSE-902	HSE-103-EF	Tool Steel Gripper - Edge - 1 in X 3/8 in - Extra Fine	1	101253	CAD	1	3/8	.194	3/8 LHCS	1/8x45°	EF
HSE-105	HSE-902	HSE-105	Tool Steel Gripper - Edge - 1 in X 1/2 in - Fine	1	101287	CAD	1	1/2	.194	3/8 LHCS	1/8x45°	Fine
HSE-105-EF	HSE-902	HSE-105-EF	Tool Steel Gripper - Edge - 1 in X 1/2 in - Extra Fine	1	101294	CAD	1	1/2	.194	3/8 LHCS	1/8x45°	EF
