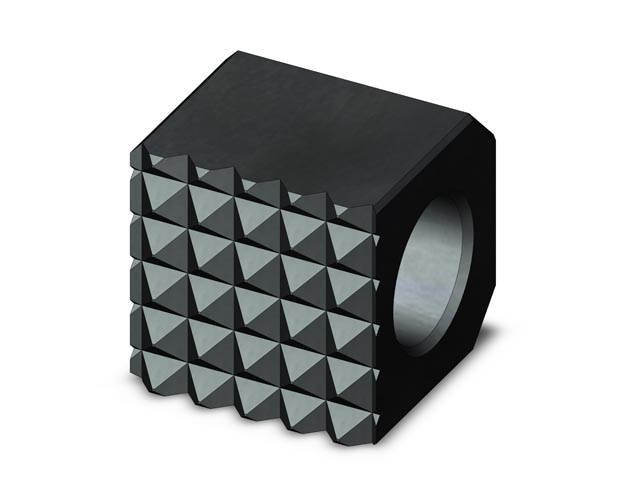

Tool Steel Gripper - Edge - 1/2 in X 1/2 in - Extra Fine

Part Number: HSE-955-EF
Width - Overall: 1/2
Height - Overall: 1/2
Height - C'Bore: .175
C'Bore For screw - mounting (clearance): #8 SHCS
Chamfer: 3/32x45°
Tooth Pattern: EF

Part:HSE-955-EF

HSE-955-EF
