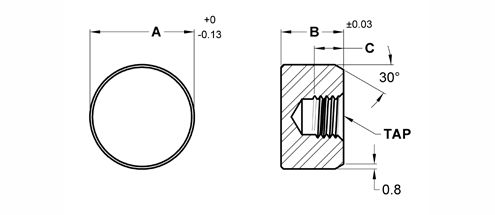

Rest Pads - Round - Stainless Steel - Tapped - Metric (MCSRP)
Drawing
Drawing
Description
Media
Description
Made from 17-4 stainless steel which provides high strength as well as protection against chemical and environmental corrosion. Heat treated to Rc 43/46. Blind-hole tap for back side mounting.
Gripper Technical Information
Generating CAD viewer. Please wait...
MCSRP-080
SS Rest Pad - Tapped - 8 mm Dia X 10 mm
Part Details
Part Details
CAD
Show More...
No file is available for download.
Part Number
Model Name
SKU
Description
Brand
Product ID
CAD Model Link
Price Link
0
1
2
3
MCSRP-080
MCSRP-080
MCSRP-080
SS Rest Pad - Tapped - 8 mm Dia X 10 mm
1
100977
CAD
8
10
5
M4x0.7
MCSRP-082
MCSRP-080
MCSRP-082
SS Rest Pad - Tapped - 8 mm Dia X 12 mm
1
100981
CAD
8
12
6.4
M4x0.7
MCSRP-100
MCSRP-080
MCSRP-100
SS Rest Pad - Tapped - 10 mm Dia X 10 mm
1
100985
CAD
10
10
5
M5x0.8
MCSRP-102
MCSRP-080
MCSRP-102
SS Rest Pad - Tapped - 10 mm Dia X 12 mm
1
101004
CAD
10
12
6.4
M5x0.8
MCSRP-120
MCSRP-080
MCSRP-120
SS Rest Pad - Tapped - 12 mm Dia X 10 mm
1
101026
CAD
12
10
5
M5x0.8
MCSRP-122
MCSRP-080
MCSRP-122
SS Rest Pad - Tapped - 12 mm Dia X 12 mm
1
101040
CAD
12
12
6.4
M5x0.8
MCSRP-160
MCSRP-080
MCSRP-160
SS Rest Pad - Tapped - 16 mm Dia X 10 mm
1
101047
CAD
16
10
5
M6x1.0
MCSRP-162
MCSRP-080
MCSRP-162
SS Rest Pad - Tapped - 16 mm Dia X 12 mm
1
101051
CAD
16
12
6.4
M6x1.0
MCSRP-200
MCSRP-080
MCSRP-200
SS Rest Pad - Tapped - 20 mm Dia X 10 mm
1
101067
CAD
20
10
5
M6x1.0
MCSRP-202
MCSRP-080
MCSRP-202
SS Rest Pad - Tapped - 20 mm Dia X 12 mm
1
101088
CAD
20
12
6.4
M6x1.0
MCSRP-250
MCSRP-080
MCSRP-250
SS Rest Pad - Tapped - 25 mm Dia X 10 mm
1
101100
CAD
25
10
5
M6x1.0
MCSRP-252
MCSRP-080
MCSRP-252
SS Rest Pad - Tapped - 25 mm Dia X 12 mm
1
101116
CAD
25
12
6.4
M6x1.0
Tapped (Metric)
BUY
CAD
Part Number
A
OD
mm
+0/-0.13
B
Height
mm
±0.03
C
Thread
Length
mm
Tap
CAD
MCSRP-080
8
10
5
M4x0.7
CAD
MCSRP-082
8
12
6.4
M4x0.7
CAD
MCSRP-100
10
10
5
M5x0.8
CAD
MCSRP-102
10
12
6.4
M5x0.8
CAD
MCSRP-120
12
10
5
M5x0.8
CAD
MCSRP-122
12
12
6.4
M5x0.8
CAD
MCSRP-160
16
10
5
M6x1.0
CAD
MCSRP-162
16
12
6.4
M6x1.0
CAD
MCSRP-200
20
10
5
M6x1.0
CAD
MCSRP-202
20
12
6.4
M6x1.0
CAD
MCSRP-250
25
10
5
M6x1.0
CAD
MCSRP-252
25
12
6.4
M6x1.0
