| SRP-30 |
SRP-30 |
SRP-30 |
Steel Rest Pad - Tapped - 5/16 in Dia X 3/8 in |
1 |
100615 |
CAD |
|
5/16 | 3/8 | 3/16 | #8-32 | |
| SRP-305 |
SRP-30 |
SRP-305 |
Steel Rest Pad - Tapped - 5/16 in Dia X 1/2 in |
1 |
100623 |
CAD |
|
5/16 | 1/2 | 5/16 | #8-32 | |
| SRP-40 |
SRP-30 |
SRP-40 |
Steel Rest Pad - Tapped - 3/8 in Dia X 3/8 in |
1 |
100627 |
CAD |
|
3/8 | 3/8 | 3/16 | #10-32 | |
| SRP-405 |
SRP-30 |
SRP-405 |
Steel Rest Pad - Tapped - 3/8 in Dia X 1/2 in |
1 |
100649 |
CAD |
|
3/8 | 1/2 | 5/16 | #10-32 | |
| SRP-50 |
SRP-30 |
SRP-50 |
Steel Rest Pad - Tapped - 1/2 in Dia X 3/8 in |
1 |
100657 |
CAD |
|
1/2 | 3/8 | 3/16 | #10-32 | |
| SRP-53 |
SRP-30 |
SRP-53 |
Steel Rest Pad - Tapped - 1/2 in Dia X 1/2 in |
1 |
100667 |
CAD |
|
1/2 | 1/2 | 5/16 | #10-32 | |
| SRP-62 |
SRP-30 |
SRP-62 |
Steel Rest Pad - Tapped - 5/8 in Dia X 3/8 in |
1 |
100679 |
CAD |
|
5/8 | 3/8 | 3/16 | 1/4-28 | |
| SRP-625 |
SRP-30 |
SRP-625 |
Steel Rest Pad - Tapped - 5/8 in Dia X 1/2 in |
1 |
100699 |
CAD |
|
5/8 | 1/2 | 5/16 | 1/4-28 | |
| SRP-75 |
SRP-30 |
SRP-75 |
Steel Rest Pad - Tapped - 3/4 in Dia X 3/8 in |
1 |
100708 |
CAD |
|
3/4 | 3/8 | 3/16 | 1/4-28 | |
| SRP-755 |
SRP-30 |
SRP-755 |
Steel Rest Pad - Tapped - 3/4 in Dia X 1/2 in |
1 |
100717 |
CAD |
|
3/4 | 1/2 | 5/16 | 1/4-28 | |
| SRP-81 |
SRP-30 |
SRP-81 |
Steel Rest Pad - Tapped - 1 in Dia X 3/8 in |
1 |
100731 |
CAD |
|
1 | 3/8 | 3/16 | 1/4-28 | |
| SRP-815 |
SRP-30 |
SRP-815 |
Steel Rest Pad - Tapped - 1 in Dia X 1/2 in |
1 |
100752 |
CAD |
|
1 | 1/2 | 5/16 | 1/4-28 | |
Results by Category
Results by Keyword
Results by Part Number

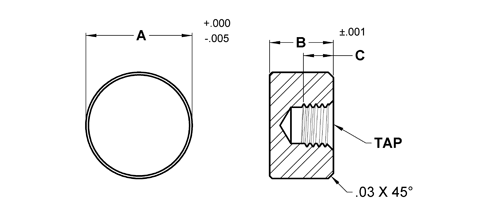

Drawing
