DuraSoft® Bearing Mount Rollers - Standard Bearing - Inch

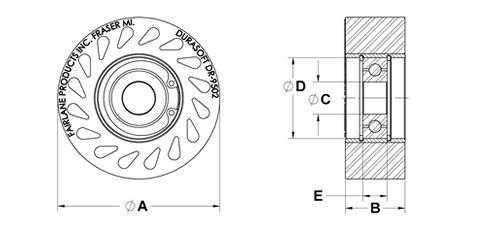

Drawing
Description
Media

Description

DuraSoft rollers have a smooth surface and are permanently bonded to a steel insert with the bearings held into place with snap rings. The "teardrop" holes allow the roller to flex for firm yet non-damaging contact. Rollers are made from urethane with hardness ranging from 35 to 95 durometer. Supplied with standard bearings.

Roller Material Information

DR-9502-35UR-B

DuraSoft® Roller - Standard Bearing Mount - 35 Dur Urethane - 2.50 in Dia X 0.92 in Wide

Part Details
CAD

Part Number	Model Name	SKU	Description	Brand	Product ID	CAD Model Link	0	1	2	3	4	5	6	7	8
DR-9502-35UR-B	DR-9502-35	DR-9502-35UR-B	DuraSoft® Roller - Standard Bearing Mount - 35 Dur Urethane - 2.50 in Dia X 0.92 in Wide	1	113142	CAD	2.50	.92	.500/.505	1.245/1.250	.370/.380	1	B	Urethane	35
DR-9502-60UR-B	DR-9502-35	DR-9502-60UR-B	DuraSoft® Roller - Standard Bearing Mount - 60 Dur Urethane - 2.50 in Dia X 0.92 in Wide	1	113173	CAD	2.50	.92	.500/.505	1.245/1.250	.370/.380	1	B	Urethane	60
DR-9502-80UR-B	DR-9502-35	DR-9502-80UR-B	DuraSoft® Roller - Standard Bearing Mount - 80 Dur Urethane - 2.50 in Dia X 0.92 in Wide	1	113182	CAD	2.50	.92	.500/.505	1.245/1.250	.370/.380	1	B	Urethane	80
DR-9502-95UR-B	DR-9502-35	DR-9502-95UR-B	DuraSoft® Roller - Standard Bearing Mount - 95 Dur Urethane - 2.50 in Dia X 0.92 in Wide	1	113198	CAD	2.50	.92	.500/.505	1.245/1.250	.370/.380	1	B	Urethane	95
DR-502-35UR-B	DR-9502-35	DR-502-35UR-B	DuraSoft® Roller - Standard Bearing Mount - 35 Dur Urethane - 2.50 in Dia X 1.94 in Wide	1	112839	CAD	2.50	1.94	.500/.505	1.245/1.250	.745/.755	1	C	Urethane	35
DR-502-60UR-B	DR-9502-35	DR-502-60UR-B	DuraSoft® Roller - Standard Bearing Mount - 60 Dur Urethane - 2.50 in Dia X 1.94 in Wide	1	112865	CAD	2.50	1.94	.500/.505	1.245/1.250	.745/.755	1	C	Urethane	60
DR-502-80UR-B	DR-9502-35	DR-502-80UR-B	DuraSoft® Roller - Standard Bearing Mount - 80 Dur Urethane - 2.50 in Dia X 1.94 in Wide	1	112902	CAD	2.50	1.94	.500/.505	1.245/1.250	.745/.755	1	C	Urethane	80
DR-502-95UR-B	DR-9502-35	DR-502-95UR-B	DuraSoft® Roller - Standard Bearing Mount - 95 Dur Urethane - 2.50 in Dia X 1.94 in Wide	1	112929	CAD	2.50	1.94	.500/.505	1.245/1.250	.745/.755	1	C	Urethane	95
DR-9754-20-B	DR-9754-20	DR-9754-20-B	DuraSoft® Roller - Standard Bearing Mount - 20 Dur Neoprene - 4.00 in Dia X 0.92 in Wide	1	113235	CAD	4.00	.92	.500/.505	1.245/1.1250	.370/.380	1	B	Neoprene	20
DR-9754-35-B	DR-9754-20	DR-9754-35-B	DuraSoft® Roller - Standard Bearing Mount - 35 Dur Neoprene - 4.00 in Dia X 0.92 in Wide	1	113266	CAD	4.00	.92	.500/.505	1.245/1.1250	.370/.380	1	B	Neoprene	35
DR-9754-20W-B	DR-9754-20	DR-9754-20W-B	DuraSoft® Roller - Standard Bearing Mount - 20 Dur Nitrile - 4.00 in Dia X 0.92 in Wide	1	113257	CAD	4.00	.92	.500/.505	1.245/1.1250	.370/.380	1	B	Nitrile	20
DR-9754-35W-B	DR-9754-20	DR-9754-35W-B	DuraSoft® Roller - Standard Bearing Mount - 35 Dur Nitrile - 4.00 in Dia X 0.92 in Wide	1	113312	CAD	4.00	.92	.500/.505	1.245/1.1250	.370/.380	1	B	Nitrile	35
DR-9754-35UR-B	DR-9754-20	DR-9754-35UR-B	DuraSoft® Roller - Standard Bearing Mount - 35 Dur Urethane - 4.00 in Dia X 0.92 in Wide	1	113299	CAD	4.00	.92	.500/.505	1.245/1.1250	.370/.380	1	B	Urethane	35
DR-9754-60UR-B	DR-9754-20	DR-9754-60UR-B	DuraSoft® Roller - Standard Bearing Mount - 60 Dur Urethane - 4.00 in Dia X 0.92 in Wide	1	113323	CAD	4.00	.92	.500/.505	1.245/1.1250	.370/.380	1	B	Urethane	60
DR-9754-80UR-B	DR-9754-20	DR-9754-80UR-B	DuraSoft® Roller - Standard Bearing Mount - 80 Dur Urethane - 4.00 in Dia X 0.92 in Wide	1	113340	CAD	4.00	.92	.500/.505	1.245/1.1250	.370/.380	1	B	Urethane	80
DR-9754-95UR-B	DR-9754-20	DR-9754-95UR-B	DuraSoft® Roller - Standard Bearing Mount - 95 Dur Urethane - 4.00 in Dia X 0.92 in Wide	1	113373	CAD	4.00	.92	.500/.505	1.245/1.1250	.370/.380	1	B	Urethane	95
DR-754-20-B	DR-9754-20	DR-754-20-B	DuraSoft® Roller - Standard Bearing Mount - 20 Dur Neoprene - 4.00 in Dia X 1.94 in Wide	1	112982	CAD	4.00	1.94	.500/.505	1.245/1.250	.745/.755	1	C	Neoprene	20
DR-754-35-B	DR-9754-20	DR-754-35-B	DuraSoft® Roller - Standard Bearing Mount - 35 Dur Neoprene - 4.00 in Dia X 1.94 in Wide	1	113004	CAD	4.00	1.94	.500/.505	1.245/1.250	.745/.755	1	C	Neoprene	35
DR-754-20W-B	DR-9754-20	DR-754-20W-B	DuraSoft® Roller - Standard Bearing Mount - 20 Dur Nitrile - 4.00 in Dia X 1.94 in Wide	1	112992	CAD	4.00	1.94	.500/.505	1.245/1.250	.745/.755	1	C	Nitrile	20
DR-754-35W-B	DR-9754-20	DR-754-35W-B	DuraSoft® Roller - Standard Bearing Mount - 35 Dur Nitrile - 4.00 in Dia X 1.94 in Wide	1	113051	CAD	4.00	1.94	.500/.505	1.245/1.250	.745/.755	1	C	Nitrile	35
DR-754-35UR-B	DR-9754-20	DR-754-35UR-B	DuraSoft® Roller - Standard Bearing Mount - 35 Dur Urethane - 4.00 in Dia X 1.94 in Wide	1	113016	CAD	4.00	1.94	.500/.505	1.245/1.250	.745/.755	1	C	Urethane	35
DR-754-60UR-B	DR-9754-20	DR-754-60UR-B	DuraSoft® Roller - Standard Bearing Mount - 60 Dur Urethane - 4.00 in Dia X 1.94 in Wide	1	113079	CAD	4.00	1.94	.500/.505	1.245/1.250	.745/.755	1	C	Urethane	60
DR-754-80UR-B	DR-9754-20	DR-754-80UR-B	DuraSoft® Roller - Standard Bearing Mount - 80 Dur Urethane - 4.00 in Dia X 1.94 in Wide	1	113099	CAD	4.00	1.94	.500/.505	1.245/1.250	.745/.755	1	C	Urethane	80
DR-754-95UR-B	DR-9754-20	DR-754-95UR-B	DuraSoft® Roller - Standard Bearing Mount - 95 Dur Urethane - 4.00 in Dia X 1.94 in Wide	1	113124	CAD	4.00	1.94	.500/.505	1.245/1.250	.745/.755	1	C	Urethane	95
