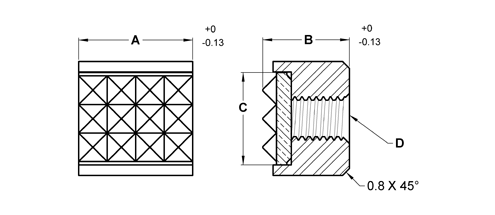

Grippers - Square - Carbide Tipped - Diamond Serration - Tapped - Metric (MCT)

Constructed with a serrated carbide gripper pad brazed to a heat treated alloy steel body. Blind-hole tap for back side mounting.

MCT-9120

Part Number	Model Name	SKU	Description	Brand	Product ID	CAD Model Link	Price Link	0	1	2	3	4
MCT-9120	MCT-9120	MCT-9120	Carbide Tipped Gripper - Square - 12 mm X 10 mm - Fine	1	100709	CAD		12	10	13/32	M5x0.8	Fine
MCT-9122	MCT-9120	MCT-9122	Carbide Tipped Gripper - Square - 12 mm X 12 mm - Fine	1	100712	CAD		12	12	13/32	M5x0.8	Fine
