Grippers - Square - Carbide Tipped - Diamond Serration - Tapped - Inch (CT)

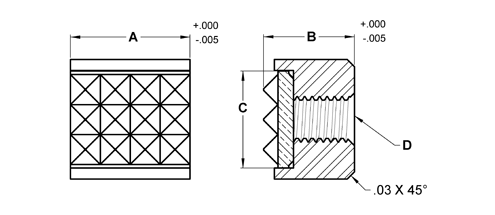

Drawing
Description
Media
Description
Constructed with a serrated carbide gripper pad brazed to a heat treated alloy steel body. Blind-hole tap for back side mounting.
Gripper Technical Information
Generating CAD viewer. Please wait...
CT-870
Carbide Tipped Gripper - Square - 1/2 in X 3/8 in - Fine
Part Details
CAD
Show More...
No file is available for download.
Part Number
Model Name
SKU
Description
Brand
Product ID
CAD Model Link
Price Link
0
1
2
3
4
CT-870
CT-870
CT-870
Carbide Tipped Gripper - Square - 1/2 in X 3/8 in - Fine
1
100659
CAD
1/2
3/8
13/32
#10-32
Fine
CT-870-EF
CT-870
CT-870-EF
Carbide Tipped Gripper - Square - 1/2 in X 3/8 in - Extra Fine
1
100665
CAD
1/2
3/8
13/32
#10-32
EF
CT-875
CT-870
CT-875
Carbide Tipped Gripper - Square - 1/2 in X 1/2 in - Fine
1
100676
CAD
1/2
1/2
13/32
#10-32
Fine
CT-875-EF
CT-870
CT-875-EF
Carbide Tipped Gripper - Square - 1/2 in X 1/2 in - Extra Fine
1
100683
CAD
1/2
1/2
13/32
#10-32
EF
MCT-870-EF
CT-870
MCT-870-EF
Carbide Tipped Gripper - Square - 1/2 in X 3/8 in - Extra Fine
1
100698
CAD
1/2
3/8
13/32
M6x1.0
EF
