Workholding & Positioning
>
Grippers
>
Fixed/Non-Adjustable
>
HS - C`Bored
>
Square C`Bored (Inch)
Grippers - Square - Tool Steel - Diamond Serration - C'Bore - Inch (HS-C)

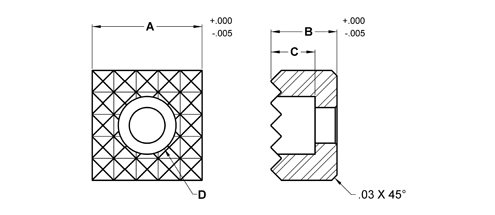

Drawing
Drawing
Description
Media
Description
Made from M-2 high speed steel. Hardened to Rc 60/62 with black oxide finish. Serrated for positive holding in tough applications. Counter bored hole for front mounting with a socket head cap screw.
Gripper Technical Information
Generating CAD viewer. Please wait...
HS-92-C
Tool Steel Gripper - Square w/ C'Bore - 1/2 in X 3/8 in - Fine
Part Details
Part Details
CAD
Show More...
No file is available for download.
Part Number
Model Name
SKU
Description
Brand
Product ID
CAD Model Link
Price Link
0
1
2
3
4
HS-92-C
HS-92-C
HS-92-C
Tool Steel Gripper - Square w/ C'Bore - 1/2 in X 3/8 in - Fine
1
100552
CAD
1/2
3/8
1/4
#10 SHCS
Fine
HS-92-C-EF
HS-92-C
HS-92-C-EF
Tool Steel Gripper - Square w/ C'Bore - 1/2 in X 3/8 in - Extra Fine
1
100554
CAD
1/2
3/8
1/4
#10 SHCS
EF
HS-92-C-SF
HS-92-C
HS-92-C-SF
Tool Steel Gripper - Square w/ C'Bore - 1/2 in X 3/8 in - Super Fine
1
100562
CAD
1/2
3/8
1/4
#10 SHCS
SF
HS-95-C
HS-92-C
HS-95-C
Tool Steel Gripper - Square w/ C'Bore - 1/2 in X 1/2 in - Fine
1
100610
CAD
1/2
1/2
1/4
#10 SHCS
Fine
HS-95-C-EF
HS-92-C
HS-95-C-EF
Tool Steel Gripper - Square w/ C'Bore - 1/2 in X 1/2 in - Extra Fine
1
100619
CAD
1/2
1/2
1/4
#10 SHCS
EF
HS-95-C-SF
HS-92-C
HS-95-C-SF
Tool Steel Gripper - Square w/ C'Bore - 1/2 in X 1/2 in - Super Fine
1
100626
CAD
1/2
1/2
1/4
#10 SHCS
SF
HS-962-C
HS-92-C
HS-962-C
Tool Steel Gripper - Square w/ C'Bore - 5/8 in X 3/8 in - Fine
1
100797
CAD
5/8
3/8
1/4
#10 SHCS
Fine
HS-962-C-EF
HS-92-C
HS-962-C-EF
Tool Steel Gripper - Square w/ C'Bore - 5/8 in X 3/8 in - Extra Fine
1
100812
CAD
5/8
3/8
1/4
#10 SHCS
EF
HS-9625-C
HS-92-C
HS-9625-C
Tool Steel Gripper - Square w/ C'Bore - 5/8 in X 1/2 in - Fine
1
100857
CAD
5/8
1/2
1/4
#10 SHCS
Fine
HS-9625-C-EF
HS-92-C
HS-9625-C-EF
Tool Steel Gripper - Square w/ C'Bore - 5/8 in X 1/2 in - Extra Fine
1
100859
CAD
5/8
1/2
1/4
#10 SHCS
EF
HS-963-C
HS-92-C
HS-963-C
Tool Steel Gripper - Square w/ C'Bore - 5/8 in X 3/8 in - Coarse
1
100913
CAD
5/8
3/8
1/4
#10 SHCS
Coarse
HS-9635-C
HS-92-C
HS-9635-C
Tool Steel Gripper - Square w/ C'Bore - 5/8 in X 1/2 in - Coarse
1
100942
CAD
5/8
1/2
1/4
#10 SHCS
Coarse
HS-97-C
HS-92-C
HS-97-C
Tool Steel Gripper - Square w/ C'Bore - 3/4 in X 1/2 in - Fine
1
100973
CAD
3/4
1/2
5/16
1/4 SHCS
Fine
HS-97-C-EF
HS-92-C
HS-97-C-EF
Tool Steel Gripper - Square w/ C'Bore - 3/4 in X 1/2 in - Extra Fine
1
100983
CAD
3/4
1/2
5/16
1/4 SHCS
EF
HS-98-C
HS-92-C
HS-98-C
Tool Steel Gripper - Square w/ C'Bore - 3/4 in X 1/2 in - Coarse
1
101074
CAD
3/4
1/2
5/16
1/4 SHCS
Coarse
HS-101-C
HS-92-C
HS-101-C
Tool Steel Gripper - Square w/ C'Bore - 1 in X 1/2 in - Fine
1
100333
CAD
1
1/2
5/16
1/4 SHCS
Fine
HS-101-C-EF
HS-92-C
HS-101-C-EF
Tool Steel Gripper - Square w/ C'Bore - 1 in X 1/2 in - Extra Fine
1
100336
CAD
1
1/2
5/16
1/4 SHCS
EF
HS-102-C
HS-92-C
HS-102-C
Tool Steel Gripper - Square w/ C'Bore - 1 in X 1/2 in - Coarse
1
100405
CAD
1
1/2
5/16
1/4 SHCS
Coarse
Square C`Bored (Inch)
BUY
CAD
Part Number
A
OD
in
+.000/-.005
B
Height
in
+.000/-.005
C
C'Bore
in
D
C'Bore
For
Tooth
Pattern
CAD
HS-92-C
1/2
3/8
1/4
#10 SHCS
Fine
CAD
HS-92-C-EF
1/2
3/8
1/4
#10 SHCS
EF
CAD
HS-92-C-SF
1/2
3/8
1/4
#10 SHCS
SF
CAD
HS-95-C
1/2
1/2
1/4
#10 SHCS
Fine
CAD
HS-95-C-EF
1/2
1/2
1/4
#10 SHCS
EF
CAD
HS-95-C-SF
1/2
1/2
1/4
#10 SHCS
SF
CAD
HS-962-C
5/8
3/8
1/4
#10 SHCS
Fine
CAD
HS-962-C-EF
5/8
3/8
1/4
#10 SHCS
EF
CAD
HS-9625-C
5/8
1/2
1/4
#10 SHCS
Fine
CAD
HS-9625-C-EF
5/8
1/2
1/4
#10 SHCS
EF
CAD
HS-963-C
5/8
3/8
1/4
#10 SHCS
Coarse
CAD
HS-9635-C
5/8
1/2
1/4
#10 SHCS
Coarse
CAD
HS-97-C
3/4
1/2
5/16
1/4 SHCS
Fine
CAD
HS-97-C-EF
3/4
1/2
5/16
1/4 SHCS
EF
CAD
HS-98-C
3/4
1/2
5/16
1/4 SHCS
Coarse
CAD
HS-101-C
1
1/2
5/16
1/4 SHCS
Fine
CAD
HS-101-C-EF
1
1/2
5/16
1/4 SHCS
EF
CAD
HS-102-C
1
1/2
5/16
1/4 SHCS
Coarse
