Hex Head Swivots® Gripper Assembly - Serrated Tool Steel Ball - Metric (MBUH-S)

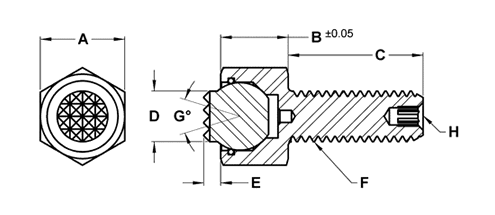

Drawing
Description
Media

Description

The replaceable serrated ball swivels to allow for self-alignment on uneven surfaces. A Viton O-ring holds the ball in place while keeping contaminants out and providing smooth ball movement. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. The replaceable ball is made from M-2 high speed steel, heat treated to Rc 60/62. Replacement balls and O-rings can be ordered separately.

Gripper Technical Information

MBUH-06012-S

Hex Design Swivot - M6 X 12 mm - Super Fine

Part Details
CAD

Part Number	Model Name	SKU	Description	Brand	Product ID	CAD Model Link	0	1	2	3	4	5	6	7	8	9	10	11
MBUH-06012-S	MBUH-06012-S	MBUH-06012-S	Hex Design Swivot - M6 X 12 mm - Super Fine	1	101874	CAD	10	8	12	6	1.5	M6x1.0	28	—	7	MBUB-070-S	SF	2,061
MBUH-06012-S-T	MBUH-06012-S	MBUH-06012-S-T	Hex Design Swivot - M6 X 12 mm - Super Fine - Tall	1	101877	CAD	10	8	12	6	3	M6x1.0	28	—	7	MBUB-070-S-T	SF	2,061
MBUH-06025-S	MBUH-06012-S	MBUH-06025-S	Hex Design Swivot - M6 X 25 mm - Super Fine	1	101934	CAD	10	8	25	6	1.5	M6x1.0	28	—	7	MBUB-070-S	SF	2,061
MBUH-06025-S-T	MBUH-06012-S	MBUH-06025-S-T	Hex Design Swivot - M6 X 25 mm - Super Fine - Tall	1	101936	CAD	10	8	25	6	3	M6x1.0	28	—	7	MBUB-070-S-T	SF	2,061
MBUH-06040-S	MBUH-06012-S	MBUH-06040-S	Hex Design Swivot - M6 X 40 mm - Super Fine	1	102000	CAD	10	8	40	6	1.5	M6x1.0	28	—	7	MBUB-070-S	SF	2,061
MBUH-06040-S-T	MBUH-06012-S	MBUH-06040-S-T	Hex Design Swivot - M6 X 40 mm - Super Fine - Tall	1	102016	CAD	10	8	40	6	3	M6x1.0	28	—	7	MBUB-070-S-T	SF	2,061
MBUH-08012-S	MBUH-06012-S	MBUH-08012-S	Hex Design Swivot - M8 X 12 mm - Extra Fine	1	102079	CAD	13	11.5	12	8.5	1.5	M8x1.25	24	—	10	MBUB-100-S	EF	3,450
MBUH-08012-S-T	MBUH-06012-S	MBUH-08012-S-T	Hex Design Swivot - M8 X 12 mm - Extra Fine - Tall	1	102089	CAD	13	11.5	12	8.5	3	M8x1.25	24	—	10	MBUB-100-S-T	EF	3,450
MBUH-08025-S	MBUH-06012-S	MBUH-08025-S	Hex Design Swivot - M8 X 25 mm - Extra Fine	1	102154	CAD	13	11.5	25	8.5	1.5	M8x1.25	24	—	10	MBUB-100-S	EF	3,450
MBUH-08025-S-T	MBUH-06012-S	MBUH-08025-S-T	Hex Design Swivot - M8 X 25 mm - Extra Fine - Tall	1	102162	CAD	13	11.5	25	8.5	3	M8x1.25	24	—	10	MBUB-100-S-T	EF	3,450
MBUH-08040-S	MBUH-06012-S	MBUH-08040-S	Hex Design Swivot - M8 X 40 mm - Extra Fine	1	102274	CAD	13	11.5	40	8.5	1.5	M8x1.25	24	—	10	MBUB-100-S	EF	3,450
MBUH-08040-S-T	MBUH-06012-S	MBUH-08040-S-T	Hex Design Swivot - M8 X 40 mm - Extra Fine - Tall	1	102279	CAD	13	11.5	40	8.5	3	M8x1.25	24	—	10	MBUB-100-S-T	EF	3,450
MBUH-10015-S	MBUH-06012-S	MBUH-10015-S	Hex Design Swivot - M10 X 15 mm - Extra Fine	1	102357	CAD	17	13	15	10	4	M10x1.5	42	3	13	MBUB-130-S	EF	4,194
MBUH-10015-S-T	MBUH-06012-S	MBUH-10015-S-T	Hex Design Swivot - M10 X 15 mm - Extra Fine - Tall	1	102371	CAD	17	13	15	10	6	M10x1.5	42	3	13	MBUB-130-S-T	EF	4,194
MBUH-10030-S	MBUH-06012-S	MBUH-10030-S	Hex Design Swivot - M10 X 30 mm - Extra Fine	1	102450	CAD	17	13	30	10	4	M10x1.5	42	3	13	MBUB-130-S	EF	4,194
MBUH-10030-S-T	MBUH-06012-S	MBUH-10030-S-T	Hex Design Swivot - M10 X 30 mm - Extra Fine - Tall	1	102453	CAD	17	13	30	10	6	M10x1.5	42	3	13	MBUB-130-S-T	EF	4,194
MBUH-10050-S	MBUH-06012-S	MBUH-10050-S	Hex Design Swivot - M10 X 50 mm - Extra Fine	1	102549	CAD	17	13	50	10	4	M10x1.5	42	3	13	MBUB-130-S	EF	4,194
MBUH-10050-S-T	MBUH-06012-S	MBUH-10050-S-T	Hex Design Swivot - M10 X 50 mm - Extra Fine - Tall	1	102560	CAD	17	13	50	10	6	M10x1.5	42	3	13	MBUB-130-S-T	EF	4,194
MBUH-12020-S	MBUH-06012-S	MBUH-12020-S	Hex Design Swivot - M12 X 20 mm - Fine	1	102652	CAD	19	15	20	12	4	M12x1.75	45	5	15	MBUB-150-S	Fine	6,627
MBUH-12020-S-T	MBUH-06012-S	MBUH-12020-S-T	Hex Design Swivot - M12 X 20 mm - Fine - Tall	1	102666	CAD	19	15	20	12	6	M12x1.75	45	5	15	MBUB-150-S-T	Fine	6,627
MBUH-12040-S	MBUH-06012-S	MBUH-12040-S	Hex Design Swivot - M12 X 40 mm - Fine	1	102725	CAD	19	15	40	12	4	M12x1.75	45	5	15	MBUB-150-S	Fine	6,627
MBUH-12040-S-T	MBUH-06012-S	MBUH-12040-S-T	Hex Design Swivot - M12 X 40 mm - Fine - Tall	1	102732	CAD	19	15	40	12	6	M12x1.75	45	5	15	MBUB-150-S-T	Fine	6,627
MBUH-12060-S	MBUH-06012-S	MBUH-12060-S	Hex Design Swivot - M12 X 60 mm - Fine	1	102822	CAD	19	15	60	12	4	M12x1.75	45	5	15	MBUB-150-S	Fine	6,627
MBUH-12060-S-T	MBUH-06012-S	MBUH-12060-S-T	Hex Design Swivot - M12 X 60 mm - Fine - Tall	1	102834	CAD	19	15	60	12	6	M12x1.75	45	5	15	MBUB-150-S-T	Fine	6,627
MBUH-16025-S	MBUH-06012-S	MBUH-16025-S	Hex Design Swivot - M16 X 25 mm - Fine	1	102906	CAD	24	19	25	16	4	M16x2.0	40	6	20	MBUB-200-S	Fine	11,183
MBUH-16050-S	MBUH-06012-S	MBUH-16050-S	Hex Design Swivot - M16 X 50 mm - Fine	1	102958	CAD	24	19	50	16	4	M16x2.0	40	6	20	MBUB-200-S	Fine	11,183
MBUH-16050-S-T	MBUH-06012-S	MBUH-16050-S-T	Hex Design Swivot - M16 X 50 mm - Fine - Tall	1	102960	CAD	24	19	50	16	6	M16x2.0	40	6	20	MBUB-200-S-T	Fine	11,183
MBUH-16080-S	MBUH-06012-S	MBUH-16080-S	Hex Design Swivot - M16 X 80 mm - Fine	1	103024	CAD	24	19	80	16	4	M16x2.0	40	6	20	MBUB-200-S	Fine	11,183
MBUH-16080-S-T	MBUH-06012-S	MBUH-16080-S-T	Hex Design Swivot - M16 X 80 mm - Fine - Tall	1	103026	CAD	24	19	80	16	6	M16x2.0	40	6	20	MBUB-200-S-T	Fine	11,183
