Detent Pin - Ring Handle - Stainless Steel (DCS)

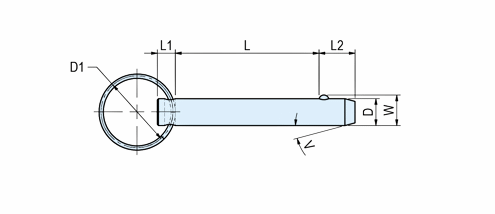

Drawing
Description
Media

Description

These pins have a wide range of uses in fastening, locating and alignment applications. The spring-loaded ball retracts when it is inserted or removed. Commercial drill tolerances provide clearance for the pins. The pins are made from 303 stainless steel with 316 stainless rings. The ball and spring are made from 316 stainless steel. Made in the USA. RoHS compliant. DFARS compliant. Wire rope lanyard assemblies available separately.

DCS-18-050

Detent Pin - Ring Handle - 303 Stainless Steel - 3/16 in Dia X 0.50 in

Part Details
CAD

Part Number	Model Name	SKU	Description	Brand	Product ID	CAD Model Link	0	1	2	3	4	5	6	7	8
DCS-18-050	DCS-18-050	DCS-18-050	Detent Pin - Ring Handle - 303 Stainless Steel - 3/16 in Dia X 0.50 in	1	131831	CAD	3/16	1.00	0.5	0.187	0.200	0.204	15	4 - 5	2,740
DCS-18-080	DCS-18-050	DCS-18-080	Detent Pin - Ring Handle - 303 Stainless Steel - 3/16 in Dia X 0.80 in	1	131832	CAD	3/16	1.00	0.8	0.187	0.200	0.204	15	4 - 5	2,740
DCS-18-100	DCS-18-050	DCS-18-100	Detent Pin - Ring Handle - 303 Stainless Steel - 3/16 in Dia X 1.00 in	1	131833	CAD	3/16	1.00	1	0.187	0.200	0.204	15	4 - 5	2,740
DCS-18-130	DCS-18-050	DCS-18-130	Detent Pin - Ring Handle - 303 Stainless Steel - 3/16 in Dia X 1.30 in	1	131834	CAD	3/16	1.00	1.3	0.187	0.200	0.204	15	4 - 5	2,740
DCS-18-150	DCS-18-050	DCS-18-150	Detent Pin - Ring Handle - 303 Stainless Steel - 3/16 in Dia X 1.50 in	1	131835	CAD	3/16	1.00	1.5	0.187	0.200	0.204	15	4 - 5	2,740
DCS-18-200	DCS-18-050	DCS-18-200	Detent Pin - Ring Handle - 303 Stainless Steel - 3/16 in Dia X 2.00 in	1	131836	CAD	3/16	1.00	2	0.187	0.200	0.204	15	4 - 5	2,740
DCS-18-250	DCS-18-050	DCS-18-250	Detent Pin - Ring Handle - 303 Stainless Steel - 3/16 in Dia X 2.50 in	1	131837	CAD	3/16	1.00	2.5	0.187	0.200	0.204	15	4 - 5	2,740
DCS-18-300	DCS-18-050	DCS-18-300	Detent Pin - Ring Handle - 303 Stainless Steel - 3/16 in Dia X 3.00 in	1	131838	CAD	3/16	1.00	3	0.187	0.200	0.204	15	4 - 5	2,740
DCS-25-050	DCS-25-050	DCS-25-050	Detent Pin - Ring Handle - 303 Stainless Steel - 1/4 in Dia X 0.50 in	1	131839	CAD	1/4	1.00	0.5	0.22	0.312	0.286	15	5 - 6	4,870
DCS-25-080	DCS-25-050	DCS-25-080	Detent Pin - Ring Handle - 303 Stainless Steel - 1/4 in Dia X 0.80 in	1	131840	CAD	1/4	1.00	0.8	0.220	0.312	0.286	15	5 - 6	4,870
DCS-25-100	DCS-25-050	DCS-25-100	Detent Pin - Ring Handle - 303 Stainless Steel - 1/4 in Dia X 1.00 in	1	131841	CAD	1/4	1.00	1	0.220	0.312	0.286	15	5 - 6	4,870
DCS-25-130	DCS-25-050	DCS-25-130	Detent Pin - Ring Handle - 303 Stainless Steel - 1/4 in Dia X 1.30 in	1	131842	CAD	1/4	1.00	1.3	0.220	0.312	0.286	15	5 - 6	4,870
DCS-25-150	DCS-25-050	DCS-25-150	Detent Pin - Ring Handle - 303 Stainless Steel - 1/4 in Dia X 1.50 in	1	131712	CAD	1/4	1.00	1.5	0.220	0.312	0.286	15	5 - 6	4,870
DCS-25-200	DCS-25-050	DCS-25-200	Detent Pin - Ring Handle - 303 Stainless Steel - 1/4 in Dia X 2.00 in	1	131713	CAD	1/4	1.00	2	0.220	0.312	0.286	15	5 - 6	4,870
DCS-25-250	DCS-25-050	DCS-25-250	Detent Pin - Ring Handle - 303 Stainless Steel - 1/4 in Dia X 2.50 in	1	131714	CAD	1/4	1.00	2.5	0.220	0.312	0.286	15	5 - 6	4,870
DCS-25-300	DCS-25-050	DCS-25-300	Detent Pin - Ring Handle - 303 Stainless Steel - 1/4 in Dia X 3.00 in	1	131715	CAD	1/4	1.00	3	0.220	0.312	0.286	15	5 - 6	4,870
DCS-31-080	DCS-31-080	DCS-31-080	Detent Pin - Ring Handle - 303 Stainless Steel - 5/16 in Dia X 0.80 in	1	131716	CAD	5/16	1.00	0.8	0.250	0.375	0.358	15	5 - 6	7,590
DCS-31-100	DCS-31-080	DCS-31-100	Detent Pin - Ring Handle - 303 Stainless Steel - 5/16 in Dia X 1.00 in	1	131697	CAD	5/16	1.00	1	0.250	0.375	0.358	15	5 - 6	7,590
DCS-31-130	DCS-31-080	DCS-31-130	Detent Pin - Ring Handle - 303 Stainless Steel - 5/16 in Dia X 1.30 in	1	131698	CAD	5/16	1.00	1.3	0.250	0.375	0.358	15	5 - 6	7,590
DCS-31-150	DCS-31-080	DCS-31-150	Detent Pin - Ring Handle - 303 Stainless Steel - 5/16 in Dia X 1.50 in	1	131699	CAD	5/16	1.00	1.5	0.250	0.375	0.358	15	5 - 6	7,590
DCS-31-200	DCS-31-080	DCS-31-200	Detent Pin - Ring Handle - 303 Stainless Steel - 5/16 in Dia X 2.00 in	1	131700	CAD	5/16	1.00	2	0.250	0.375	0.358	15	5 - 6	7,590
DCS-31-250	DCS-31-080	DCS-31-250	Detent Pin - Ring Handle - 303 Stainless Steel - 5/16 in Dia X 2.50 in	1	131701	CAD	5/16	1.00	2.5	0.250	0.375	0.358	15	5 - 6	7,590
DCS-31-300	DCS-31-080	DCS-31-300	Detent Pin - Ring Handle - 303 Stainless Steel - 5/16 in Dia X 3.00 in	1	131702	CAD	5/16	1.00	3	0.250	0.375	0.358	15	5 - 6	7,590
DCS-31-350	DCS-31-080	DCS-31-350	Detent Pin - Ring Handle - 303 Stainless Steel - 5/16 in Dia X 3.50 in	1	131703	CAD	5/16	1.00	3.5	0.250	0.375	0.358	15	5 - 6	7,590
DCS-31-400	DCS-31-080	DCS-31-400	Detent Pin - Ring Handle - 303 Stainless Steel - 5/16 in Dia X 4.00 in	1	131704	CAD	5/16	1.00	4	0.250	0.375	0.358	15	5 - 6	7,590
DCS-37-080	DCS-37-080	DCS-37-080	Detent Pin - Ring Handle - 303 Stainless Steel - 3/8 in Dia X 0.80 in	1	131705	CAD	3/8	1.00	0.8	0.250	0.500	0.426	15	8 - 10	11,020
DCS-37-100	DCS-37-080	DCS-37-100	Detent Pin - Ring Handle - 303 Stainless Steel - 3/8 in Dia X 1.00 in	1	131706	CAD	3/8	1.00	1	0.250	0.500	0.426	15	8 - 10	11,020
DCS-37-130	DCS-37-080	DCS-37-130	Detent Pin - Ring Handle - 303 Stainless Steel - 3/8 in Dia X 1.30 in	1	131707	CAD	3/8	1.00	1.3	0.250	0.500	0.426	15	8 - 10	11,020
DCS-37-150	DCS-37-080	DCS-37-150	Detent Pin - Ring Handle - 303 Stainless Steel - 3/8 in Dia X 1.50 in	1	131708	CAD	3/8	1.00	1.5	0.250	0.500	0.426	15	8 - 10	11,020
DCS-37-200	DCS-37-080	DCS-37-200	Detent Pin - Ring Handle - 303 Stainless Steel - 3/8 in Dia X 2.00 in	1	131709	CAD	3/8	1.00	2	0.250	0.500	0.426	15	8 - 10	11,020
DCS-37-250	DCS-37-080	DCS-37-250	Detent Pin - Ring Handle - 303 Stainless Steel - 3/8 in Dia X 2.50 in	1	131710	CAD	3/8	1.00	2.5	0.250	0.500	0.426	15	8 - 10	11,020
DCS-37-300	DCS-37-080	DCS-37-300	Detent Pin - Ring Handle - 303 Stainless Steel - 3/8 in Dia X 3.00 in	1	131711	CAD	3/8	1.00	3	0.250	0.500	0.426	15	8 - 10	11,020
DCS-37-350	DCS-37-080	DCS-37-350	Detent Pin - Ring Handle - 303 Stainless Steel - 3/8 in Dia X 3.50 in	1	131717	CAD	3/8	1.00	3.5	0.250	0.500	0.426	15	8 - 10	11,020
DCS-37-400	DCS-37-080	DCS-37-400	Detent Pin - Ring Handle - 303 Stainless Steel - 3/8 in Dia X 4.00 in	1	131718	CAD	3/8	1.00	4	0.250	0.500	0.426	15	8 - 10	11,020
DCS-37-450	DCS-37-080	DCS-37-450	Detent Pin - Ring Handle - 303 Stainless Steel - 3/8 in Dia X 4.50 in	1	131719	CAD	3/8	1.00	4.5	0.250	0.500	0.426	15	8 - 10	11,020
DCS-37-500	DCS-37-080	DCS-37-500	Detent Pin - Ring Handle - 303 Stainless Steel - 3/8 in Dia X 5.00 in	1	131720	CAD	3/8	1.00	5	0.250	0.500	0.426	15	8 - 10	11,020
DCS-50-100	DCS-50-100	DCS-50-100	Detent Pin - Ring Handle - 303 Stainless Steel - 1/2 in Dia X 1.00 in	1	131721	CAD	1/2	1.25	1	0.312	0.625	0.570	15	10 - 12	19,560
DCS-50-130	DCS-50-100	DCS-50-130	Detent Pin - Ring Handle - 303 Stainless Steel - 1/2 in Dia X 1.30 in	1	131722	CAD	1/2	1.25	1.3	0.312	0.625	0.570	15	10 - 12	19,560
DCS-50-150	DCS-50-100	DCS-50-150	Detent Pin - Ring Handle - 303 Stainless Steel - 1/2 in Dia X 1.50 in	1	131723	CAD	1/2	1.25	1.5	0.312	0.625	0.570	15	10 - 12	19,560
DCS-50-200	DCS-50-100	DCS-50-200	Detent Pin - Ring Handle - 303 Stainless Steel - 1/2 in Dia X 2.00 in	1	131724	CAD	1/2	1.25	2	0.312	0.625	0.570	15	10 - 12	19,560
DCS-50-250	DCS-50-100	DCS-50-250	Detent Pin - Ring Handle - 303 Stainless Steel - 1/2 in Dia X 2.50 in	1	131725	CAD	1/2	1.25	2.5	0.312	0.625	0.570	15	10 - 12	19,560
DCS-50-300	DCS-50-100	DCS-50-300	Detent Pin - Ring Handle - 303 Stainless Steel - 1/2 in Dia X 3.00 in	1	131726	CAD	1/2	1.25	3	0.312	0.625	0.570	15	10 - 12	19,560
DCS-50-350	DCS-50-100	DCS-50-350	Detent Pin - Ring Handle - 303 Stainless Steel - 1/2 in Dia X 3.50 in	1	131727	CAD	1/2	1.25	3.5	0.312	0.625	0.570	15	10 - 12	19,560
DCS-50-400	DCS-50-100	DCS-50-400	Detent Pin - Ring Handle - 303 Stainless Steel - 1/2 in Dia X 4.00 in	1	131728	CAD	1/2	1.25	4	0.312	0.625	0.570	15	10 - 12	19,560
DCS-50-450	DCS-50-100	DCS-50-450	Detent Pin - Ring Handle - 303 Stainless Steel - 1/2 in Dia X 4.50 in	1	131729	CAD	1/2	1.25	4.5	0.312	0.625	0.570	15	10 - 12	19,560
DCS-50-500	DCS-50-100	DCS-50-500	Detent Pin - Ring Handle - 303 Stainless Steel - 1/2 in Dia X 5.00 in	1	131730	CAD	1/2	1.25	5	0.312	0.625	0.570	15	10 - 12	19,560
DCS-50-550	DCS-50-100	DCS-50-550	Detent Pin - Ring Handle - 303 Stainless Steel - 1/2 in Dia X 5.50 in	1	131731	CAD	1/2	1.25	5.5	0.312	0.625	0.570	15	10 - 12	19,560
DCS-50-600	DCS-50-100	DCS-50-600	Detent Pin - Ring Handle - 303 Stainless Steel - 1/2 in Dia X 6.00 in	1	131732	CAD	1/2	1.25	6	0.312	0.625	0.570	15	10 - 12	19,560
DCS-62-200	DCS-62-200	DCS-62-200	Detent Pin - Ring Handle - 303 Stainless Steel - 5/8 in Dia X 2.00 in	1	131733	CAD	5/8	1.25	2	0.375	0.750	0.710	15	14 - 16	30,850
DCS-62-250	DCS-62-200	DCS-62-250	Detent Pin - Ring Handle - 303 Stainless Steel - 5/8 in Dia X 2.50 in	1	131734	CAD	5/8	1.25	2.5	0.375	0.750	0.710	15	14 - 16	30,850
DCS-62-300	DCS-62-200	DCS-62-300	Detent Pin - Ring Handle - 303 Stainless Steel - 5/8 in Dia X 3.00 in	1	131735	CAD	5/8	1.25	3	0.375	0.750	0.710	15	14 - 16	30,850
DCS-62-350	DCS-62-200	DCS-62-350	Detent Pin - Ring Handle - 303 Stainless Steel - 5/8 in Dia X 3.50 in	1	131736	CAD	5/8	1.25	3.5	0.375	0.750	0.710	15	14 - 16	30,850
DCS-62-400	DCS-62-200	DCS-62-400	Detent Pin - Ring Handle - 303 Stainless Steel - 5/8 in Dia X 4.00 in	1	131737	CAD	5/8	1.25	4	0.375	0.750	0.710	15	14 - 16	30,850
DCS-62-450	DCS-62-200	DCS-62-450	Detent Pin - Ring Handle - 303 Stainless Steel - 5/8 in Dia X 4.50 in	1	131738	CAD	5/8	1.25	4.5	0.375	0.750	0.710	15	14 - 16	30,850
DCS-62-500	DCS-62-200	DCS-62-500	Detent Pin - Ring Handle - 303 Stainless Steel - 5/8 in Dia X 5.00 in	1	131739	CAD	5/8	1.25	5	0.375	0.750	0.710	15	14 - 16	30,850
DCS-62-600	DCS-62-200	DCS-62-600	Detent Pin - Ring Handle - 303 Stainless Steel - 5/8 in Dia X 6.00 in	1	131740	CAD	5/8	1.25	6	0.375	0.750	0.710	15	14 - 16	30,850
DCS-75-200	DCS-75-200	DCS-75-200	Detent Pin - Ring Handle - 303 Stainless Steel - 3/4 in Dia X 2.00 in	1	131741	CAD	3/4	1.5	2	0.375	0.937	0.856	15	18 - 22	44,020
DCS-75-250	DCS-75-200	DCS-75-250	Detent Pin - Ring Handle - 303 Stainless Steel - 3/4 in Dia X 2.50 in	1	131742	CAD	3/4	1.5	2.5	0.375	0.937	0.856	15	18 - 22	44,020
DCS-75-300	DCS-75-200	DCS-75-300	Detent Pin - Ring Handle - 303 Stainless Steel - 3/4 in Dia X 3.00 in	1	131743	CAD	3/4	1.5	3	0.375	0.937	0.856	15	18 - 22	44,020
DCS-75-350	DCS-75-200	DCS-75-350	Detent Pin - Ring Handle - 303 Stainless Steel - 3/4 in Dia X 3.50 in	1	131744	CAD	3/4	1.5	3.5	0.375	0.937	0.856	15	18 - 22	44,020
DCS-75-400	DCS-75-200	DCS-75-400	Detent Pin - Ring Handle - 303 Stainless Steel - 3/4 in Dia X 4.00 in	1	131745	CAD	3/4	1.5	4	0.375	0.937	0.856	15	18 - 22	44,020
DCS-75-450	DCS-75-200	DCS-75-450	Detent Pin - Ring Handle - 303 Stainless Steel - 3/4 in Dia X 4.50 in	1	131746	CAD	3/4	1.5	4.5	0.375	0.937	0.856	15	18 - 22	44,020
DCS-75-500	DCS-75-200	DCS-75-500	Detent Pin - Ring Handle - 303 Stainless Steel - 3/4 in Dia X 5.00 in	1	131747	CAD	3/4	1.5	5	0.375	0.937	0.856	15	18 - 22	44,020
DCS-75-600	DCS-75-200	DCS-75-600	Detent Pin - Ring Handle - 303 Stainless Steel - 3/4 in Dia X 6.00 in	1	131748	CAD	3/4	1.5	6	0.375	0.937	0.856	15	18 - 22	44,020
DCS-100-200	DCS-100-200	DCS-100-200	Detent Pin - Ring Handle - 303 Stainless Steel - 1 in Dia X 2.00 in	1	131749	CAD	1	1.5	2	0.500	1.250	1.140	15	35 - 40	79,340
DCS-100-250	DCS-100-200	DCS-100-250	Detent Pin - Ring Handle - 303 Stainless Steel - 1 in Dia X 2.50 in	1	131750	CAD	1	1.5	2.5	0.500	1.250	1.140	15	35 - 40	79,340
DCS-100-300	DCS-100-200	DCS-100-300	Detent Pin - Ring Handle - 303 Stainless Steel - 1 in Dia X 3.00 in	1	131751	CAD	1	1.5	3	0.500	1.250	1.140	15	35 - 40	79,340
DCS-100-350	DCS-100-200	DCS-100-350	Detent Pin - Ring Handle - 303 Stainless Steel - 1 in Dia X 3.50 in	1	131752	CAD	1	1.5	3.5	0.500	1.250	1.140	15	35 - 40	79,340
