Grippers - Round - Tool Steel - Straight Serration - Tapped - Inch (HS-SS)

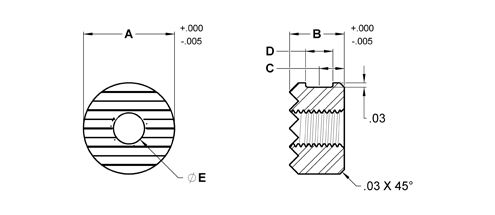

Drawing
Description
Media

Description

Made from M-2 high speed steel. Hardened to Rc 60/62 with black oxide finish. Serrated for positive holding in tough applications. Thru-hole tap. Flat on O.D. for set screw mounting.

Gripper Technical Information

HS-40-SS

Tool Steel Gripper - Round - 3/8 in Dia X 3/8 in - Extra Fine Straight

Part Details
CAD

Part Number	Model Name	SKU	Description	Brand	Product ID	CAD Model Link	0	1	2	3	4	5
HS-40-SS	HS-40-SS	HS-40-SS	Tool Steel Gripper - Round - 3/8 in Dia X 3/8 in - Extra Fine Straight	1	100678	CAD	3/8	3/8	11/64	3/16	#10-32	EF
HS-40-SS-SF	HS-40-SS	HS-40-SS-SF	Tool Steel Gripper - Round - 3/8 in Dia X 3/8 in - Super Fine Straight	1	100681	CAD	3/8	3/8	11/64	3/16	#10-32	SF
HS-405-SS	HS-40-SS	HS-405-SS	Tool Steel Gripper - Round - 3/8 in Dia X 1/2 in - Extra Fine Straight	1	100706	CAD	3/8	1/2	15/64	3/16	#10-32	EF
HS-405-SS-SF	HS-40-SS	HS-405-SS-SF	Tool Steel Gripper - Round - 3/8 in Dia X 1/2 in - Super Fine Straight	1	100719	CAD	3/8	1/2	15/64	3/16	#10-32	SF
HS-50-SS	HS-40-SS	HS-50-SS	Tool Steel Gripper - Round - 1/2 in Dia X 3/8 in - Fine Straight	1	100771	CAD	1/2	3/8	11/64	3/16	#10-32	Fine
HS-50-SS-EF	HS-40-SS	HS-50-SS-EF	Tool Steel Gripper - Round - 1/2 in Dia X 3/8 in - Extra Fine Straight	1	100774	CAD	1/2	3/8	11/64	3/16	#10-32	EF
HS-50-SS-SF	HS-40-SS	HS-50-SS-SF	Tool Steel Gripper - Round - 1/2 in Dia X 3/8 in - Straight Super Fine	1	100838	CAD	1/2	3/8	11/64	3/16	#10-32	SF
HS-51-SS	HS-40-SS	HS-51-SS	Tool Steel Gripper - Round - 1/2 in Dia X 1/2 in - Coarse Straight	1	100848	CAD	1/2	1/2	15/64	3/16	#10-32	Coarse
HS-53-SS	HS-40-SS	HS-53-SS	Tool Steel Gripper - Round - 1/2 in Dia X 1/2 in - Fine Straight	1	100909	CAD	1/2	1/2	15/64	3/16	#10-32	Fine
HS-53-SS-EF	HS-40-SS	HS-53-SS-EF	Tool Steel Gripper - Round - 1/2 in Dia X 1/2 in - Extra Fine Straight	1	100914	CAD	1/2	1/2	15/64	3/16	#10-32	EF
HS-53-SS-SF	HS-40-SS	HS-53-SS-SF	Tool Steel Gripper - Round - 1/2 in Dia X 1/2 in - Super Fine Straight	1	100920	CAD	1/2	1/2	15/64	3/16	#10-32	SF
HS-62-SS	HS-40-SS	HS-62-SS	Tool Steel Gripper - Round - 5/8 in Dia X 3/8 in - Fine Straight	1	100968	CAD	5/8	3/8	11/64	3/16	1/4-28	Fine
HS-62-SS-EF	HS-40-SS	HS-62-SS-EF	Tool Steel Gripper - Round - 5/8 in Dia X 3/8 in - Extra Fine Straight	1	100971	CAD	5/8	3/8	11/64	3/16	1/4-28	EF
HS-63-SS	HS-40-SS	HS-63-SS	Tool Steel Gripper - Round - 5/8 in Dia X 3/8 in - Coarse Straight	1	101001	CAD	5/8	3/8	11/64	3/16	1/4-28	Coarse
HS-625-SS	HS-40-SS	HS-625-SS	Tool Steel Gripper - Round - 5/8 in Dia X 1/2 in - Fine Straight	1	100994	CAD	5/8	1/2	15/64	3/16	1/4-28	Fine
HS-625-SS-EF	HS-40-SS	HS-625-SS-EF	Tool Steel Gripper - Round - 5/8 in Dia X 1/2 in - Extra Fine Straight	1	100996	CAD	5/8	1/2	15/64	3/16	1/4-28	EF
HS-635-SS	HS-40-SS	HS-635-SS	Tool Steel Gripper - Round - 5/8 in Dia X 1/2 in - Coarse Straight	1	101011	CAD	5/8	1/2	15/64	3/16	1/4-28	Coarse
HS-75-SS	HS-40-SS	HS-75-SS	Tool Steel Gripper - Round - 3/4 in Dia X 3/8 in - Fine Straight	1	101034	CAD	3/4	3/8	11/64	3/16	1/4-28	Fine
HS-75-SS-EF	HS-40-SS	HS-75-SS-EF	Tool Steel Gripper - Round - 3/4 in Dia X 3/8 in - Extra Fine Straight	1	101043	CAD	3/4	3/8	11/64	3/16	1/4-28	EF
HS-76-SS	HS-40-SS	HS-76-SS	Tool Steel Gripper - Round - 3/4 in Dia X 3/8 in - Coarse Straight	1	101081	CAD	3/4	3/8	11/64	3/16	1/4-28	Coarse
HS-755-SS	HS-40-SS	HS-755-SS	Tool Steel Gripper - Round - 3/4 in Dia X 1/2 in - Fine Straight	1	101070	CAD	3/4	1/2	15/64	3/16	1/4-28	Fine
HS-755-SS-EF	HS-40-SS	HS-755-SS-EF	Tool Steel Gripper - Round - 3/4 in Dia X 1/2 in - Extra Fine Straight	1	101072	CAD	3/4	1/2	15/64	3/16	1/4-28	EF
HS-765-SS	HS-40-SS	HS-765-SS	Tool Steel Gripper - Round - 3/4 in Dia X 1/2 in - Coarse Straight	1	101103	CAD	3/4	1/2	15/64	3/16	1/4-28	Coarse
HS-81-SS	HS-40-SS	HS-81-SS	Tool Steel Gripper - Round - 1 in Dia X 3/8 in - Coarse Straight	1	101124	CAD	1	3/8	11/64	3/16	1/4-28	Coarse
HS-82-SS	HS-40-SS	HS-82-SS	Tool Steel Gripper - Round - 1 in Dia X 3/8 in - Fine Straight	1	101154	CAD	1	3/8	11/64	3/16	1/4-28	Fine
HS-82-SS-EF	HS-40-SS	HS-82-SS-EF	Tool Steel Gripper - Round - 1 in Dia X 3/8 in - Extra Fine Straight	1	101159	CAD	1	3/8	11/64	3/16	1/4-28	EF
HS-815-SS	HS-40-SS	HS-815-SS	Tool Steel Gripper - Round - 1 in Dia X 1/2 in - Coarse Straight	1	101131	CAD	1	1/2	15/64	3/16	1/4-28	Coarse
HS-825-SS	HS-40-SS	HS-825-SS	Tool Steel Gripper - Round - 1 in Dia X 1/2 in - Fine Straight	1	101172	CAD	1	1/2	15/64	3/16	1/4-28	Fine
HS-825-SS-EF	HS-40-SS	HS-825-SS-EF	Tool Steel Gripper - Round - 1 in Dia X 1/2 in - Extra Fine Straight	1	101182	CAD	1	1/2	15/64	3/16	1/4-28	EF
