Grippers - Round - Carbide Tipped - Diamond Serration - Tapped - Inch (CT)

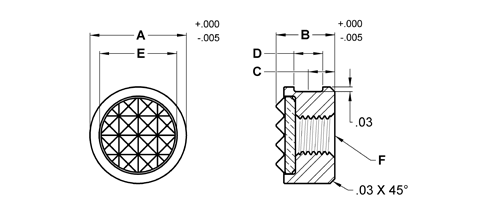

Drawing
Description
Media

Description

Constructed with a serrated carbide gripper pad brazed to a heat treated alloy steel body. Blind-hole tap for back side mounting. Flat on O.D. for set screw mounting.

Gripper Technical Information

CT-830

Carbide Tipped Gripper - Round - 3/8 in Dia X 3/8 in - Extra Fine

Part Details
CAD

Part Number	Model Name	SKU	Description	Brand	Product ID	CAD Model Link	0	1	2	3	4	5	6
CT-830	CT-830	CT-830	Carbide Tipped Gripper - Round - 3/8 in Dia X 3/8 in - Extra Fine	1	100280	CAD	3/8	3/8	11/64	3/16	5/16	#10-32	EF
CT-830-4	CT-830	CT-830-4	Carbide Tipped Gripper - Round - 3/8 in Dia X 3/8 in - 4 Point	1	100288	CAD	3/8	3/8	11/64	3/16	5/16	#10-32	4 Point
CT-835	CT-830	CT-835	Carbide Tipped Gripper - Round - 3/8 in Dia X 1/2 in - Extra Fine	1	100297	CAD	3/8	1/2	15/64	3/16	5/16	#10-32	EF
CT-835-4	CT-830	CT-835-4	Carbide Tipped Gripper - Round - 3/8 in Dia X 3/8 in - 4 Point	1	100302	CAD	3/8	1/2	15/64	3/16	5/16	#10-32	4 Point
CT-840	CT-830	CT-840	Carbide Tipped Gripper - Round - 1/2 in Dia X 1/2 in - Fine	1	100304	CAD	1/2	1/2	15/64	3/16	3/8	#10-32	Fine
CT-840-EF	CT-830	CT-840-EF	Carbide Tipped Gripper - Round - 1/2 in Dia X 1/2 in - Extra Fine	1	100311	CAD	1/2	1/2	15/64	3/16	3/8	#10-32	EF
MCT-840-EF	MCT-100	MCT-840-EF	Carbide Tipped Gripper - Round - 1/2 in Dia X 1/2 in - Extra Fine	1	100622	CAD	1/2	1/2	15/64	3/16	3/8	M6x1.0	EF
CT-840-4	CT-830	CT-840-4	Carbide Tipped Gripper - Round - 1/2 in Dia X 1/2 in - 4 Point	1	100309	CAD	1/2	1/2	15/64	3/16	3/8	#10-32	4 Point
CT-841	CT-830	CT-841	Carbide Tipped Gripper - Round - 1/2 in Dia X 3/8 in - Fine	1	100324	CAD	1/2	3/8	11/64	3/16	3/8	#10-32	Fine
CT-841-4	CT-830	CT-841-4	Carbide Tipped Gripper - Round - 1/2 in Dia X 3/8 in - 4 Point	1	100329	CAD	1/2	3/8	11/64	3/16	3/8	#10-32	4 Point
CT-841-EF	CT-830	CT-841-EF	Carbide Tipped Gripper - Round - 1/2 in Dia X 3/8 in - Extra Fine	1	100363	CAD	1/2	3/8	11/64	3/16	3/8	#10-32	EF
MCT-841-EF	MCT-100	MCT-841-EF	Carbide Tipped Gripper - Round - 1/2 in Dia X 3/8 in - Extra Fine	1	100624	CAD	1/2	3/8	11/64	3/16	3/8	M6x1.0	EF
CT-842	CT-830	CT-842	Carbide Tipped Gripper - Round - 1/2 in Dia X .651 in - Fine	1	100364	CAD	1/2	.651	19/64	3/16	3/8	#10-32	Fine
CT-842-EF	CT-830	CT-842-EF	Carbide Tipped Gripper - Round - 1/2 in Dia X .651 in - Extra Fine	1	100368	CAD	1/2	.651	19/64	3/16	3/8	#10-32	EF
CT-842-4	CT-830	CT-842-4	Carbide Tipped Gripper - Round - 1/2 in Dia X .651 in - 4 Point	1	100366	CAD	1/2	.651	19/64	3/16	3/8	#10-32	4 Point
MCT-842-EF	MCT-100	MCT-842-EF	Carbide Tipped Gripper - Round - 1/2 in Dia X .651 in - Extra Fine	1	100641	CAD	1/2	.651	19/64	3/16	3/8	M6x1.0	EF
CT-844	CT-830	CT-844	Carbide Tipped Gripper - Round - 1/2 in Dia X 1/2 in - Fine	1	100377	CAD	1/2	1/2	Keyway	–	3/8	#10-32	Fine
CT-844-EF	CT-830	CT-844-EF	Carbide Tipped Gripper - Round - 1/2 in Dia X 1/2 in - Extra Fine	1	100400	CAD	1/2	1/2	Keyway	–	3/8	#10-32	EF
CT-844-4	CT-830	CT-844-4	Carbide Tipped Gripper - Round - 1/2 in Dia X 1/2 in - 4 Point	1	100388	CAD	1/2	1/2	Keyway	–	3/8	#10-32	4 Point
CT-850	CT-830	CT-850	Carbide Tipped Gripper - Round - 5/8 in Dia X 3/8 in - Fine	1	100402	CAD	5/8	3/8	11/64	3/16	1/2	1/4-28	Fine
CT-850-EF	CT-830	CT-850-EF	Carbide Tipped Gripper - Round - 5/8 in Dia X 3/8 in - Extra Fine	1	100403	CAD	5/8	3/8	11/64	3/16	1/2	1/4-28	EF
MCT-850-EF	MCT-100	MCT-850-EF	Carbide Tipped Gripper - Round - 5/8 in Dia X 3/8 in - Extra Fine	1	100644	CAD	5/8	3/8	11/64	3/16	1/2	M6x1.0	EF
CT-855	CT-830	CT-855	Carbide Tipped Gripper - Round - 5/8 in Dia X 1/2 in - Fine	1	100412	CAD	5/8	1/2	15/64	3/16	1/2	1/4-28	Fine
CT-855-EF	CT-830	CT-855-EF	Carbide Tipped Gripper - Round - 5/8 in Dia X 1/2 in - Extra Fine	1	100413	CAD	5/8	1/2	15/64	3/16	1/2	1/4-28	EF
CT-071	CT-830	CT-071	Carbide Tipped Gripper - Round - 5/8 in Dia X 5/8 in - Fine	1	100263	CAD	5/8	5/8	Keyway	–	1/2	1/4-28	Fine
CT-071-EF	CT-830	CT-071-EF	Carbide Tipped Gripper - Round - 5/8 in Dia X 5/8 in - Extra Fine	1	100277	CAD	5/8	5/8	Keyway	–	1/2	1/4-28	EF
CT-071-4	CT-830	CT-071-4	Carbide Tipped Gripper - Round - 5/8 in Dia X 5/8 in - 4 Point	1	100267	CAD	5/8	5/8	Keyway	–	1/2	1/4-28	4 Point
CT-860	CT-830	CT-860	Carbide Tipped Gripper - Round - 3/4 in Dia X 3/8 in - Fine	1	100423	CAD	3/4	3/8	11/64	3/16	5/8	1/4-28	Fine
CT-860-EF	CT-830	CT-860-EF	Carbide Tipped Gripper - Round - 3/4 in Dia X 3/8 in - Extra Fine	1	100445	CAD	3/4	3/8	11/64	3/16	5/8	1/4-28	EF
MCT-860-EF	MCT-100	MCT-860-EF	Carbide Tipped Gripper - Round - 3/4 in Dia X 3/8 in - Extra Fine	1	100656	CAD	3/4	3/8	11/64	3/16	5/8	M6x1.0	EF
CT-862	CT-830	CT-862	Carbide Tipped Gripper - Round - 3/4 in Dia X 1/2 in - Fine	1	100447	CAD	3/4	1/2	15/64	3/16	5/8	1/4-28	Fine
CT-862-EF	CT-830	CT-862-EF	Carbide Tipped Gripper - Round - 3/4 in Dia X 1/2 in - Extra Fine	1	100465	CAD	3/4	1/2	15/64	3/16	5/8	1/4-28	EF
CT-865	CT-830	CT-865	Carbide Tipped Gripper - Round - 1 in Dia X 3/8 in - Fine	1	100488	CAD	1	3/8	11/64	3/16	3/4	1/4-28	Fine
CT-865-EF	CT-830	CT-865-EF	Carbide Tipped Gripper - Round - 1 in Dia X 3/8 in - Extra Fine	1	100490	CAD	1	3/8	11/64	3/16	3/4	1/4-28	EF
