Grippers - Round - Tool Steel - Diamond Serration - Tapped - Inch (HS)

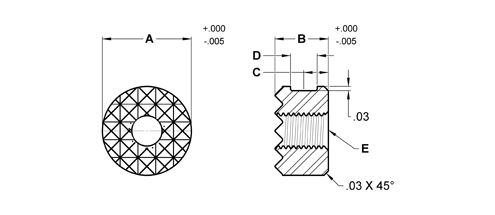

Drawing
Description
Media

Description

Made from M-2 high speed steel. Hardened to Rc 60/62 with black oxide finish. Serrated for positive holding in tough applications. Thru-hole tap. Flat on O.D. for set screw mounting.

Gripper Technical Information

HS-40

Tool Steel Gripper - Round - 3/8 in Dia X 3/8 in - Extra Fine

Part Details
CAD

Part Number	Model Name	SKU	Description	Brand	Product ID	CAD Model Link	0	1	2	3	4	5
HS-40	HS-40	HS-40	Tool Steel Gripper - Round - 3/8 in Dia X 3/8 in - Extra Fine	1	100645	CAD	3/8	3/8	11/64	3/16	#10-32	EF
HS-40-SF	HS-40	HS-40-SF	Tool Steel Gripper - Round - 3/8 in Dia X 3/8 in - Super Fine	1	100673	CAD	3/8	3/8	11/64	3/16	#10-32	SF
HS-405	HS-40	HS-405	Tool Steel Gripper - Round - 3/8 in Dia X 1/2 in - Extra Fine	1	100685	CAD	3/8	1/2	15/64	3/16	#10-32	EF
HS-405-SF	HS-40	HS-405-SF	Tool Steel Gripper - Round - 3/8 in Dia X 1/2 in - Super Fine	1	100700	CAD	3/8	1/2	15/64	3/16	#10-32	SF
HS-50	HS-40	HS-50	Tool Steel Gripper - Round - 1/2 in Dia X 3/8 in - Fine	1	100724	CAD	1/2	3/8	11/64	3/16	#10-32	Fine
HS-50-EF	HS-40	HS-50-EF	Tool Steel Gripper - Round - 1/2 in Dia X 3/8 in - Extra Fine	1	100763	CAD	1/2	3/8	11/64	3/16	#10-32	EF
HS-50-SF	HS-40	HS-50-SF	Tool Steel Gripper - Round - 1/2 in Dia X 3/8 in - Super Fine	1	100766	CAD	1/2	3/8	11/64	3/16	#10-32	SF
HS-51	HS-40	HS-51	Tool Steel Gripper - Round - 1/2 in Dia X 1/2 in - Coarse	1	100842	CAD	1/2	1/2	15/64	3/16	#10-32	Coarse
HS-52	HS-40	HS-52	Tool Steel Gripper - Round w/ Keyway - 1/2 in Dia X 1/2 in - Fine	1	100852	CAD	1/2	1/2	Keyway	–	#10-32	Fine
HS-52-EF	HS-40	HS-52-EF	Tool Steel Gripper - Round w/ Keyway - 1/2 in Dia X 1/2 in - Extra Fine	1	100855	CAD	1/2	1/2	Keyway	–	#10-32	EF
HS-53	HS-40	HS-53	Tool Steel Gripper - Round - 1/2 in Dia X 1/2 in - Fine	1	100864	CAD	1/2	1/2	15/64	3/16	#10-32	Fine
HS-53-EF	HS-40	HS-53-EF	Tool Steel Gripper - Round - 1/2 in Dia X 1/2 in - Extra Fine	1	100901	CAD	1/2	1/2	15/64	3/16	#10-32	EF
HS-53-SF	HS-40	HS-53-SF	Tool Steel Gripper - Round - 1/2 in Dia 1/2 in - Super Fine	1	100906	CAD	1/2	1/2	15/64	3/16	#10-32	SF
HS-54	HS-40	HS-54	Tool Steel Gripper - Round - 1/2 in Dia X .651 in - Fine	1	100932	CAD	1/2	.651	19/64	3/16	#10-32	Fine
HS-54-EF	HS-40	HS-54-EF	Tool Steel Gripper - Round - 1/2 in Dia X .651 in - Extra Fine	1	100936	CAD	1/2	.651	19/64	3/16	#10-32	EF
HS-62	HS-40	HS-62	Tool Steel Gripper - Round - 5/8 in Dia X 3/8 in - Fine	1	100949	CAD	5/8	3/8	11/64	3/16	1/4-28	Fine
HS-62-EF	HS-40	HS-62-EF	Tool Steel Gripper - Round - 5/8 in Dia X 3/8 in - Extra Fine	1	100961	CAD	5/8	3/8	11/64	3/16	1/4-28	EF
HS-63	HS-40	HS-63	Tool Steel Gripper - Round - 5/8 in Dia X 3/8 in - Coarse	1	100998	CAD	5/8	3/8	11/64	3/16	1/4-28	Coarse
HS-625	HS-40	HS-625	Tool Steel Gripper - Round - 5/8 in Dia X 1/2 in - Fine	1	100974	CAD	5/8	1/2	15/64	3/16	1/4-28	Fine
HS-625-EF	HS-40	HS-625-EF	Tool Steel Gripper - Round - 5/8 in Dia X 1/2 in - Extra Fine	1	100988	CAD	5/8	1/2	15/64	3/16	1/4-28	EF
HS-635	HS-40	HS-635	Tool Steel Gripper - Round - 5/8 in Dia X 1/2 in - Coarse	1	101003	CAD	5/8	1/2	15/64	3/16	1/4-28	Coarse
HS-75	HS-40	HS-75	Tool Steel Gripper - Round - 3/4 in Dia X 3/8 in - Fine	1	101015	CAD	3/4	3/8	11/64	3/16	1/4-28	Fine
HS-75-EF	HS-40	HS-75-EF	Tool Steel Gripper - Round - 3/4 in Dia X 3/8 in - Extra Fine	1	101031	CAD	3/4	3/8	11/64	3/16	1/4-28	EF
HS-76	HS-40	HS-76	Tool Steel Gripper - Round - 3/4 in Dia X 3/8 in - Coarse	1	101077	CAD	3/4	3/8	11/64	3/16	1/4-28	Coarse
HS-755	HS-40	HS-755	Tool Steel Gripper - Round - 3/4 in Dia X 1/2 in - Fine	1	101044	CAD	3/4	1/2	15/64	3/16	1/4-28	Fine
HS-755-EF	HS-40	HS-755-EF	Tool Steel Gripper - Round - 3/4 in Dia X 1/2 in - Extra Fine	1	101063	CAD	3/4	1/2	15/64	3/16	1/4-28	EF
HS-765	HS-40	HS-765	Tool Steel Gripper - Round - 3/4 in Dia X 1/2 in - Coarse	1	101086	CAD	3/4	1/2	15/64	3/16	1/4-28	Coarse
HS-81	HS-40	HS-81	Tool Steel Gripper - Round - 1 in Dia X 3/8 in - Coarse	1	101114	CAD	1	3/8	11/64	3/16	1/4-28	Coarse
HS-82	HS-40	HS-82	Tool Steel Gripper - Round - 1 in Dia X 3/8 in - Fine	1	101135	CAD	1	3/8	11/64	3/16	1/4-28	Fine
HS-82-EF	HS-40	HS-82-EF	Tool Steel Gripper - Round - 1 in Dia X 3/8 in - Extra Fine	1	101150	CAD	1	3/8	11/64	3/16	1/4-28	EF
HS-815	HS-40	HS-815	Tool Steel Gripper - Round - 1 in Dia X 1/2 in - Coarse	1	101129	CAD	1	1/2	15/64	3/16	1/4-28	Coarse
HS-825	HS-40	HS-825	Tool Steel Gripper - Round - 1 in Dia X 1/2 in - Fine	1	101163	CAD	1	1/2	15/64	3/16	1/4-28	Fine
HS-825-EF	HS-40	HS-825-EF	Tool Steel Gripper - Round - 1 in Dia X 1/2 in - Extra Fine	1	101169	CAD	1	1/2	15/64	3/16	1/4-28	EF
