Gripper Pads - Round - Carbide - Diamond Serration - Inch (CC)

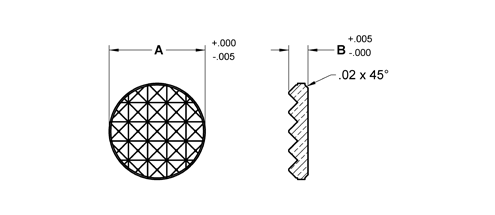

Drawing
Description
Media

Description

Made from solid carbide for high wear resistance and serrated for additional gripping strength. Can be brazed or bonded in jigs, fixtures, clamps, etc. The bottom is chamfered for clearance in mounting pocket.

Gripper Technical Information

CC-1

Carbide Gripper Pad - Circle - 1/4 in Dia X 1/8 in - Extra Fine

Part Details
CAD

Part Number	Model Name	SKU	Description	Brand	Product ID	CAD Model Link	0	1	2
CC-1	CC-1	CC-1	Carbide Gripper Pad - Circle - 1/4 in Dia X 1/8 in - Extra Fine	1	101613	CAD	1/4	1/8	EF
CC-1-SF	CC-1	CC-1-SF	Carbide Gripper Pad - Circle - 1/4 in Dia X 1/8 in - Super Fine	1	101620	CAD	1/4	1/8	SF
CC-2	CC-1	CC-2	Carbide Gripper Pad - Circle - 5/16 in Dia X 1/8 in - Extra Fine	1	101641	CAD	5/16	1/8	EF
CC-2-SF	CC-1	CC-2-SF	Carbide Gripper Pad - Circle - 5/16 in Dia X 1/8 in - Super Fine	1	101653	CAD	5/16	1/8	SF
CC-2-4	CC-1	CC-2-4	Carbide Gripper Pad - Circle - 5/16 in Dia X 1/8 in - 4 Point	1	101647	CAD	5/16	1/8	4 Point
CC-3	CC-1	CC-3	Carbide Gripper Pad - Circle - 3/8 in Dia X 1/8 in - Fine	1	101659	CAD	3/8	1/8	Fine
CC-3-EF	CC-1	CC-3-EF	Carbide Gripper Pad - Circle - 3/8 in Dia X 1/8 in - Extra Fine	1	101681	CAD	3/8	1/8	EF
CC-3-4	CC-1	CC-3-4	Carbide Gripper Pad - Circle - 3/8 in Dia X 1/8 in - 4 Point	1	101664	CAD	3/8	1/8	4 Point
CC-437	CC-1	CC-437	Carbide Gripper Pad - Circle - 7/16 in Dia X 1/8 in - Fine	1	101744	CAD	7/16	1/8	Fine
CC-437-EF	CC-1	CC-437-EF	Carbide Gripper Pad - Circle - 7/16 in Dia X 1/8 in - Extra Fine	1	101759	CAD	7/16	1/8	EF
CC-437-4	CC-1	CC-437-4	Carbide Gripper Pad - Circle - 7/16 in Dia X 5/32 in - 4 Point	1	101754	CAD	7/16	5/32	4 Point
CC-4	CC-1	CC-4	Carbide Gripper Pad - Circle - 1/2 in Dia X 1/8 in - Fine	1	101702	CAD	1/2	1/8	Fine
CC-4-EF	CC-1	CC-4-EF	Carbide Gripper Pad - Circle - 1/2 in Dia X 1/8 in - Extra Fine	1	101735	CAD	1/2	1/8	EF
CC-4-4	CC-1	CC-4-4	Carbide Gripper Pad - Circle - 1/2 in Dia X 5/32 in - 4 Point	1	101714	CAD	1/2	5/32	4 Point
CC-5	CC-1	CC-5	Carbide Gripper Pad - Circle - 5/8 in Dia X 1/8 in - Fine	1	101790	CAD	5/8	1/8	Fine
CC-5-EF	CC-1	CC-5-EF	Carbide Gripper Pad - Circle - 5/8 in Dia X 1/8 in - Extra Fine	1	101793	CAD	5/8	1/8	EF
CC-6	CC-1	CC-6	Carbide Gripper Pad - Circle - 3/4 in Dia X 1/8 in - Fine	1	101802	CAD	3/4	1/8	Fine
CC-6-EF	CC-1	CC-6-EF	Carbide Gripper Pad - Circle - 3/4 in Dia X 1/8 in - Extra Fine	1	101815	CAD	3/4	1/8	EF
CC-6X156-EF	CC-1	CC-6X156-EF	Carbide Gripper Pad - Circle - 3/4 in Dia X 5/32 in - Extra Fine	1	101838	CAD	3/4	5/32	EF
CC-8-EF	CC-1	CC-8-EF	Carbide Gripper Pad - Circle - 1 in Dia X 5/32 in - Extra Fine	1	101840	CAD	1	5/32	EF
