Gripper Pads - Rectangular - Carbide - Diamond Serration - Inch (CR)

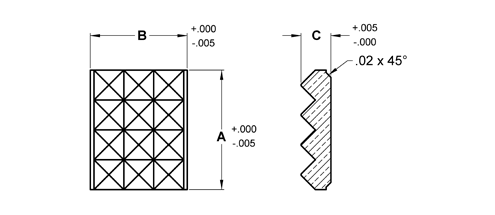

Drawing
Description
Media

Gripper Pads - Rectangular - Carbide - Diamond Serration - Inch (CR)

Description

Made from solid carbide for high wear resistance and serrated for additional gripping strength. Can be brazed or bonded in jigs, fixtures, clamps, etc. The bottom is chamfered for clearance in mounting pocket.

Gripper Technical Information

CR-2-EF

Carbide Gripper Pad - Rectangle - 1/4 in X 3/8 in X 1/8 in - Extra Fine

Part Details
CAD

Show More...

Part Number	Model Name	SKU	Description	Brand	Product ID	CAD Model Link	Price Link	0	1	2	3
CR-2-EF	CR-2-EF	CR-2-EF	Carbide Gripper Pad - Rectangle - 1/4 in X 3/8 in X 1/8 in - Extra Fine	1	100314	CAD		3/8	1/4	1/8	EF
CR-870	CR-870	CR-870	Carbide Gripper Pad - Rectangle - 1/2 in X 13/32 in X 1/8 in - Fine	1	100345	CAD		1/2	13/32	1/8	Fine
CR-870-EF	CR-870-EF	CR-870-EF	Carbide Gripper Pad - Rectangle - 1/2 in X 13/32 in X 1/8 in - Extra Fine	1	100347	CAD		1/2	13/32	1/8	EF
CR-870X156-EF	CR-870X156-EF	CR-870X156-EF	Carbide Gripper Pad - Rectangle - 1/2 in X 13/32 in X 5/32 in - Extra Fine	1	100361	CAD		1/2	13/32	5/32	EF
CR-127-4	CR-127-4	CR-127-4	Carbide Gripper Pad - Rectangle - 29/64 in X 13/32 in X 1/8 in - 4 Point	1	100298	CAD		29/64	13/32	1/8	4 Point
CR-127-12	CR-127-12	CR-127-12	Carbide Gripper Pad - Rectangle - 29/64 in X 13/32 in X 1/8 in - Fine	1	100294	CAD		29/64	13/32	1/8	Fine
CR-130-4	CR-130-4	CR-130-4	Carbide Gripper Pad - Rectangle - 29/64 in X 13/32 in X 1/8 in - Straight	1	100300	CAD		29/64	13/32	1/8	Straight
CR-145-5	CR-145-5	CR-145-5	Carbide Gripper Pad - Rectangle - 29/64 in X 13/32 in X 1/8 in - Anglular	1	100312	CAD		29/64	13/32	1/8	Angular
CR-4-EF	CR-4-EF	CR-4-EF	Carbide Gripper Pad - Rectangle - 1 in X 1/2 in X 3/16 in - Extra Fine	1	100325	CAD		1	1/2	3/16	EF
CR-4	CR-4	CR-4	Carbide Gripper Pad - Rectangle - 1 in X 1/2 in X 3/16 in - Saw Tooth	1	100320	CAD		1	1/2	3/16	Saw Tooth
CR-6	CR-6	CR-6	Carbide Gripper Pad - Rectangle - 1-1/2 in X 3/4 in X 1/4 in - Saw Tooth	1	100328	CAD		1-1/2	3/4	1/4	Saw Tooth
