DuraSoft® Stud Mount Rollers - Precision Bearing - Inch

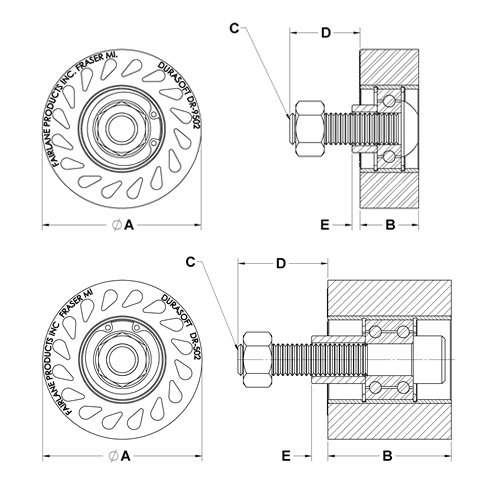

Drawing
Description
Media

Description

DuraSoft rollers have a smooth surface and are permanently bonded to a steel insert with the bearings held in place with snap rings. They come assembled with a socket head cap screw, spacer and locknut for fast easy mounting. The "teardrop" holes allow the roller to flex for firm yet nondamaging contact. Rollers are made from urethane material with hardness ranging from 35 to 95 durometer. Supplied with precision bearings.

Roller Material Information

DR-9502-35UR-CP

DuraSoft® Roller - Precision Stud Mount - 35 Dur Urethane - 2.50 in Dia X 0.92 in Wide

Part Details
CAD

Part Number	Model Name	SKU	Description	Brand	Product ID	CAD Model Link	0	1	2	3	4	5	6	7	8
DR-9502-35UR-CP	DR-9502-35UR-CP	DR-9502-35UR-CP	DuraSoft® Roller - Precision Stud Mount - 35 Dur Urethane - 2.50 in Dia X 0.92 in Wide	1	113776	CAD	2.50	.92	1/2-13 x 1.75 LHCS	1.10	.12	1	F	Urethane	35
DR-9502-60UR-CP	DR-9502-35UR-CP	DR-9502-60UR-CP	DuraSoft® Roller - Precision Stud Mount - 60 Dur Urethane - 2.50 in Dia X 0.92 in Wide	1	113796	CAD	2.50	.92	1/2-13 x 1.75 LHCS	1.10	.12	1	F	Urethane	60
DR-9502-80UR-CP	DR-9502-35UR-CP	DR-9502-80UR-CP	DuraSoft® Roller - Precision Stud Mount - 80 Dur Urethane - 2.50 in Dia X 0.92 in Wide	1	113807	CAD	2.50	.92	1/2-13 x 1.75 LHCS	1.10	.12	1	F	Urethane	80
DR-9502-95UR-CP	DR-9502-35UR-CP	DR-9502-95UR-CP	DuraSoft® Roller - Precision Stud Mount - 95 Dur Urethane - 2.50 in Dia X 0.92 in Wide	1	113816	CAD	2.50	.92	1/2-13 x 1.75 LHCS	1.10	.12	1	F	Urethane	95
DR-502-35UR-CP	DR-9502-35UR-CP	DR-502-35UR-CP	DuraSoft® Roller - Precision Stud Mount - 35 Dur Urethane - 2.50 in Dia X 1.94 in Wide	1	113424	CAD	2.50	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	F	Urethane	35
DR-502-60UR-CP	DR-9502-35UR-CP	DR-502-60UR-CP	DuraSoft® Roller - Precision Stud Mount - 60 Dur Urethane - 2.50 in Dia X 1.94 in Wide	1	113442	CAD	2.50	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	F	Urethane	60
DR-502-80UR-CP	DR-9502-35UR-CP	DR-502-80UR-CP	DuraSoft® Roller - Precision Stud Mount - 80 Dur Urethane - 2.50 in Dia X 1.94 in Wide	1	113474	CAD	2.50	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	F	Urethane	80
DR-502-95UR-CP	DR-9502-35UR-CP	DR-502-95UR-CP	DuraSoft® Roller - Precision Stud Mount - 95 Dur Urethane - 2.50 in Dia X 1.94 in Wide	1	113498	CAD	2.50	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	F	Urethane	95
DR-9754-20-CP	DR-9754-20-CP	DR-9754-20-CP	DuraSoft® Roller - Precision Stud Mount - 20 Dur Neoprene - 4.00 in Dia X 0.92 in Wide	1	113850	CAD	4.00	.92	1/2-13 x 1.75 LHCS	1.10	.12	1	F	Neoprene	20
DR-9754-35-CP	DR-9754-20-CP	DR-9754-35-CP	DuraSoft® Roller - Precision Stud Mount - 35 Dur Neoprene - 4.00 in Dia X 0.92 in Wide	1	113873	CAD	4.00	.92	1/2-13 x 1.75 LHCS	1.10	.12	1	F	Neoprene	35
DR-9754-20W-CP	DR-9754-20-CP	DR-9754-20W-CP	DuraSoft® Roller - Precision Stud Mount - 20 Dur Nitrile - 4.00 in Dia X 0.92 in Wide	1	113862	CAD	4.00	.92	1/2-13 x 1.75 LHCS	1.10	.12	1	F	Nitrile	20
DR-9754-35W-CP	DR-9754-20-CP	DR-9754-35W-CP	DuraSoft® Roller - Precision Stud Mount - 35 Dur Nitrile - 4.00 in Dia X 0.92 in Wide	1	113919	CAD	4.00	.92	1/2-13 x 1.75 LHCS	1.10	.12	1	F	Nitrile	35
DR-9754-35UR-CP	DR-9754-20-CP	DR-9754-35UR-CP	DuraSoft® Roller - Precision Stud Mount - 35 Dur Urethane - 4.00 in Dia X 0.92 in Wide	1	113903	CAD	4.00	.92	1/2-13 x 1.75 LHCS	1.10	.12	1	F	Urethane	35
DR-9754-60UR-CP	DR-9754-20-CP	DR-9754-60UR-CP	DuraSoft® Roller - Precision Stud Mount - 60 Dur Urethane - 4.00 in Dia X 0.92 in Wide	1	113931	CAD	4.00	.92	1/2-13 x 1.75 LHCS	1.10	.12	1	F	Urethane	60
DR-9754-80UR-CP	DR-9754-20-CP	DR-9754-80UR-CP	DuraSoft® Roller - Precision Stud Mount - 80 Dur Urethane - 4.00 in Dia X 0.92 in Wide	1	113950	CAD	4.00	.92	1/2-13 x 1.75 LHCS	1.10	.12	1	F	Urethane	80
DR-9754-95UR-CP	DR-9754-20-CP	DR-9754-95UR-CP	DuraSoft® Roller - Precision Stud Mount - 95 Dur Urethane - 4.00 in Dia X 0.92 in Wide	1	113955	CAD	4.00	.92	1/2-13 x 1.75 LHCS	1.10	.12	1	F	Urethane	95
DR-754-20-CP	DR-9754-20-CP	DR-754-20-CP	DuraSoft® Roller - Precision Stud Mount - 20 Dur Neoprene - 4.00 in Dia X 1.94 in Wide	1	113515	CAD	4.00	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	F	Neoprene	20
DR-754-35-CP	DR-9754-20-CP	DR-754-35-CP	DuraSoft® Roller - Precision Stud Mount - 35 Dur Neoprene - 4.00 in Dia X 1.94 in Wide	1	113629	CAD	4.00	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	F	Neoprene	35
DR-754-20W-CP	DR-9754-20-CP	DR-754-20W-CP	DuraSoft® Roller - Precision Stud Mount - 20 Dur Nitrile - 4.00 in Dia X 1.94 in Wide	1	113535	CAD	4.00	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	F	Nitrile	20
DR-754-35W-CP	DR-9754-20-CP	DR-754-35W-CP	DuraSoft® Roller - Precision Stud Mount - 35 Dur Nitrile - 4.00 in Dia X 1.94 in Wide	1	113666	CAD	4.00	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	F	Nitrile	35
DR-754-35UR-CP	DR-9754-20-CP	DR-754-35UR-CP	DuraSoft® Roller - Precision Stud Mount - 35 Dur Urethane - 4.00 in Dia X 1.94 in Wide	1	113649	CAD	4.00	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	F	Urethane	35
DR-754-60UR-CP	DR-9754-20-CP	DR-754-60UR-CP	DuraSoft® Roller - Precision Stud Mount - 60 Dur Urethane - 4.00 in Dia X 1.94 in Wide	1	113715	CAD	4.00	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	F	Urethane	60
DR-754-80UR-CP	DR-9754-20-CP	DR-754-80UR-CP	DuraSoft® Roller - Precision Stud Mount - 80 Dur Urethane - 4.00 in Dia X 1.94 in Wide	1	113738	CAD	4.00	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	F	Urethane	80
DR-754-95UR-CP	DR-9754-20-CP	DR-754-95UR-CP	DuraSoft® Roller - Precision Stud Mount - 95 Dur Urethane - 4.00 in Dia X 1.94 in Wide	1	113759	CAD	4.00	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	F	Urethane	95
