Bumpers - Round - Low Profile - Steel Core - Male Thread - Inch (RB)

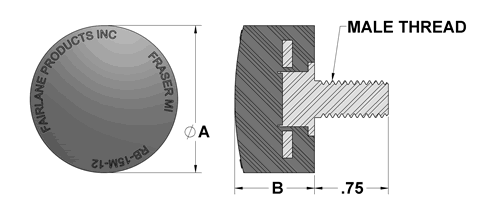

Drawing
Description
Media

Description

Used for stops, guides, bumpers and protection. Molded bumper bonded to steel stud. Neoprene offers good resistance against weather, gasoline, oil, ozone and high temperature. Urethane offers highest resistance, strength and load bearing. High elongation hardness and is resistant to ozone and oxygen.

Bumper Material Information

RB-15M-12

Low Profile Round Bumper - 50 Dur Neoprene - 3/8-16 X 1-1/2 in

Part Details
CAD

Part Number	Model Name	SKU	Description	Brand	Product ID	CAD Model Link	Price Link	0	1	2	3	4	5
RB-15M-12	RB-15M-12	RB-15M-12	Low Profile Round Bumper - 50 Dur Neoprene - 3/8-16 X 1-1/2 in	1	111245	CAD		1-1/2	13/16	50	3/8-16	3/4	Neoprene
RB-15URM-12	RB-15M-12	RB-15URM-12	Low Profile Round Bumper - 80 Dur Urethane - 3/8-16 X 3/4 in	1	111259	CAD		1-1/2	13/16	80	3/8-16	3/4	Urethane
