Grippers - Threaded Adjustable - Tool Steel - Diamond Serration - Metric (MHS)

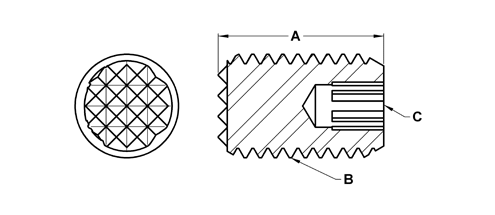

Drawing
Description
Media

Description

The threaded body allows the user to adjust the position of the gripper. The internal hex allows for adjustment from the backside. The serrated gripper provides positive holding. Made from M-2 high speed steel and hardened to Rc 55/58 with a black oxide finish.

Gripper Technical Information

MHS-10150X25

MHS Adjustable Gripper - M10 X 1.50 X 25 mm - Extra Fine

Part Details
CAD

Part Number	Model Name	SKU	Description	Brand	Product ID	CAD Model Link	0	1	2	3
MHS-10150X25	MHS-10150 X 25	MHS-10150X25	MHS Adjustable Gripper - M10 X 1.50 X 25 mm - Extra Fine	1	100448	CAD	25	M10x1.50	3	EF
MHS-10150X40	MHS-10150 X 25	MHS-10150X40	MHS Adjustable Gripper - M10 X 1.50 X 40 mm - Extra Fine	1	100454	CAD	40	M10x1.50	3	EF
MHS-12175X25	MHS-10150 X 25	MHS-12175X25	MHS Adjustable Gripper - M12 X 1.75 X 25 mm - Fine	1	100460	CAD	25	M12x1.75	5	Fine
MHS-12175X40	MHS-10150X25	MHS-12175X40	MHS Adjustable Gripper - M12 X 1.75 X 40 mm - Fine	1	100471	CAD	40	M12x1.75	5	Fine
MHS-16200X25	MHS-10150 X 25	MHS-16200X25	MHS Adjustable Gripper - M16 X 2.00 X 25 mm - Fine	1	100483	CAD	25	M16x2.00	6	Fine
MHS-16200X40	MHS-10150 X 25	MHS-16200X40	MHS Adjustable Gripper - M16 X 2.00 X 40 mm - Fine	1	100485	CAD	40	M16x2.00	6	Fine
MHS-20250X25	MHS-10150 X 25	MHS-20250X25	MHS Adjustable Gripper - M20 X 2.50 X 25 mm - Fine	1	100492	CAD	25	M20x2.50	8	Fine
MHS-20250X40	MHS-10150X25	MHS-20250X40	MHS Adjustable Gripper - M20 X 2.50 X 40 mm - Fine	1	100494	CAD	40	M20x2.50	8	Fine
