Grippers - Threaded Adjustable - Tool Steel - Diamond Serration - Inch (HS)

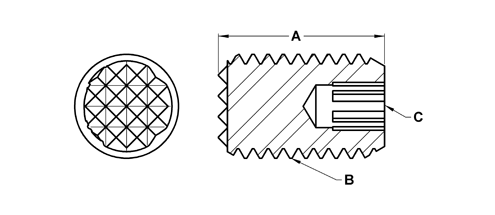

Drawing
Description
Media

Description

The threaded body allows the user to adjust the position of the gripper. The internal hex allows for adjustment from the backside. The serrated gripper provides positive holding. Made from M-2 high speed steel and hardened to Rc 55/58 with a black oxide finish.

Gripper Technical Information

HS-0370

HS Adjustable Gripper - 3/8-16 X 1/2 in - Extra Fine

Part Details
CAD

Part Number	Model Name	SKU	Description	Brand	Product ID	CAD Model Link	0	1	2	3
HS-0370	HS-0230	HS-0370	HS Adjustable Gripper - 3/8-16 X 1/2 in - Extra Fine	1	100346	CAD	1/2	3/8-16	1/8	EF
HS-0371	HS-0230	HS-0371	HS Adjustable Gripper - 3/8-16 X 1 in - Extra Fine	1	100352	CAD	1	3/8-16	1/8	EF
HS-0375	HS-0230	HS-0375	HS Adjustable Gripper - 3/8-16 X 1-1/2 in - Extra Fine	1	100385	CAD	1-1/2	3/8-16	1/8	EF
HS-0230	HS-0230	HS-0230	HS Adjustable Gripper - 3/8-24 X 1/2 in - Extra Fine	1	100315	CAD	1/2	3/8-24	1/8	EF
HS-0231	HS-0230	HS-0231	HS Adjustable Gripper - 3/8-24 X 1 in - Extra Fine	1	100337	CAD	1	3/8-24	1/8	EF
HS-0235	HS-0230	HS-0235	HS Adjustable Gripper - 3/8-24 X 1-1/2 in - Extra Fine	1	100341	CAD	1-1/2	3/8-24	1/8	EF
HS-0510	HS-0230	HS-0510	HS Adjustable Gripper - 1/2-13 X 1 in - Fine	1	100395	CAD	1	1/2-13	3/16	Fine
HS-0515	HS-0230	HS-0515	HS Adjustable Gripper - 1/2-13 X 1-1/2 in - Fine	1	100397	CAD	1-1/2	1/2-13	3/16	Fine
HS-0240	HS-0230	HS-0240	HS Adjustable Gripper - 1/2-20 X 1 in - Fine	1	100344	CAD	1	1/2-20	3/16	Fine
HS-0500	HS-0230	HS-0500	HS Adjustable Gripper - 1/2-20 X 1-1/2 in - Fine	1	100392	CAD	1-1/2	1/2-20	3/16	Fine
HS-0625X1	HS-0230	HS-0625X1	HS Adjustable Gripper - 5/8-11 X 1 in - Fine	1	100420	CAD	1	5/8-11	1/4	Fine
HS-0625	HS-0230	HS-0625	HS Adjustable Gripper - 5/8-11 X 1-1/2 in - Fine	1	100415	CAD	1-1/2	5/8-11	1/4	Fine
HS-0620X1	HS-0230	HS-0620X1	HS Adjustable Gripper - 5/8-18 X 1 in - Fine	1	100411	CAD	1	5/8-18	1/4	Fine
HS-0620	HS-0230	HS-0620	HS Adjustable Gripper - 5/8-18 X 1-1/2 in - Fine	1	100406	CAD	1-1/2	5/8-18	1/4	Fine
HS-0755X1	HS-0230	HS-0755X1	HS Adjustable Gripper - 3/4-10 X 1 in - Fine	1	100441	CAD	1	3/4-10	5/16	Fine
HS-0755	HS-0230	HS-0755	HS Adjustable Gripper - 3/4-10 X 1-1/2 in - Fine	1	100438	CAD	1-1/2	3/4-10	5/16	Fine
HS-0750X1	HS-0230	HS-0750X1	HS Adjustable Gripper - 3/4-16 X 1 in - Fine	1	100436	CAD	1	3/4-16	5/16	Fine
HS-0750	HS-0230	HS-0750	HS Adjustable Gripper - 3/4-16 X 1-1/2 in - Fine	1	100424	CAD	1-1/2	3/4-16	5/16	Fine
