Hex Head Swivots® Gripper Assembly - Flat Tool Steel Ball - Metric (MBUH-F)

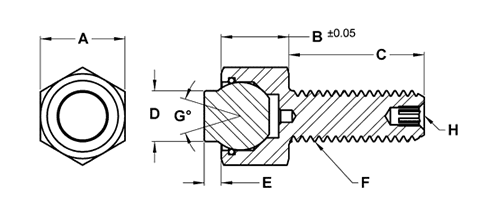

Drawing
Description
Media

Description

The replaceable flat ball swivels to allow for self-alignment on uneven surfaces. A Viton O-ring holds the ball in place while keeping contaminants out and providing smooth ball movement. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. The replaceable ball is made from M-2 high speed steel heat treated to Rc 60/62. Replacement balls and O-rings can be ordered separately.

Gripper Technical Information

MBUH-06012-F

Part Number	Model Name	SKU	Description	Brand	Product ID	CAD Model Link	0	1	2	3	4	5	6	7	8	9	10
MBUH-06012-F	MBUH-06012-F	MBUH-06012-F	Hex Design Swivot - M6 X 12 mm - Flat	1	101836	CAD	10	8	12	6	1.5	M6x1.0	28	—	7	MBUB-070-F	2,061
MBUH-06012-F-T	MBUH-06012-F	MBUH-06012-F-T	Hex Design Swivot - M6 X 12 mm - Flat - Tall	1	101844	CAD	10	8	12	6	3	M6x1.0	28	—	7	MBUB-070-F-T	2,061
MBUH-06025-F	MBUH-06012-F	MBUH-06025-F	Hex Design Swivot - M6 X 25 mm - Flat	1	101902	CAD	10	8	25	6	1.5	M6x1.0	28	—	7	MBUB-070-F	2,061
MBUH-06025-F-T	MBUH-06012-F	MBUH-06025-F-T	Hex Design Swivot - M6 X 25 mm - Flat - Tall	1	101906	CAD	10	8	25	6	3	M6x1.0	28	—	7	MBUB-070-F-T	2,061
MBUH-06040-F	MBUH-06012-F	MBUH-06040-F	Hex Design Swivot - M6 X 40 mm - Flat	1	101969	CAD	10	8	40	6	1.5	M6x1.0	28	—	7	MBUB-070-F	2,061
MBUH-06040-F-T	MBUH-06012-F	MBUH-06040-F-T	Hex Design Swivot - M6 X 40 mm - Flat - Tall	1	101971	CAD	10	8	40	6	3	M6x1.0	28	—	7	MBUB-070-F-T	2,061
MBUH-08012-F	MBUH-06012-F	MBUH-08012-F	Hex Design Swivot - M8 X 12 mm - Flat	1	102038	CAD	13	11.5	12	8.5	1.5	M8x1.25	24	—	10	MBUB-100-F	3,450
MBUH-08012-F-T	MBUH-06012-F	MBUH-08012-F-T	Hex Design Swivot - M8 X 12 mm - Flat - Tall	1	102045	CAD	13	11.5	12	8.5	3	M8x1.25	24	—	10	MBUB-100-F-T	3,450
MBUH-08025-F	MBUH-06012-F	MBUH-08025-F	Hex Design Swivot - M8 X 25 mm - Flat	1	102108	CAD	13	11.5	25	8.5	1.5	M8x1.25	24	—	10	MBUB-100-F	3,450
MBUH-08025-F-T	MBUH-06012-F	MBUH-08025-F-T	Hex Design Swivot - M8 X 25 mm - Flat - Tall	1	102120	CAD	13	11.5	25	8.5	3	M8x1.25	24	—	10	MBUB-100-F-T	3,450
MBUH-08040-F	MBUH-06012-F	MBUH-08040-F	Hex Design Swivot - M8 X 40 mm - Flat	1	102217	CAD	13	11.5	40	8.5	1.5	M8x1.25	24	—	10	MBUB-100-F	3,450
MBUH-08040-F-T	MBUH-06012-F	MBUH-08040-F-T	Hex Design Swivot - M8 X 40 mm - Flat - Tall	1	102235	CAD	13	11.5	40	8.5	3	M8x1.25	24	—	10	MBUB-100-F-T	3,450
MBUH-10015-F	MBUH-06012-F	MBUH-10015-F	Hex Design Swivot - M10 X 15 mm - Flat	1	102309	CAD	17	13	15	10	4	M10x1.5	42	3	13	MBUB-130-F	4,194
MBUH-10015-F-T	MBUH-06012-F	MBUH-10015-F-T	Hex Design Swivot - M10 X 15 mm - Flat - Tall	1	102312	CAD	17	13	15	10	6	M10x1.5	42	3	13	MBUB-130-F-T	4,194
MBUH-10030-F	MBUH-06012-F	MBUH-10030-F	Hex Design Swivot - M10 X 30 mm - Flat	1	102434	CAD	17	13	30	10	4	M10x1.5	42	3	13	MBUB-130-F	4,194
MBUH-10030-F-T	MBUH-06012-F	MBUH-10030-F-T	Hex Design Swivot - M10 X 30 mm - Flat - Tall	1	102435	CAD	17	13	30	10	6	M10x1.5	42	3	13	MBUB-130-F-T	4,194
MBUH-10050-F	MBUH-06012-F	MBUH-10050-F	Hex Design Swivot - M10 X 50 mm - Flat	1	102501	CAD	17	13	50	10	4	M10x1.5	42	3	13	MBUB-130-F	4,194
MBUH-10050-F-T	MBUH-06012-F	MBUH-10050-F-T	Hex Design Swivot - M10 X 50 mm - Flat - Tall	1	102505	CAD	17	13	50	10	6	M10x1.5	42	3	13	MBUB-130-F-T	4,194
MBUH-12020-F	MBUH-06012-F	MBUH-12020-F	Hex Design Swivot - M12 X 20 mm - Flat	1	102606	CAD	19	15	20	12	4	M12x1.75	45	5	15	MBUB-150-F	6,627
MBUH-12020-F-T	MBUH-06012-F	MBUH-12020-F-T	Hex Design Swivot - M12 X 20 mm - Flat - Tall	1	102609	CAD	19	15	20	12	6	M12x1.75	45	5	15	MBUB-150-F-T	6,627
MBUH-12040-F	MBUH-06012-F	MBUH-12040-F	Hex Design Swivot - M12 X 40 mm - Flat	1	102680	CAD	19	15	40	12	4	M12x1.75	45	5	15	MBUB-150-F	6,627
MBUH-12040-F-T	MBUH-06012-F	MBUH-12040-F-T	Hex Design Swivot - M12 X 40 mm - Flat - Tall	1	102687	CAD	19	15	40	12	6	M12x1.75	45	5	15	MBUB-150-F-T	6,627
MBUH-12060-F	MBUH-06012-F	MBUH-12060-F	Hex Design Swivot - M12 X 60 mm - Flat	1	102761	CAD	19	15	60	12	4	M12x1.75	45	5	15	MBUB-150-F	6,627
MBUH-12060-F-T	MBUH-06012-F	MBUH-12060-F-T	Hex Design Swivot - M12 X 60 mm - Flat - Tall	1	102764	CAD	19	15	60	12	6	M12x1.75	45	5	15	MBUB-150-F-T	6,627
MBUH-16025-F	MBUH-06012-F	MBUH-16025-F	Hex Design Swivot - M16 X 25 mm - Flat	1	102860	CAD	24	19	25	16	4	M16x2.0	40	6	20	MBUB-200-F	11,183
MBUH-16050-F	MBUH-06012-F	MBUH-16050-F	Hex Design Swivot - M16 X 50 mm - Flat	1	102929	CAD	24	19	50	16	4	M16x2.0	40	6	20	MBUB-200-F	11,183
MBUH-16080	MBUH-06012-F	MBUH-16080	Hex Design Swivot - M16 X 80 mm - Flat	1	102968	CAD	24	19	80	16	4	20	40	6	20	16	11,193
MBUH-16080-F	MBUH-06012-F	MBUH-16080-F	Hex Design Swivot - M16 X 80 mm - Flat	1	102985	CAD	24	19	80	16	4	M16x2.0	40	6	20	MBUB-200-F	11,183
