Base Design Swivots® Gripper Assembly - Flat Tool Steel Ball - Inch (BBU-F)

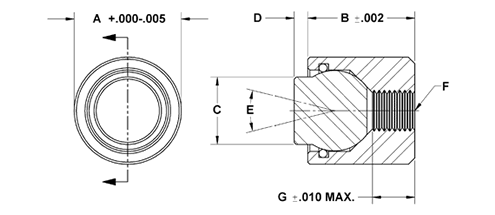

Drawing
Description
Media

Description

Cylindrical body allows for installation in tight areas. The housing is tapped for backside fastening. The replaceable flat ball swivels to allow for self-alignment on uneven surfaces. A Viton O-ring holds the ball in place while keeping contaminants out and providing smooth ball movement. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. The replaceable ball is made from M-2 high speed steel heat treated to Rc 60/62. Replacement balls and O-rings can be ordered separately.

Gripper Technical Information

BBU-100-F

Base Design Swivot - 3/8 in Dia X 5/16 in - Flat

Part Details
CAD

Part Number	Model Name	SKU	Description	Brand	Product ID	CAD Model Link	0	1	2	3	4	5	6	7	8	9
BBU-100-F	BBU-100-F	BBU-100-F	Base Design Swivot - 3/8 in Dia X 5/16 in - Flat	1	109185	CAD	3/8	5/16	5/32	1/16	28	#4-40	1/4	3/16	BUB-187-F	1,835
BBU-105-F	BBU-100-F	BBU-105-F	Base Design Swivot - 3/8 in Dia X 7/16 in - Flat	1	101215	CAD	3/8	7/16	5/32	1/16	28	#4-40	5/16	3/16	BUB-187-F	1,835
BBU-107-F	BBU-100-F	BBU-107-F	Base Design Swivot - 3/8 in Dia X 11/16 in - Flat	1	101267	CAD	3/8	11/16	5/32	1/16	28	#4-40	5/16	3/16	BUB-187-F	1,835
BBU-200-F	BBU-100-F	BBU-200-F	Base Design Swivot - 7/16 in Dia X 3/8 in - Flat	1	101352	CAD	7/16	3/8	1/4	1/16	28	#8-32	5/32	9/32	BUB-200-F	3,339
BBU-200-F-T	BBU-100-F	BBU-200-F-T	Base Design Swivot - 7/16 in Dia X 3/8 in - Flat - Tall	1	101360	CAD	7/16	3/8	1/4	1/8	28	#8-32	5/32	9/32	BUB-200-F-T	3,339
BBU-201-F	BBU-100-F	BBU-201-F	Base Design Swivot - 7/16 in Dia X 15/16 in - Flat	1	101423	CAD	7/16	15/16	1/4	1/16	28	#8-32	1/2	9/32	BUB-200-F	3,339
BBU-201-F-T	BBU-100-F	BBU-201-F-T	Base Design Swivot - 7/16 in Dia X 15/16 in - Flat - Tall	1	101426	CAD	7/16	15/16	1/4	1/8	28	#8-32	1/2	9/32	BUB-200-F-T	3,339
BBU-300-F	BBU-100-F	BBU-300-F	Base Design Swivot - 1/2 in Dia X 1/2 in - Flat	1	101473	CAD	1/2	1/2	5/16	1/16	28	#10-32	5/32	3/8	BUB-300-F	4,697
BBU-300-F-T	BBU-100-F	BBU-300-F-T	Base Design Swivot - 1/2 in Dia X 1/2 in - Flat - Tall	1	101478	CAD	1/2	1/2	5/16	1/8	28	#10-32	5/32	3/8	BUB-300-F-T	4,697
BBU-301-F	BBU-100-F	BBU-301-F	Base Design Swivot - 1/2 in Dia X 1 in - Flat	1	101532	CAD	1/2	1	5/16	1/16	28	#10-32	5/8	3/8	BUB-300-F	4,697
BBU-301-F-T	BBU-100-F	BBU-301-F-T	Base Design Swivot - 1/2 in Dia X 1 in - Flat - Tall	1	101551	CAD	1/2	1	5/16	1/8	28	#10-32	5/8	3/8	BUB-300-F-T	4,697
BBU-500-F	BBU-100-F	BBU-500-F	Base Design Swivot - 5/8 in Dia X 3/4 in - Flat	1	101600	CAD	5/8	3/4	3/8	1/8	40	1/4-28	1/4	1/2	BUB-500-F	5,849
BBU-500-F-T	BBU-100-F	BBU-500-F-T	Base Design Swivot - 5/8 in Dia X 3/4 in - Flat - Tall	1	101604	CAD	5/8	3/4	3/8	1/4	40	1/4-28	1/4	1/2	BUB-500-F-T	5,849
BBU-600-F	BBU-100-F	BBU-600-F	Base Design Swivot - 13/15 in Dia X 7/8 in - Flat	1	101674	CAD	13/16	7/8	1/2	1/8	40	5/16-24	11/32	5/8	BUB-600-F	10,925
BBU-600-F-T	BBU-100-F	BBU-600-F-T	Base Design Swivot - 13/16 in Dia X 7/8 in - Flat - Tall	1	101678	CAD	13/16	7/8	1/2	1/4	40	5/16-24	11/32	5/8	BUB-600-F-T	10,925
BBU-700-F	BBU-100-F	BBU-700-F	Base Design Swivot - 15/16 in Dia X 7/8 in - Flat	1	101745	CAD	15/16	7/8	5/8	1/8	34	3/8-24	9/32	3/4	BUB-700-F	13,325
BBU-700-F-T	BBU-100-F	BBU-700-F-T	Base Design Swivot - 15/16 in Dia X 7/8 in - Flat - Tall	1	101749	CAD	15/16	7/8	5/8	1/4	34	3/8-24	9/32	3/4	BUB-700-F-T	13,325
