Hex Head Swivots® Gripper Assembly - Flat Tool Steel Ball - Inch (BUH-F)

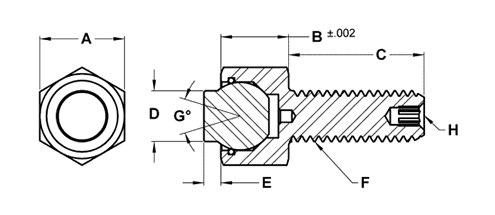

Drawing
Description
Media

Description

The replaceable flat ball swivels to allow for self-alignment on uneven surfaces. A Viton O-ring holds the ball in place while keeping contaminants out and providing smooth ball movement. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. The replaceable ball is made from M-2 high speed steel heat treated to Rc 60/62. Replacement balls and O-rings can be ordered separately.

Gripper Technical Information

BUH-0124-F

Hex Design Swivot - 10-24 X 1/2 in - Flat

Part Details
CAD

Part Number	Model Name	SKU	Description	Brand	Product ID	CAD Model Link	0	1	2	3	4	5	6	7	8	9	10
BUH-0124-F	BUH-0124-F	BUH-0124-F	Hex Design Swivot - 10-24 X 1/2 in - Flat	1	101534	CAD	3/8	1/4	1/2	5/32	1/16	#10-24	28	—	3/16	BUB-187-F	1,176
BUH-0124X1-F	BUH-0124-F	BUH-0124X1-F	Hex Design Swivot - 10-24 X 1 in - Flat	1	101605	CAD	3/8	1/4	1	5/32	1/16	#10-24	28	—	3/16	BUB-187-F	1,176
BUH-0132-F	BUH-0124-F	BUH-0132-F	Hex Design Swivot - 10-32 X 1/2 in - Flat	1	101646	CAD	3/8	1/4	1/2	5/32	1/16	#10-32	28	—	3/16	BUB-187-F	1,176
BUH-0132X1-F	BUH-0124-F	BUH-0132X1-F	Hex Design Swivot - 10-32 X 1 in - Flat	1	101708	CAD	3/8	1/4	1	5/32	1/16	#10-32	28	—	3/16	BUB-187-F	1,176
BUH-0250-F	BUH-0124-F	BUH-0250-F	Hex Design Swivot - 1/4-20 X 1/2 in - Flat	1	102230	CAD	7/16	5/16	1/2	1/4	1/16	1/4-20	28	—	9/32	BUB-200-F	2,441
BUH-0250-F-T	BUH-0124-F	BUH-0250-F-T	Hex Design Swivot - 1/4-20 X 1/2 in - Flat - Tall	1	102232	CAD	7/16	5/16	1/2	1/4	1/8	1/4-20	28	—	9/32	BUB-200-F-T	2,441
BUH-0251-F	BUH-0124-F	BUH-0251-F	Hex Design Swivot - 1/4-20 X 1 in - Flat	1	102282	CAD	7/16	5/16	1	1/4	1/16	1/4-20	28	—	9/32	BUB-200-F	2,441
BUH-0251-F-T	BUH-0124-F	BUH-0251-F-T	Hex Design Swivot - 1/4-20 X 1 in - Flat - Tall	1	102284	CAD	7/16	5/16	1	1/4	1/8	1/4-20	28	—	9/32	BUB-200-F-T	2,441
BUH-0251X1.5-F	BUH-0124-F	BUH-0251X1.5-F	Hex Design Swivot - 1/4-20 X 1-1/2 in - Flat	1	102369	CAD	7/16	5/16	1-1/2	1/4	1/16	1/4-20	28	—	9/32	BUB-200-F	2,441
BUH-0251X1.5-F-T	BUH-0124-F	BUH-0251X1.5-F-T	Hex Design Swivot - 1/4-20 X 1-1/2 in - Flat - Tall	1	102370	CAD	7/16	5/16	1-1/2	1/4	1/8	1/4-20	28	—	9/32	BUB-200-F-T	2,441
BUH-0280-F	BUH-0124-F	BUH-0280-F	Hex Design Swivot - 1/4-28 X 1/2 in - Flat	1	102417	CAD	7/16	5/16	1/2	1/4	1/16	1/4-28	28	—	9/32	BUB-200-F	2,441
BUH-0280-F-T	BUH-0124-F	BUH-0280-F-T	Hex Design Swivot - 1/4-28 X 1/2 in - Flat - Tall	1	102422	CAD	7/16	5/16	1/2	1/4	1/8	1/4-28	28	—	9/32	BUB-200-F-T	2,441
BUH-0281-F	BUH-0124-F	BUH-0281-F	Hex Design Swivot - 1/4-28 X 1 in - Flat	1	102493	CAD	7/16	5/16	1	1/4	1/16	1/4-28	28	—	9/32	BUB-200-F	2,441
BUH-0281-F-T	BUH-0124-F	BUH-0281-F-T	Hex Design Swivot - 1/4-28 X 1 in - Flat - Tall	1	102495	CAD	7/16	5/16	1	1/4	1/8	1/4-28	28	—	9/32	BUB-200-F-T	2,441
BUH-0281X1.5-F	BUH-0124-F	BUH-0281X1.5-F	Hex Design Swivot - 1/4-28 X 1-1/2 in - Flat	1	102554	CAD	7/16	5/16	1-1/2	1/4	1/16	1/4-28	28	—	9/32	BUB-200-F	2,441
BUH-0281X1.5-F-T	BUH-0124-F	BUH-0281X1.5-F-T	Hex Design Swivot - 1/4-28 X 1-1/2 in - Flat - Tall	1	102578	CAD	7/16	5/16	1-1/2	1/4	1/8	1/4-28	28	—	9/32	BUB-200-F-T	2,441
BUH-0310-F	BUH-0124-F	BUH-0310-F	Hex Design Swivot - 5/16-18 X 1/2 in - Flat	1	102686	CAD	1/2	3/8	1/2	5/16	1/16	5/16-18	28	—	3/8	BUB-300-F	2,792
BUH-0310-F-T	BUH-0124-F	BUH-0310-F-T	Hex Design Swivot - 5/16-18 X 1/2 in - Flat - Tall	1	102702	CAD	1/2	3/8	1/2	5/16	1/8	5/16-18	28	—	3/8	BUB-300-F-T	2,792
BUH-0312-F	BUH-0124-F	BUH-0312-F	Hex Design Swivot - 5/16-18 X 1 in - Flat	1	102830	CAD	1/2	3/8	1	5/16	1/16	5/16-18	28	—	3/8	BUB-300-F	2,792
BUH-0312-F-T	BUH-0124-F	BUH-0312-F-T	Hex Design Swivot - 5/16-18 X 1 in - Flat - Tall	1	102838	CAD	1/2	3/8	1	5/16	1/8	5/16-18	28	—	3/8	BUB-300-F-T	2,792
BUH-0312X1.5-F	BUH-0124-F	BUH-0312X1.5-F	Hex Design Swivot - 5/16-18 X 1-1/2 in - Flat	1	101562	CAD	1/2	3/8	1-1/2	5/16	1/16	5/16-18	28	—	3/8	BUB-300-F	2,792
BUH-0312X1.5-F-T	BUH-0124-F	BUH-0312X1.5-F-T	Hex Design Swivot - 5/16-18 X 1-1/2 in - Flat - Tall	1	101574	CAD	1/2	3/8	1-1/2	5/16	1/8	5/16-18	28	—	3/8	BUB-300-F-T	2,792
BUH-0320-F	BUH-0124-F	BUH-0320-F	Hex Design Swivot - 5/16-24 X 1/2 in - Flat	1	101672	CAD	1/2	3/8	1/2	5/16	1/16	5/16-24	28	—	3/8	BUB-300-F	2,792
BUH-0320-F-T	BUH-0124-F	BUH-0320-F-T	Hex Design Swivot - 5/16-24 X 1/2 in - Flat - Tall	1	101677	CAD	1/2	3/8	1/2	5/16	1/8	5/16-24	28	—	3/8	BUB-300-F-T	2,792
BUH-0321-F	BUH-0124-F	BUH-0321-F	Hex Design Swivot - 5/16-24 X 1 in - Flat	1	101784	CAD	1/2	3/8	1	5/16	1/16	5/16-24	28	—	3/8	BUB-300-F	2,792
BUH-0321-F-T	BUH-0124-F	BUH-0321-F-T	Hex Design Swivot - 5/16-24 X 1 in - Flat - Tall	1	101792	CAD	1/2	3/8	1	5/16	1/8	5/16-24	28	—	3/8	BUB-300-F-T	2,792
BUH-0321X1.5-F	BUH-0124-F	BUH-0321X1.5-F	Hex Design Swivot - 5/16-24 X 1-1/2 in - Flat	1	101899	CAD	1/2	3/8	1-1/2	5/16	1/16	5/16-24	28	—	3/8	BUB-300-F	2,792
BUH-0321X1.5-F-T	BUH-0124-F	BUH-0321X1.5-F-T	Hex Design Swivot - 5/16-24 X 1-1/2 in - Flat - Tall	1	101901	CAD	1/2	3/8	1-1/2	5/16	1/8	5/16-24	28	—	3/8	BUB-300-F-T	2,792
BUH-0370-F	BUH-0124-F	BUH-0370-F	Hex Design Swivot - 3/8-16 X 1/2 in - Flat	1	101988	CAD	5/8	1/2	1/2	3/8	1/8	3/8-16	40	1/8	1/2	BUB-500-F	3,446
BUH-0370-F-T	BUH-0124-F	BUH-0370-F-T	Hex Design Swivot - 3/8-16 X 1/2 in - Flat - Tall	1	102003	CAD	5/8	1/2	1/2	3/8	1/4	3/8-16	40	1/8	1/2	BUB-500-F-T	3,446
BUH-0375-F	BUH-0124-F	BUH-0375-F	Hex Design Swivot - 3/8-16 X 1 in - Flat	1	102090	CAD	5/8	1/2	1	3/8	1/8	3/8-16	40	1/8	1/2	BUB-500-F	3,446
BUH-0375-F-T	BUH-0124-F	BUH-0375-F-T	Hex Design Swivot - 3/8-16 X 1 in - Flat - Tall	1	102094	CAD	5/8	1/2	1	3/8	1/4	3/8-16	40	1/8	1/2	BUB-500-F-T	3,446
BUH-0375X1.5-F	BUH-0124-F	BUH-0375X1.5-F	Hex Design Swivot - 3/8-16 X 1-1/2 in - Flat	1	102191	CAD	5/8	1/2	1-1/2	3/8	1/8	3/8-16	40	1/8	1/2	BUB-500-F	3,446
BUH-0375X1.5-F-T	BUH-0124-F	BUH-0375X1.5-F-T	Hex Design Swivot - 3/8-16 X 1-1/2 in - Flat - Tall	1	102228	CAD	5/8	1/2	1-1/2	3/8	1/4	3/8-16	40	1/8	1/2	BUB-500-F-T	3,446
BUH-0230-F	BUH-0124-F	BUH-0230-F	Hex Design Swivot - 3/8-24 X 1/2 in - Flat	1	101795	CAD	5/8	1/2	1/2	3/8	1/8	3/8-24	40	1/8	1/2	BUB-500-F	3,446
BUH-0230-F-T	BUH-0124-F	BUH-0230-F-T	Hex Design Swivot - 3/8-24 X 1/2 in - Flat - Tall	1	101797	CAD	5/8	1/2	1/2	3/8	1/4	3/8-24	40	1/8	1/2	BUB-500-F-T	3,446
BUH-0231-F	BUH-0124-F	BUH-0231-F	Hex Design Swivot - 3/8-24 X 1 in - Flat	1	101914	CAD	5/8	1/2	1	3/8	1/8	3/8-24	40	1/8	1/2	BUB-500-F	3,446
BUH-0231-F-T	BUH-0124-F	BUH-0231-F-T	Hex Design Swivot - 3/8-24 X 1 in - Flat - Tall	1	101917	CAD	5/8	1/2	1	3/8	1/4	3/8-24	40	1/8	1/2	BUB-500-F-T	3,446
BUH-0231X1.5-F	BUH-0124-F	BUH-0231X1.5-F	Hex Design Swivot - 3/8-24 X 1-1/2 in - Flat	1	102014	CAD	5/8	1/2	1-1/2	3/8	1/8	3/8-24	40	1/8	1/2	BUB-500-F	3,446
BUH-0231X1.5-F-T	BUH-0124-F	BUH-0231X1.5-F-T	Hex Design Swivot - 3/8-24 X 1-1/2 in - Flat - Tall	1	102027	CAD	5/8	1/2	1-1/2	3/8	1/4	3/8-24	40	1/8	1/2	BUB-500-F-T	3,446
BUH-0510-F	BUH-0124-F	BUH-0510-F	Hex Design Swivot - 1/2-13 X 1 in - Flat	1	102533	CAD	13/16	5/8	1	1/2	1/8	1/2-13	40	3/16	5/8	BUB-600-F	5,937
BUH-0510-F-T	BUH-0124-F	BUH-0510-F-T	Hex Design Swivot - 1/2-13 X 1 in - Flat - Tall	1	102545	CAD	13/16	5/8	1	1/2	1/4	1/2-13	40	3/16	5/8	BUB-600-F-T	5,937
BUH-0515-F	BUH-0124-F	BUH-0515-F	Hex Design Swivot - 1/2-13 X 1-1/2 in - Flat	1	102637	CAD	13/16	5/8	1-1/2	1/2	1/8	1/2-13	40	3/16	5/8	BUB-600-F	5,937
BUH-0515-F-T	BUH-0124-F	BUH-0515-F-T	Hex Design Swivot - 1/2-13 X 1-1/2 in - Flat - Tall	1	102639	CAD	13/16	5/8	1-1/2	1/2	1/4	1/2-13	40	3/16	5/8	BUB-600-F-T	5,937
BUH-0240-F	BUH-0124-F	BUH-0240-F	Hex Design Swivot - 1/2-20 X 1 in - Flat	1	102169	CAD	13/16	5/8	1	1/2	1/8	1/2-20	40	3/16	5/8	BUB-600-F	7,178
BUH-0240-F-T	BUH-0124-F	BUH-0240-F-T	Hex Design Swivot - 1/2-20 X 1 in - Flat - Tall	1	102172	CAD	13/16	5/8	1	1/2	1/4	1/2-20	40	3/16	5/8	BUB-600-F-T	7,178
BUH-0500-F	BUH-0124-F	BUH-0500-F	Hex Design Swivot - 1/2-20 X 1-1/2 in - Flat	1	102386	CAD	13/16	5/8	1-1/2	1/2	1/8	1/2-20	40	3/16	5/8	BUB-600-F	7,178
BUH-0500-F-T	BUH-0124-F	BUH-0500-F-T	Hex Design Swivot - 1/2-20 X 1-1/2 in - Flat - Tall	1	102388	CAD	13/16	5/8	1-1/2	1/2	1/4	1/2-20	40	3/16	5/8	BUB-600-F-T	7,178
BUH-0625-F	BUH-0124-F	BUH-0625-F	Hex Design Swivot - 5/8-11 X 1 in - Flat	1	102913	CAD	15/16	11/16	1	5/8	1/8	5/8-11	34	1/4	3/4	BUB-700-F	9,932
BUH-0625-F-T	BUH-0124-F	BUH-0625-F-T	Hex Design Swivot - 5/8-11 X 1 in - Flat - Tall	1	102920	CAD	15/16	11/16	1	5/8	1/4	5/8-11	34	1/4	3/4	BUB-700-F-T	9,932
BUH-0625X2-F	BUH-0124-F	BUH-0625X2-F	Hex Design Swivot - 5/8-11 X 2 in - Flat	1	103061	CAD	15/16	11/16	2	5/8	1/8	5/8-11	34	1/4	3/4	BUB-700-F	9,932
BUH-0625X2-F-T	BUH-0124-F	BUH-0625X2-F-T	Hex Design Swivot - 5/8-11 X 2 in - Flat - Tall	1	103063	CAD	15/16	11/16	2	5/8	1/4	5/8-11	34	1/4	3/4	BUB-700-F-T	9,932
BUH-0620-F	BUH-0124-F	BUH-0620-F	Hex Design Swivot - 5/8-18 X 1 in - Flat	1	102763	CAD	15/16	11/16	1	5/8	1/8	5/8-18	34	1/4	3/4	BUB-700-F	11,874
BUH-0620-F-T	BUH-0124-F	BUH-0620-F-T	Hex Design Swivot - 5/8-18 X 1 in - Flat - Tall	1	102776	CAD	15/16	11/16	1	5/8	1/4	5/8-18	34	1/4	3/4	BUB-700-F-T	11,874
BUH-0620X2-F	BUH-0124-F	BUH-0620X2-F	Hex Design Swivot - 5/8-18 X 2 in - Flat	1	102833	CAD	15/16	11/16	2	5/8	1/8	5/8-18	34	1/4	3/4	BUB-700-F	11,874
BUH-0620X2-F-T	BUH-0124-F	BUH-0620X2-F-T	Hex Design Swivot - 5/8-18 X 2 in - Flat - Tall	1	102844	CAD	15/16	11/16	2	5/8	1/4	5/8-18	34	1/4	3/4	BUB-700-F-T	11,874
